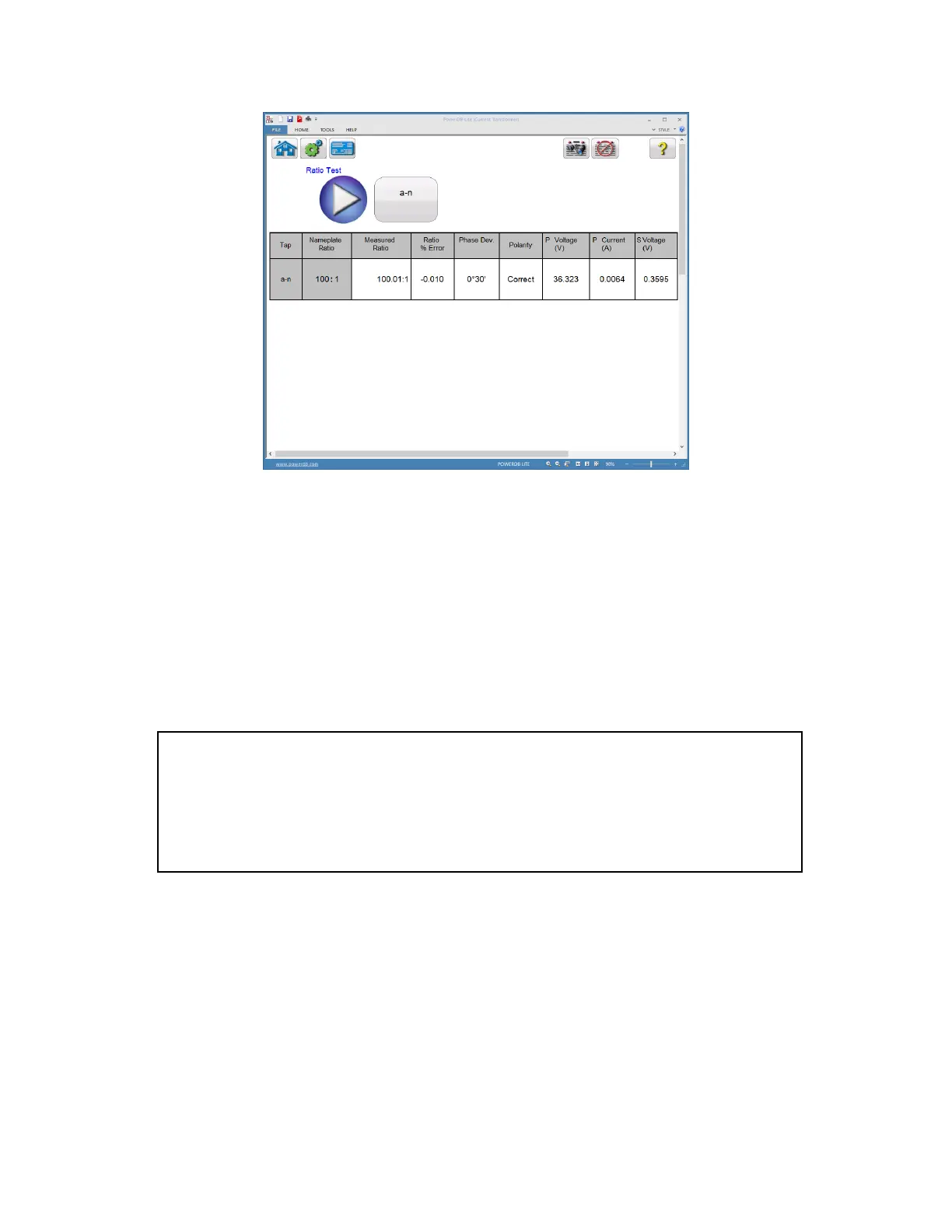

Figure 107 VT Ratio Test Results

7.3 Testing Voltage Transformer – Saturation/Excitation Test

Refer to the safety instructions first before use of the equipment.

1. Verify the Power ON/OFF switch is OFF. Power the test set from a suitable source

of power (95-125 or 195-265 V50/60 Hz).

2. Connect the ground wing nut to a suitable ground.

3. Connect the test set secondary output binding posts X1 and X5 to secondary of the current

transformer on the desired tap. Observe the polarity marks on the VT (X1 on test set is polarity

terminal).

WARNING

There is always the possibility of voltages being induced at the terminals of a test

specimen because of proximity to high voltage energized lines. A residual static voltage

charge may also be present at these terminals. Ground each terminal to be tested with a

safety ground stick, before making connections.
