134

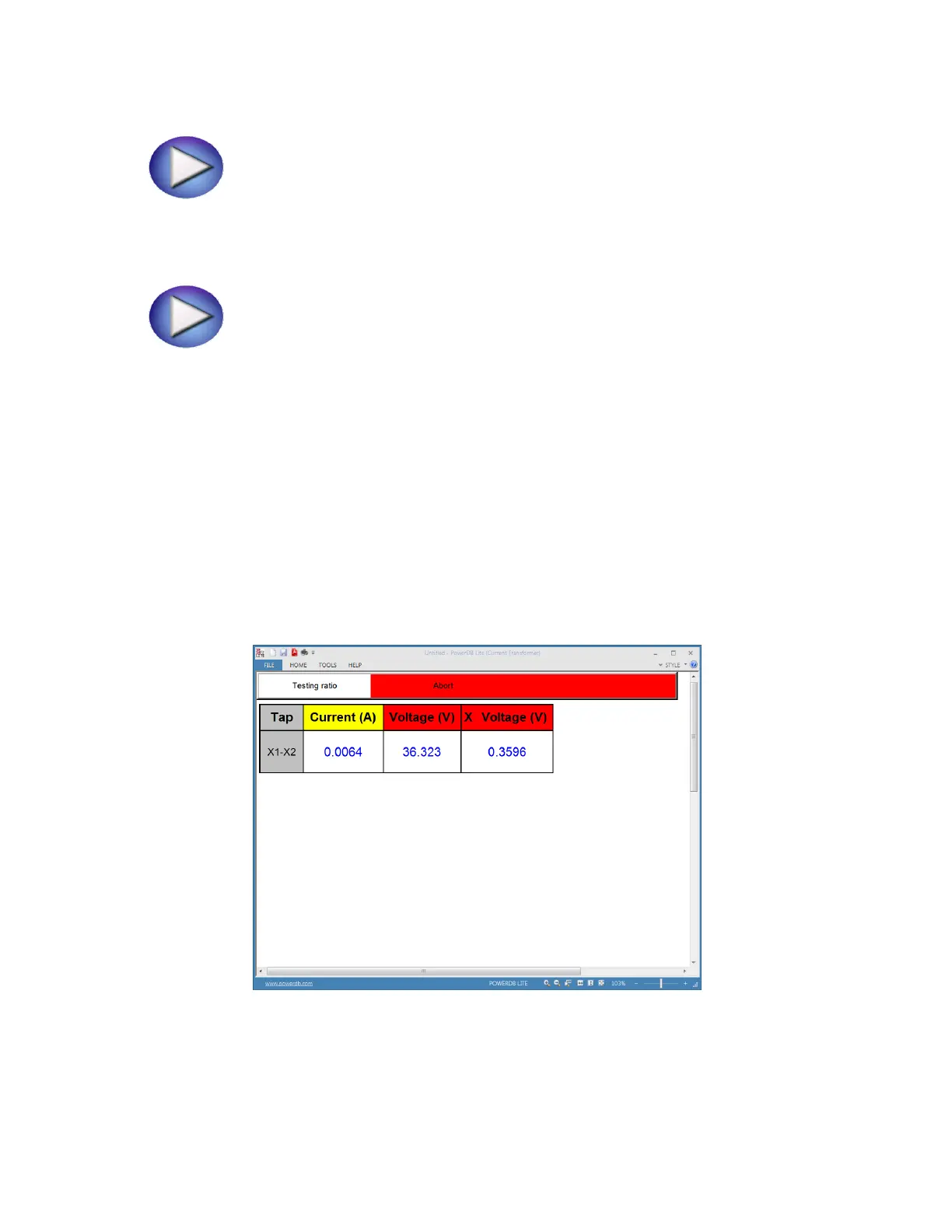

13 Hit Blue Play button.

14 Hit Blue Play button to begin test.

15 The Ratio test will begin.

H Current (A): The MVCT the real time current readings for the primary H winding while the test

is in progress.

H Voltage (V): The MVCT displays the real time voltage readings of the primary H winding while

the test is in progress.

X Voltage (V): The MVCT the real time voltage readings of the secondary X winding while the

test is in progress.

16 At any point of time Test can be terminated by hitting the ABORT button at the top

of the screen.

Figure 106 VT Ratio Testing Screen

17 Upon completion of all test the results will be displayed in the test screen or they can be

displayed in a test report.
