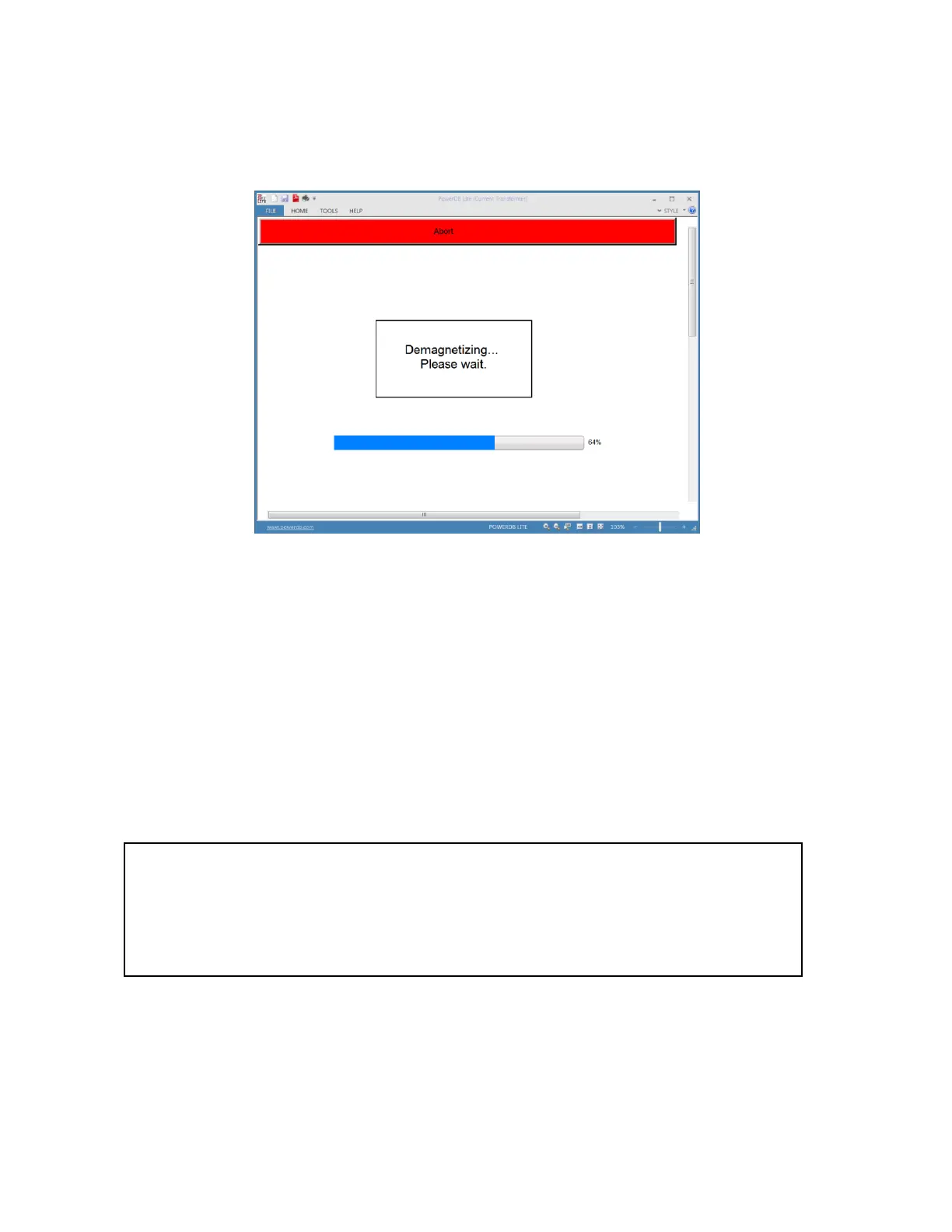

Figure 93 CT Demagnetizing Process Screen
13 Upon completion, the user will be returned to the Home Screen and notified the
demagnetization process is complete.
6.9 Self Test
Refer to the safety instructions first before use of the equipment.
1. Verify the Power ON/OFF switch is OFF. Power the test set from a suitable source
of power (95-125 or 195-265 V50/60 Hz).
2. Connect the ground wing nut to a suitable ground.
3. On test lead set labeled CT X/S connect the high voltage connector color coded green to
the MVCT high voltage connector that is color coded green and labeled SOURCE Voltage.
Use the red alignment marks on the 2 connectors to properly align them before connecting.
4. On test lead set labeled CT H/P Connect the high voltage connector color coded blue to the MVCT
high voltage connector that is color coded blue and labeled MEASUREMEMT. Use the red alignment
mark on the 2 connectors to properly align them before connecting
5. On test lead set labeled CT X/S, using supplied jumpers connect the test lead binding posts X1 and
X5 to binding posts H1 and H2 of the test lead set labeled CT H/P
WARNING
There is always the possibility of voltages being induced at the terminals of a test specimen
because of proximity to high voltage energized lines. A residual static voltage charge may also
be present at these terminals. Ground each terminal to be tested with a safety ground stick,
before making connections.
