Button used to toggle insulation test between 1KV and
500V
5.4.1.6 Manual Test
Selection of the Manual Test Button, will bring the user to the following Manual Test
Screen.

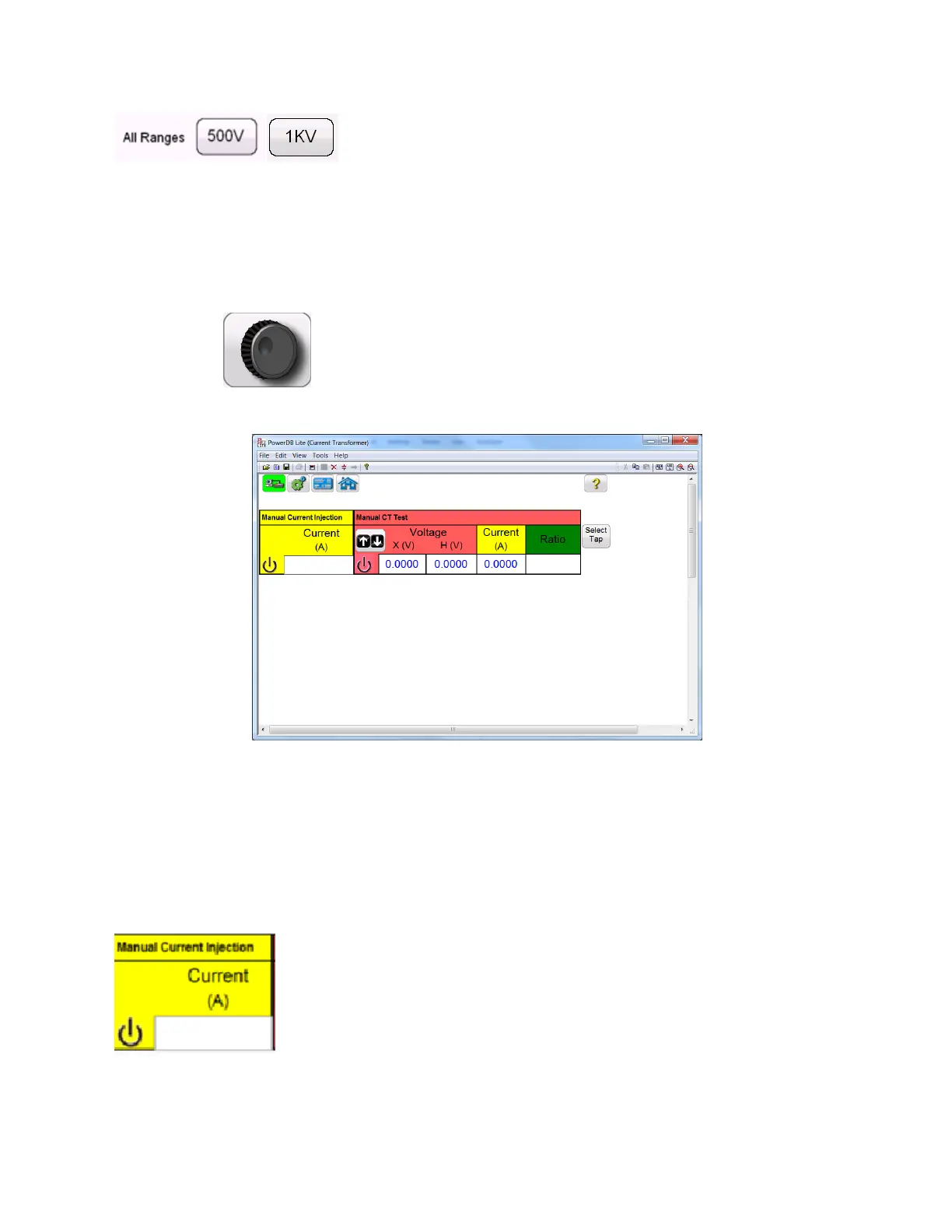

Figure 17 Manual Test Screen
Within the Manual Test Screen the user has the options of performing various
opertations from injecting current into a load to manually testing the ratio and
saturation point of a CT.
Current Injection: If the MVCT has been ordered with the “Relay Testing” option then the Manual
Current Injection screen will be available. To inject current into any load, the user must enter the
desired current level into currrent box.
