68

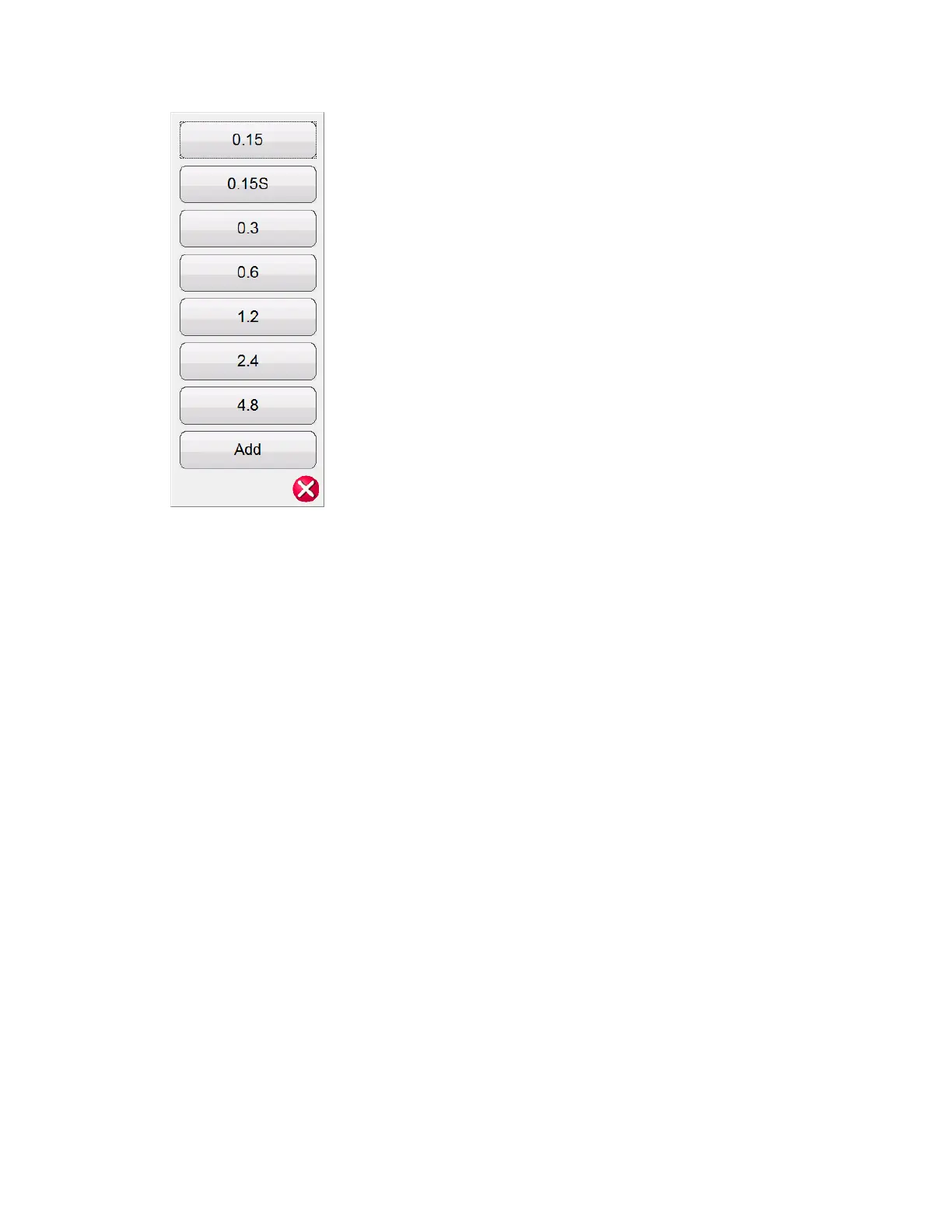

VA: The VA rating of the VT can be obtained from the nameplate
Burden The Burden rating of the VT can be obtained from the nameplate
Primary Voltage
Check box for Primary Phase to Ground
Secondary Voltage
Check box for Secondary Phase to Ground
Check box for Secondary /3
Ratio: For a multi- tap VT, different tap ratios can be obtained from nameplate and can be
entered in nameplate screen. By entering both the primary voltage and the secondary voltage
the MVCT can calculate the ratio
User Descriptions and Values are used to fill out the optional testing information such as
1. Technician name,
2. Company information,
3. Substation location,
4. Position and phase of VT
5. Other relevant testing data.
Note: Not All the information in Nameplate screen is optional. It is required to enter the Burden
Rating and the secondary voltage to perform a test on VT. This allows MVCT to restrict voltage and
prevent damage to wiring inside VT. By inputting proper data a more complete report can also be
generated.
5.4.2.4 Home Screen
Within the “Home Screen “ selecting the VT TEST button will cause the button to turn bright yellow.
This will inform the user that the MVCT is now in VT Testing mode. From here the user will have access
