109

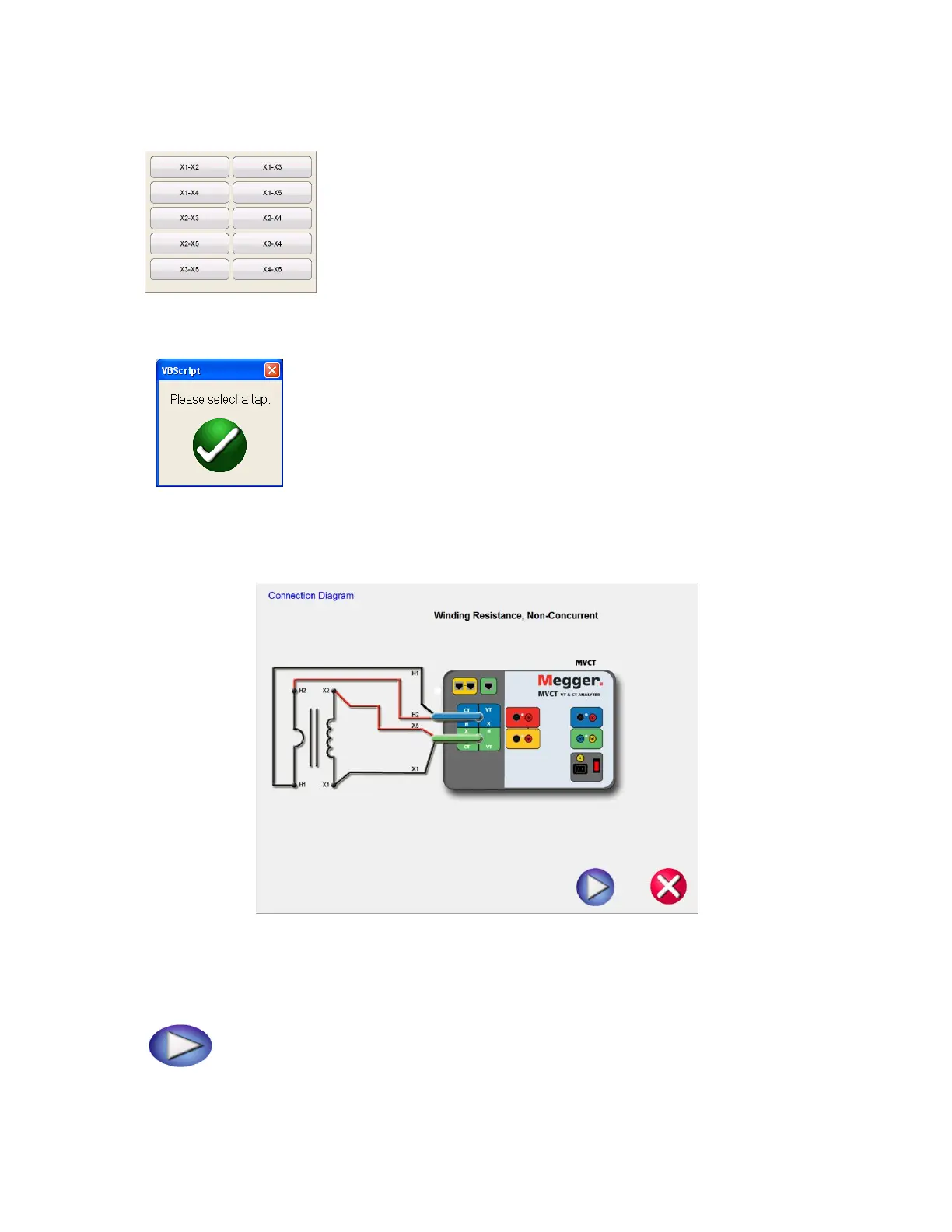

9. Hit the Select Tap function button to select the appropriate tap to be tested

10. Select the tap configuration before hitting the PLAY button. If PLAY button is

pressed before selecting the tap, following message will appear:

11. After selecting the appropriate tap, select the play button and a connection diagram will appear

showing how to correctly connect the MVCT to the CT

Figure 79 CT Winding Resistance Connection Diagram Non Concurrent

12. Check all connections to ensure correctness

13. Hit Blue Play button to begin test.

14. The Winding Resistance test will begin.
