Megger MVCT - Page 113

To Next Page

To Previous Page

113

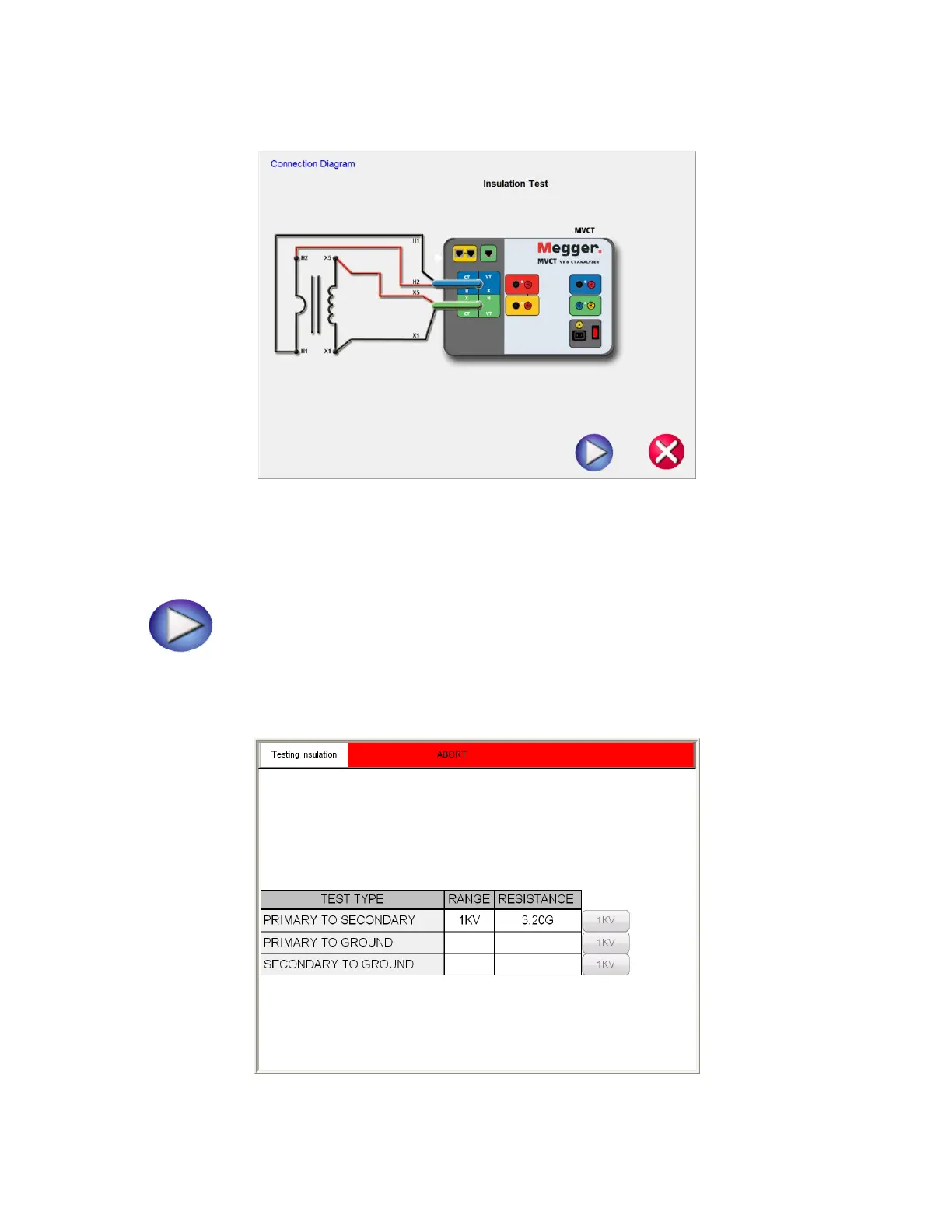

Figure 83 CT Insulation Test Connection Diagram

12. Check all connections to ensure correctness

13. Hit Blue Play button to begin test.

14. At any point of time Test can be terminated by hitting the ABORT button at the top

of the screen.

Figure 84 CT Insulation Testing Screen

Main Page
