12. Turn Power ON/OFF switch to ON.
13. After the boot up, in the Home Screen, place the MVCT in voltage transformer testing mode by
selecting the VT button at the top of the screen.
14. Select the “Self Diagnostic” button

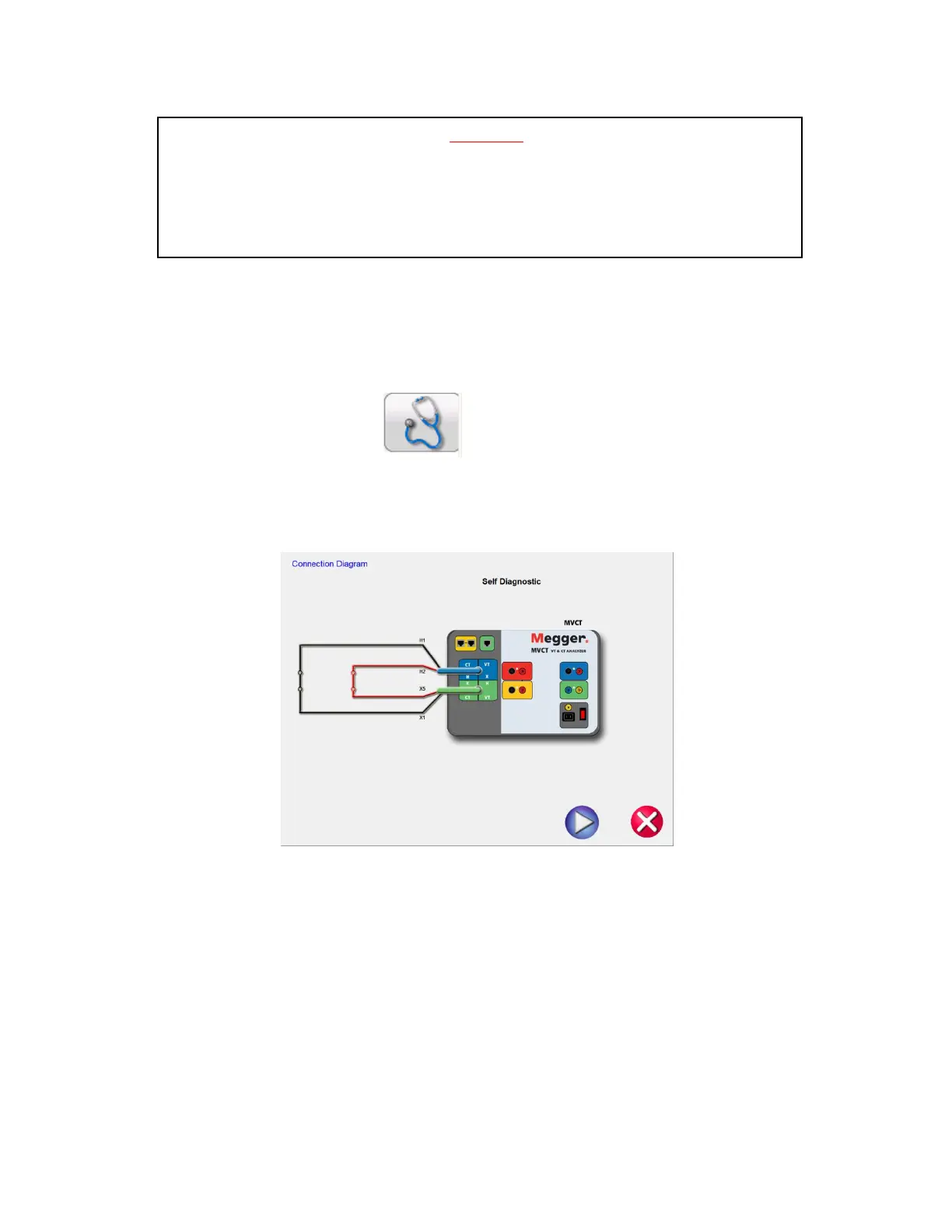

15. The following connection diagram will appear. Ensure the MVCT is connected properly.
Figure 121 Self Diagnostic Connection Diagram
16. During the Self Test, Secondary Current, Secondary Voltage and Primary Voltage will be displayed
WARNING
The MVCT produces high voltages and currents during the performance of tests. DO NOT
TOUCH connector clips or test leads while the MVCT is performing a test.
