CHARGING & STARTING SYSTEM
Page 2B-40 90-884294 OCTOBER 2001
Troubleshooting the Solenoid Driven Bendix Starter Circuit
Before beginning the troubleshooting flow chart, verify the following conditions:
1. Confirm that battery is fully charged.
2. Check that control lever is in “NEUTRAL” position.
3. Check terminals for corrosion and loose connections.
4. Check cables and wiring for frayed and worn insulation.
5. Check 20 amp fuse.

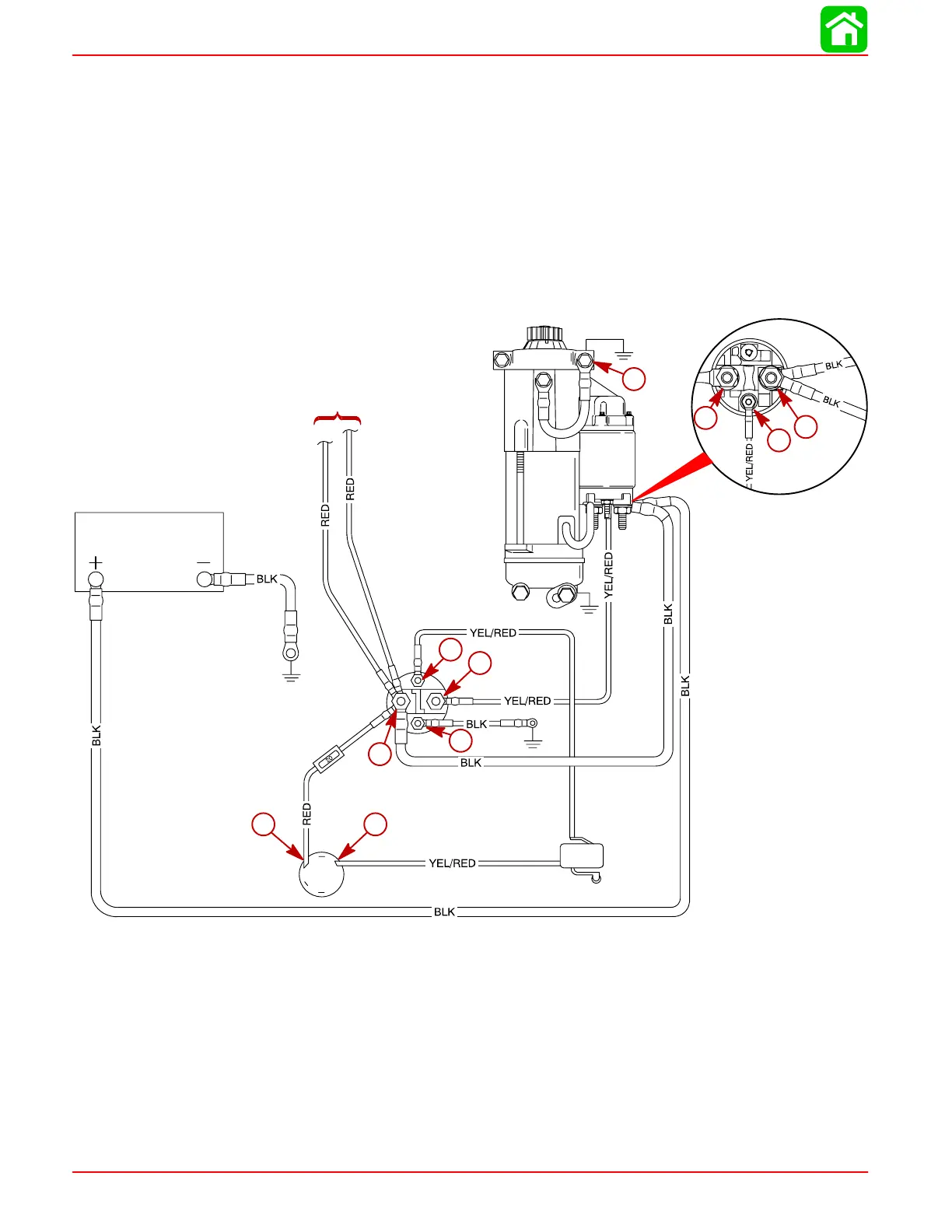

Location of “Test Points” (called out in flow chart) are numbered below.
Solenoid Driven Bendix Starter Circuit
BATTERY
20 AMP FUSE
(LOCATED IN CONTROL HOUSING)
58431
TO ALTERNATOR
STARTER
IGNITION SWITCH
NEUTRAL START SWITCH
STARTER
SOLENOID
SLAVE SOLENOID
2
4
1
9
8
3
7
6 5
10

Mercury 225 EFI Specifications

General

Engine Type	V6
Horsepower	225 hp
Steering	Remote
Fuel Induction System	Electronic Fuel Injection (EFI)
Alternator Output	60 Amp
Shaft Length	20", 25"
Weight	505 lbs
Full Throttle RPM Range	5000-5800
