CHARGING & STARTING SYSTEM
90-884294 OCTOBER 2001 Page 2B-53

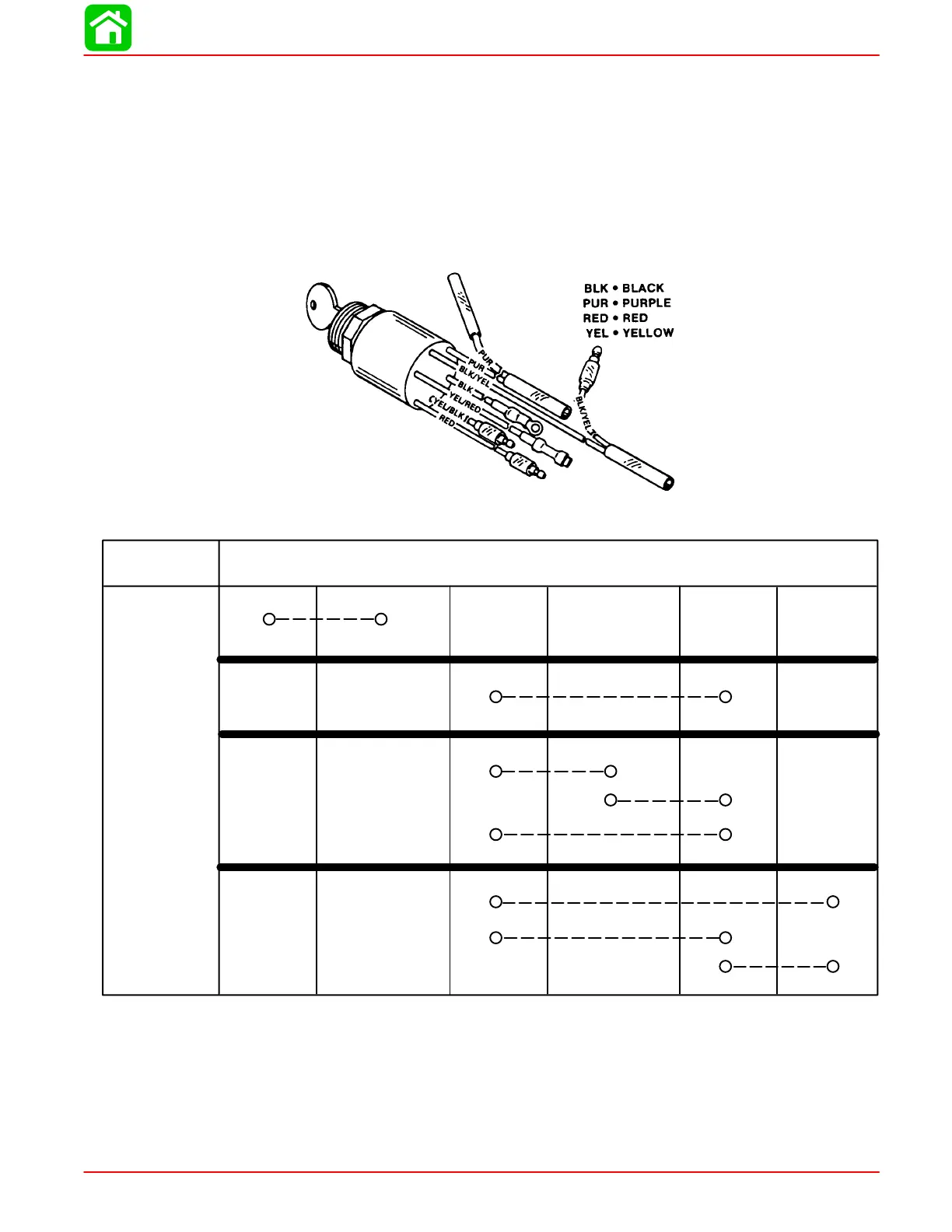

Commander 2000 Key Switch Test
1. Disconnect remote control wiring harness and instrument panel connector.
2. Set ohmmeter on R x 1 scale for the following tests.
3. If meter readings are other than specified in the following tests, verify that switch and
not wiring is faulty. If wiring checks ok, replace switch.
IMPORTANT: Key switch must be positioned to “RUN” or “START” and key pushed
in to actuate choke for this test.
KEY
POSITION
OFF
RUN
START
CHOKE*
CONTINUITY SHOULD BE INDICATED AT THE FOLLOWING POINTS:
BLK BLK/YEL RED YEL/RED PUR YEL/BLK

Mercury 225 EFI Specifications

General

Engine Type	V6
Horsepower	225 hp
Steering	Remote
Fuel Induction System	Electronic Fuel Injection (EFI)
Alternator Output	60 Amp
Shaft Length	20", 25"
Weight	505 lbs
Full Throttle RPM Range	5000-5800
