IGNITION
90-884294 OCTOBER 2001 Page 2A-15
Ignition Component Description
Fuses
The electrical wiring circuits on the outboard are protected from overload by fuses in the
wiring. If a fuse is blown, try to locate and correct the cause of the overload. If the cause
is not found, the fuse may blow again.
1. Open the fuse holder and look at the silver colored band inside the fuse. If band is
broken, replace the fuse. Replace fuse with a new fuse with the same rating.

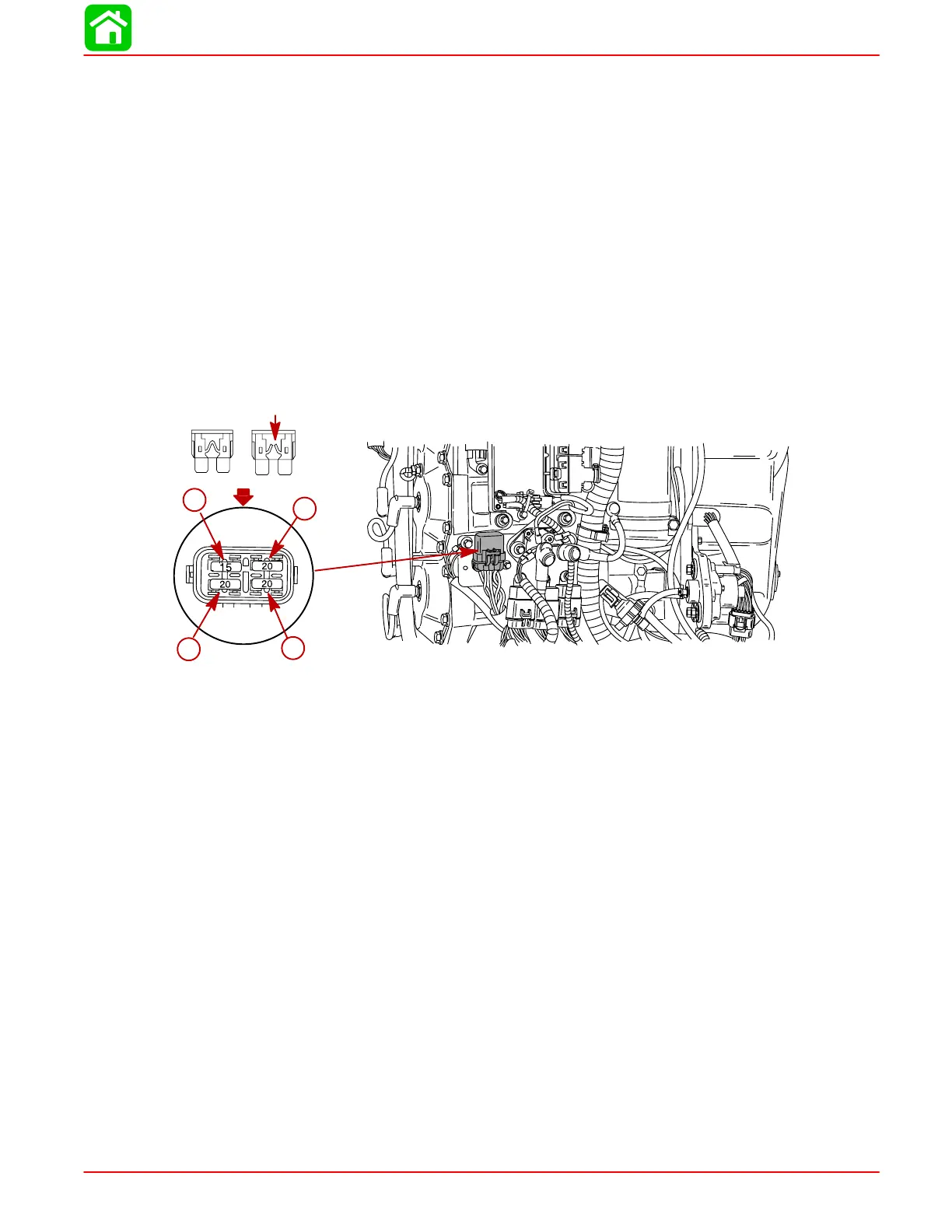

2. The fuses and circuits are identified as follows:
a. Smart Craft Data Bus Circuit - SFE 15 Ampere Fuse
b. Fuel Injector Harness, Electric Fuel Pump and Oil Pump - SFE 20 Ampere Fuse
c. Main Power Relay, Remote Control Harness and Power Trim - SFE 20 Ampere Fuse
d. Ignition Coils - SFE 20 Ampere Fuse
a
b
c
d
59035
