WIRING DIAGRAMS
Page 2D-2 90-884294 OCTOBER 2001

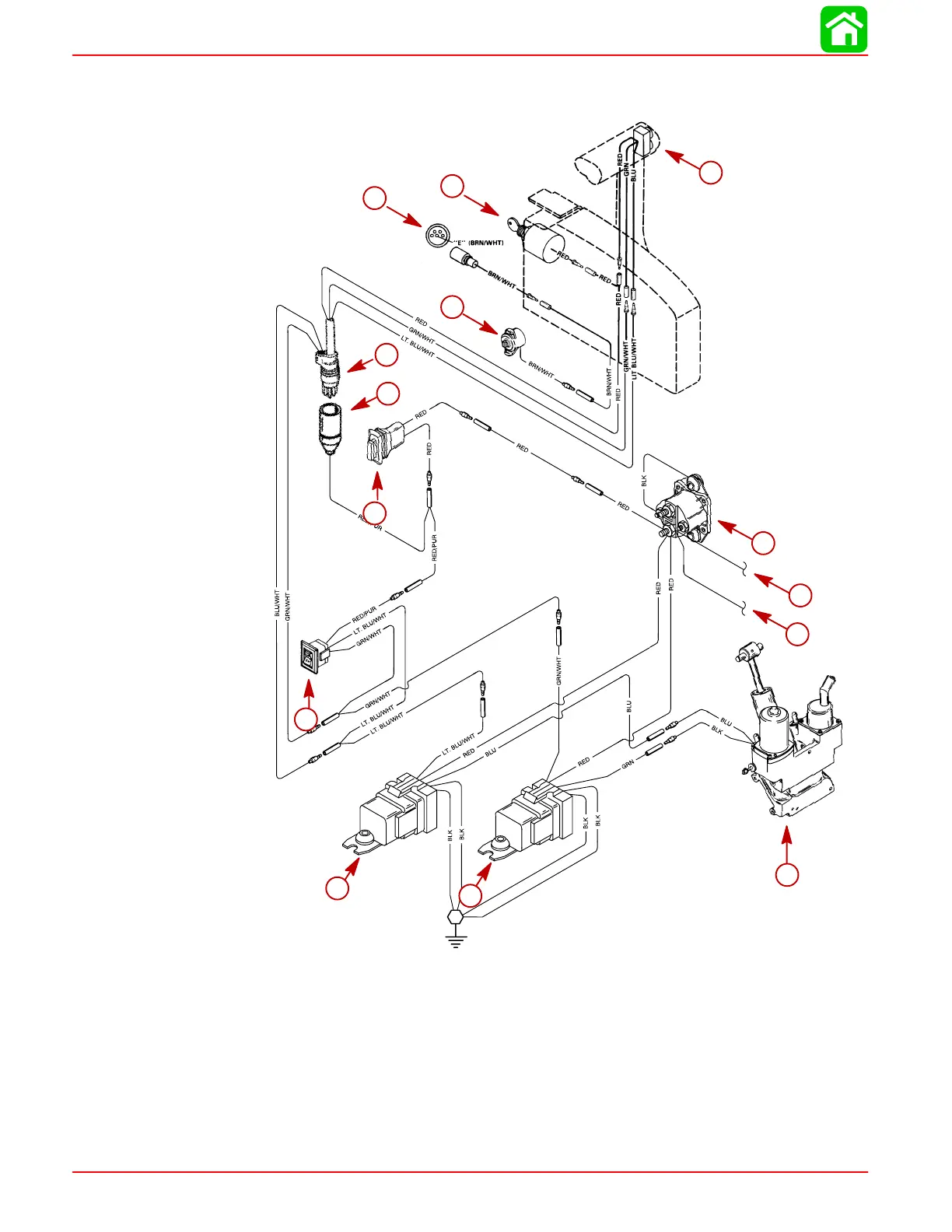

Power Trim Wiring Diagram
a
b
c
d
e
f
g
h
i
j
k
l
m
n
a
b
c
d
e
f
g
h
i
j
k
l
m
n
a-Tach. Connector
b-Key Switch Assembly
c-Trim Switch
d-Trim Sender
e-Start Solenoid
f-To Battery
g-To Alternator
h-Trim Pump and Motor
i-DOWN Solenoid
j-UP Solenoid
k-Bottom Cowl Switch
l-20 Ampere Fuse
m-Engine Harness
n-Remote Control Harness

Mercury 225 EFI Specifications

General

Engine Type	V6
Horsepower	225 hp
Steering	Remote
Fuel Induction System	Electronic Fuel Injection (EFI)
Alternator Output	60 Amp
Shaft Length	20", 25"
Weight	505 lbs
Full Throttle RPM Range	5000-5800
