WIRING DIAGRAMS
90-884294 OCTOBER 2001 Page 2D-25

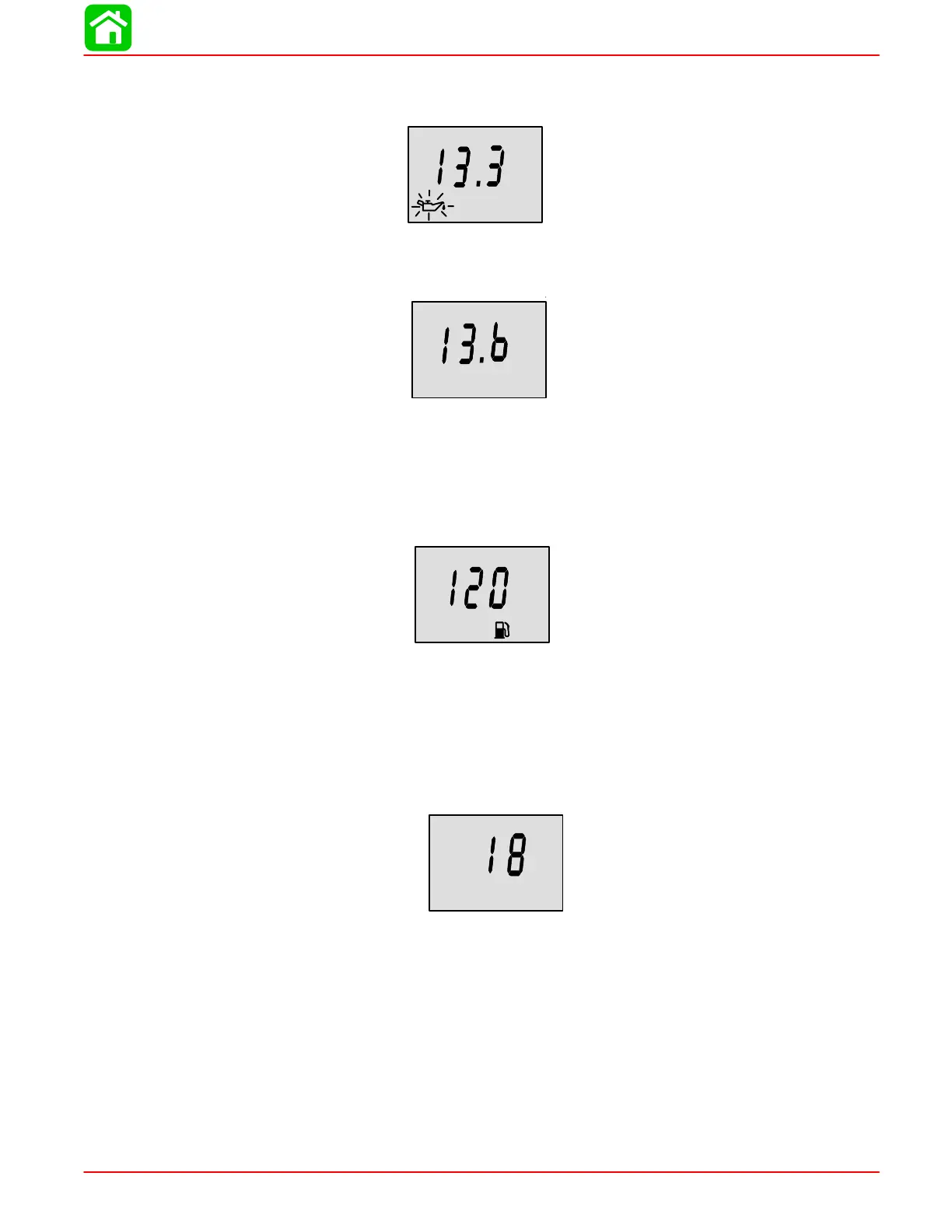

OIL PRESSURE SCREEN
Displays engine oil pressure in Psi or Bar.
Psi
BATTERY VOLTAGE SCREEN
Displays voltage level (condition) of battery.
Volt
Display of Range and Depth Information
RANGE SCREEN
Displays estimated traveling range based on current fuel consumption and fuel remaining
in the tank that is connected to the system. The number displayed is an estimate of the dis-
tance you can travel on the remaining fuel at current boat speed.
Miles
Range
NOTE: To activate this screen, you must perform the fuel tank calibration in Cal2. Refer
to the Cal2 Calibration Section for details.
NOTE: You must have a speed input device connected to the system (paddle wheel or pitot
pressure transducer).
WATER DEPTH SCREEN
Displays the depth of water under the transducer (if connected).
Ft
Depth
