RIGHT HAND NON-RATCHETING
Page 6A-44 90-884294 OCTOBER 2001
Pinion Bearing
REMOVAL
NOTE: Inspect the bearing surface on the drive shaft where the needles of the lower pin-
ion bearing roll. The condition of the drive shaft at this location gives an indication of the
condition of the needle bearing. Replace lower pinion bearing (needles and race as a set)
if the drive shaft is pitted, grooved scored, worn unevenly, discolored from overheating,
or has embedded particles.
IMPORTANT: All the needle bearings (18) MUST BE in place inside bearing race
while driving the pinion bearing from the gear housing.
IMPORTANT: Do not reuse the bearing (race or rollers) once it has been removed.

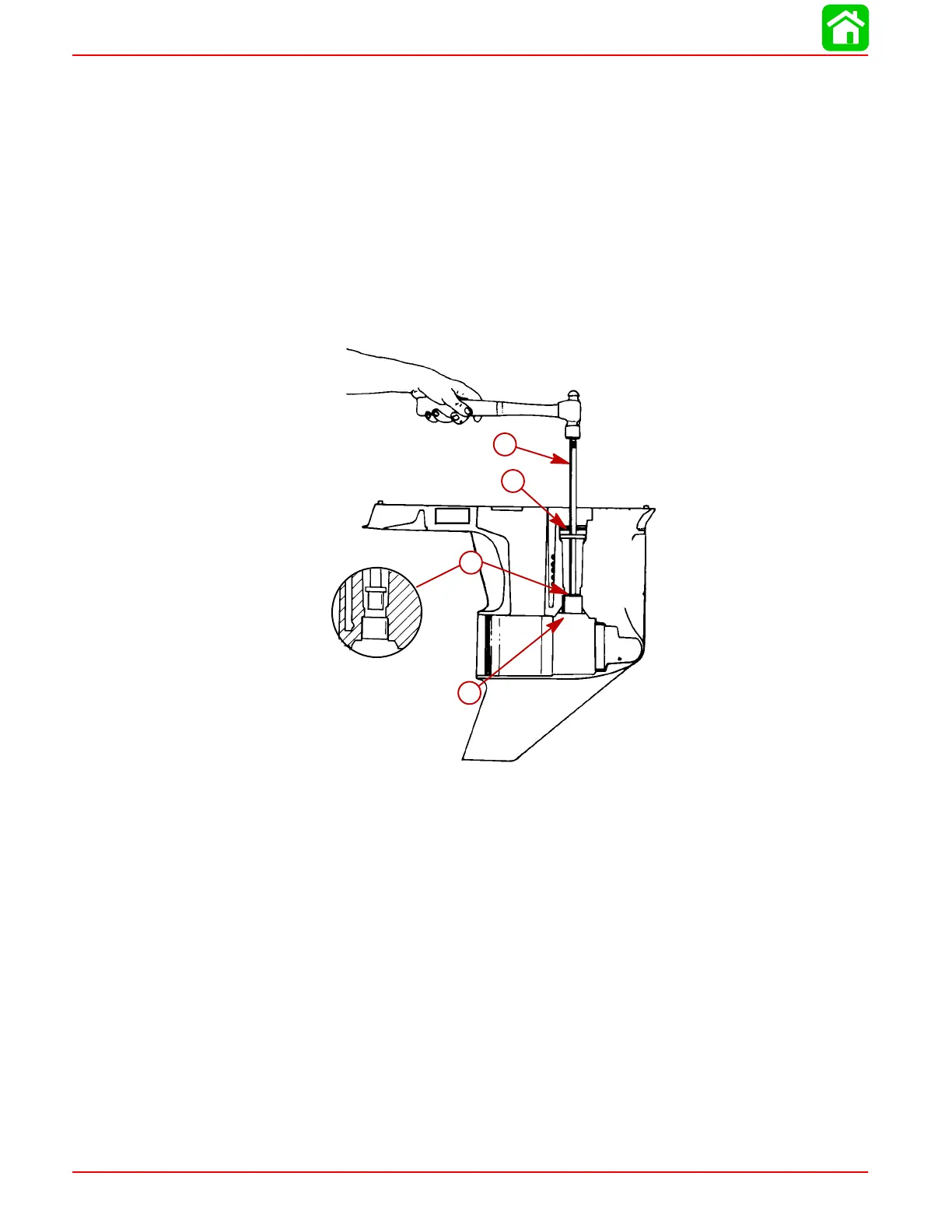

1. Remove and discard the pinion bearing (race and rollers) using tools as shown.
70614
b
a
c
d
a-Pinion Bearing
b-Bearing Driver (91-36569)
c-Pilot Washer (91-36571)
d-Driver Rod (91-37323)
