Mercury 225 EFI User Manual

POWER TRIM - DESIGN II
Page 5B-28 90-884294 OCTOBER 2001
Power Trim Assembly Removal and Installation
Removal

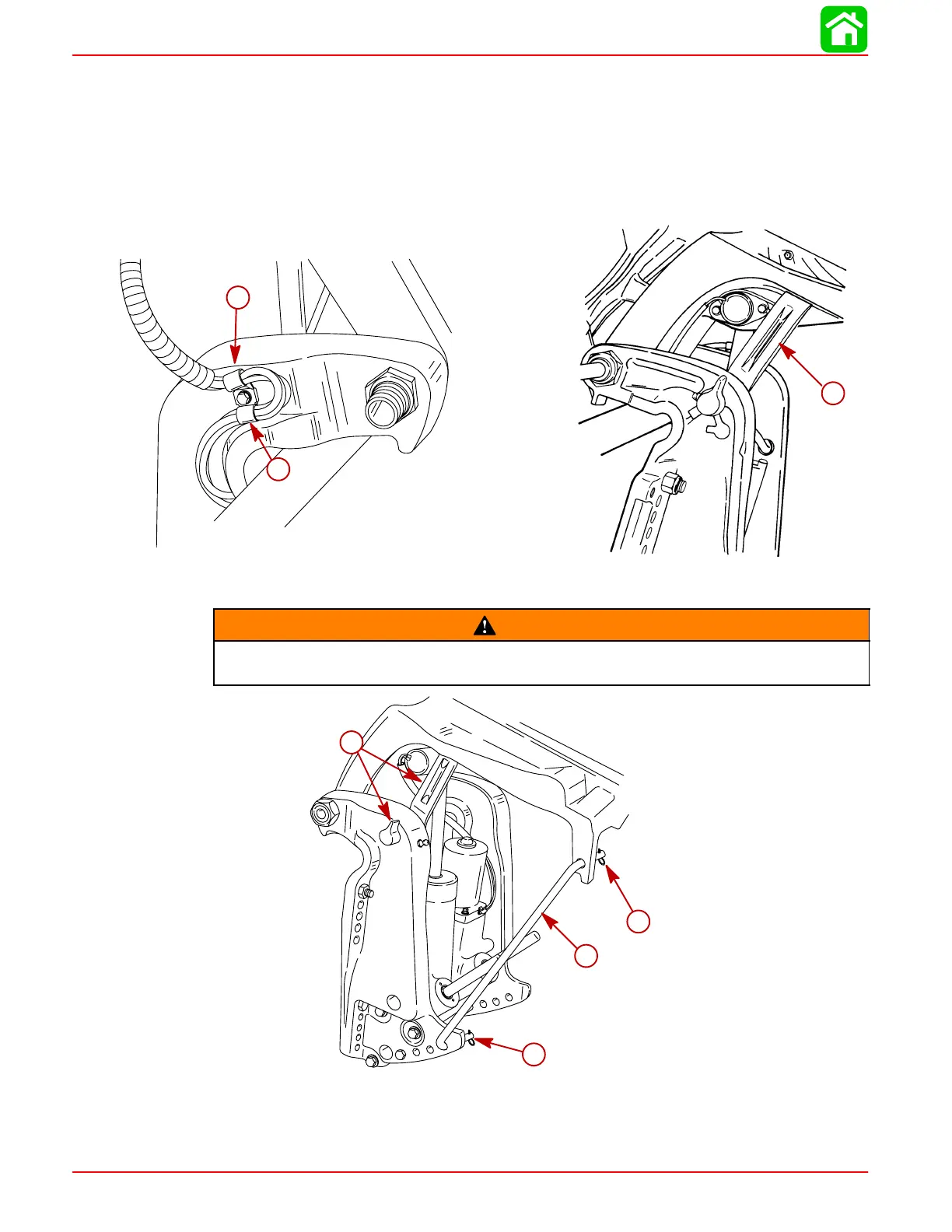

1. Remove clamps on transom bracket to free power trim wiring.
2. Raise outboard to full “Up” position and engage tilt lock lever.
3. Remove trim indicator.
50605
a
b
58448
a
a
a-Clamps
b-Tilt Lock Lever
WARNING
Failure to support outboard as shown could result in personal injury and/or dam-
age to outboard or boat.
c
58447
c
c
b
a
a-Tilt Lock Lever
b-Support Tool
c-Retaining Clips

Mercury 225 EFI Specifications

General

Engine Type	V6
Horsepower	225 hp
Steering	Remote
Fuel Induction System	Electronic Fuel Injection (EFI)
Alternator Output	60 Amp
Shaft Length	20", 25"
Weight	505 lbs
Full Throttle RPM Range	5000-5800
