Mercury 225 EFI User Manual

POWER TRIM - DESIGN II
Page 5B-52 90-884294 OCTOBER 2001

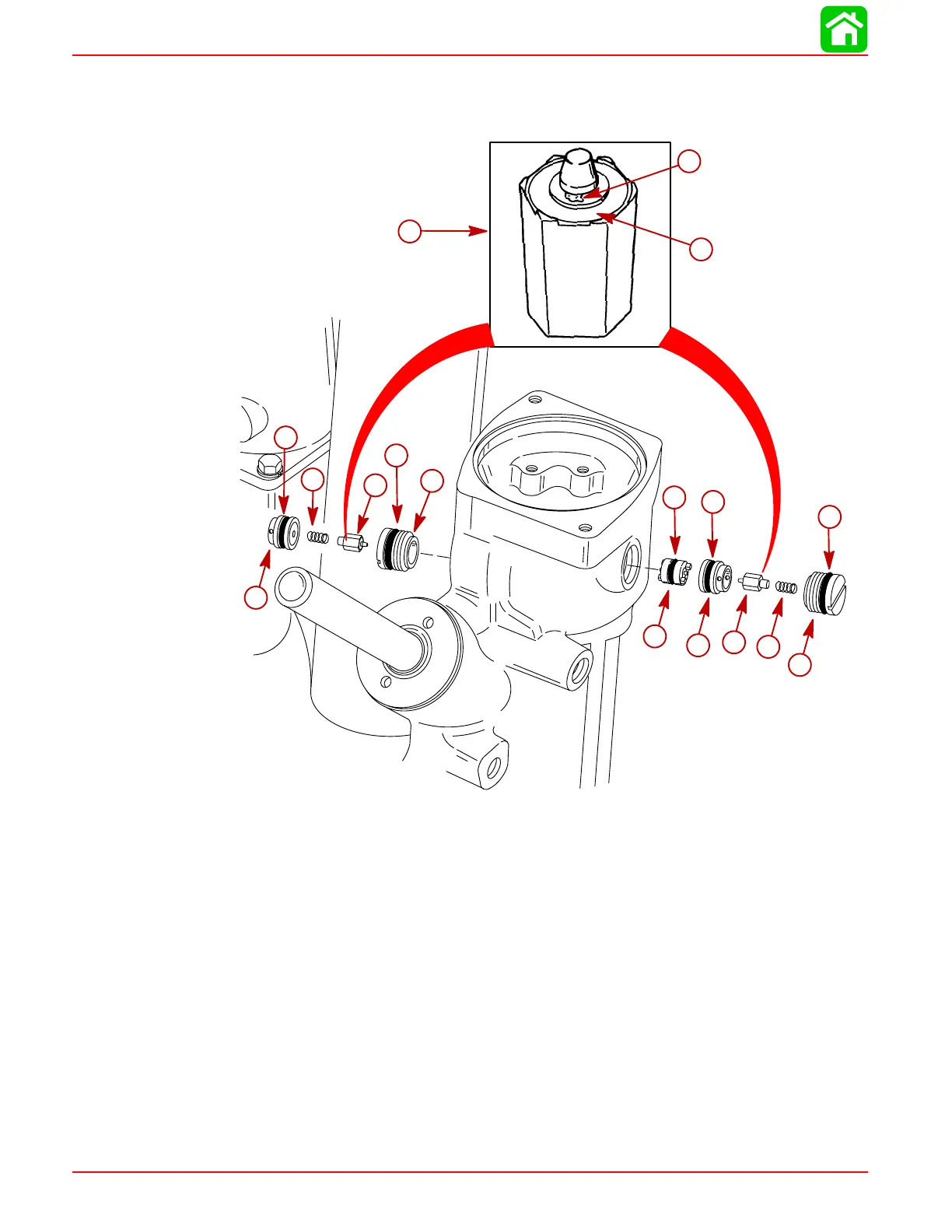

IMPORTANT: Inspect poppet assembly for debris in the area shown. If debris is
found on poppet, replace poppet. Inspect o-rings on both seats and spool for cuts
or abraisions. Replace o-rings as required.
58607
b
c
a
d
e
e
e
e
e
a
a
f
f
g
g
h
h
a-Poppet Assembly
b-Debris on Rubber Seat
c-Neoprene Seat
d-Spool
e-O-Rings
f-Spring
g-Cap
h-Seat
