Microscan MINI Hawk - Setting up the Imager for EZ Trax

MINI Hawk High Performance Imager User’s Manual 5-27
Read Cycle
Setting Up the Imager for EZ Trax
If you are using EZ Trax software, it is important to set up the MINI Hawk correctly before
beginning.

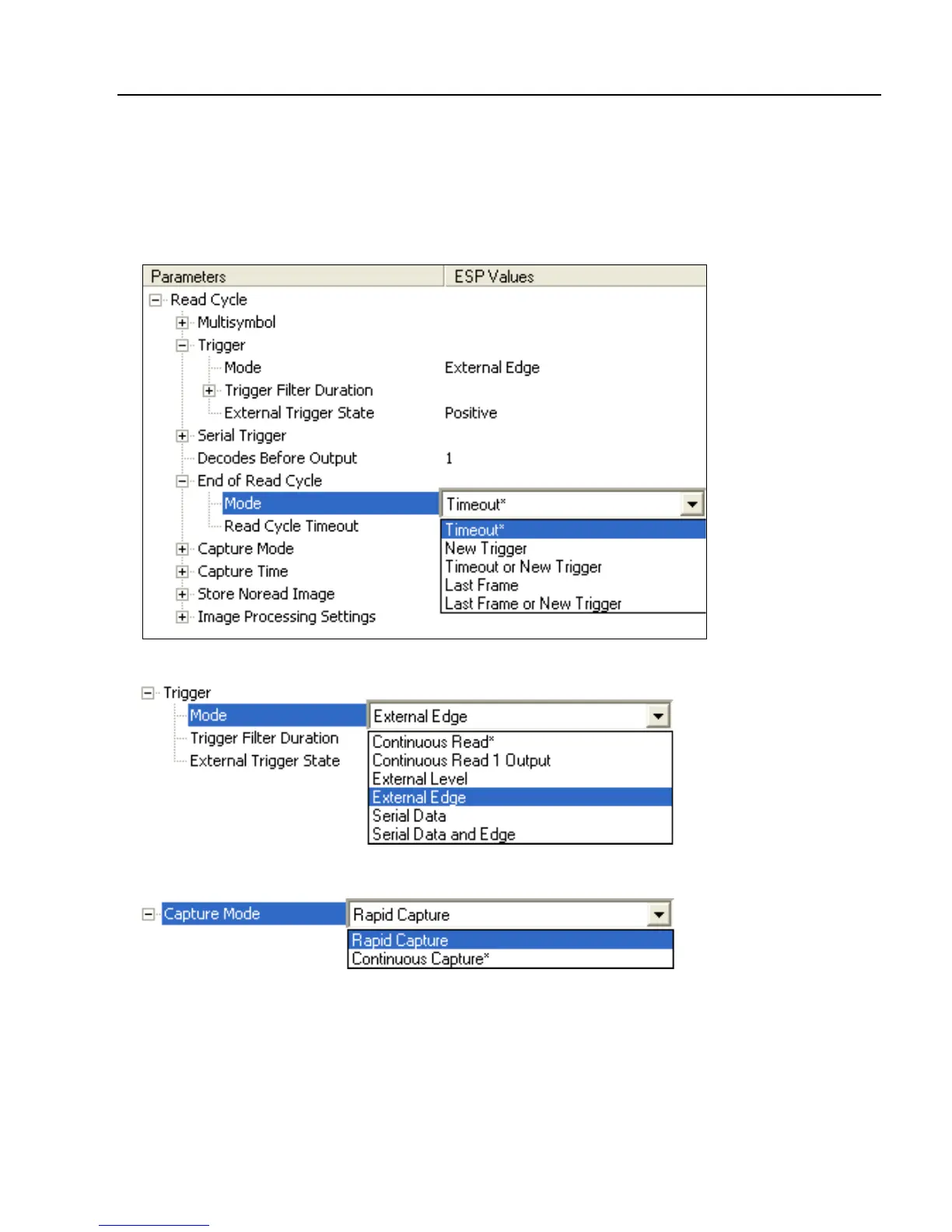

Click the Read Cycle tab to display the Read Cycle tree control.
Set Trigger Mode, <K200>, to External Edge.
Set Capture Mode, <K241>, to Rapid Capture.
Once these Read Cycle parameters are set, you will be ready to connect to EZ Trax. For a
description of how to configure EZ Trax using serial commands or ESP , see Configuring EZ
Trax Output
in Chapter 7, I/O Parameters .
For more detailed information about using EZ Trax, refer to the Help menu in EZ Trax
software, or the EZ Trax Quick Start Guide, available on the Microscan Tools CD.
