12-4 MINI Hawk High Performance Imager User’s Manual

Send

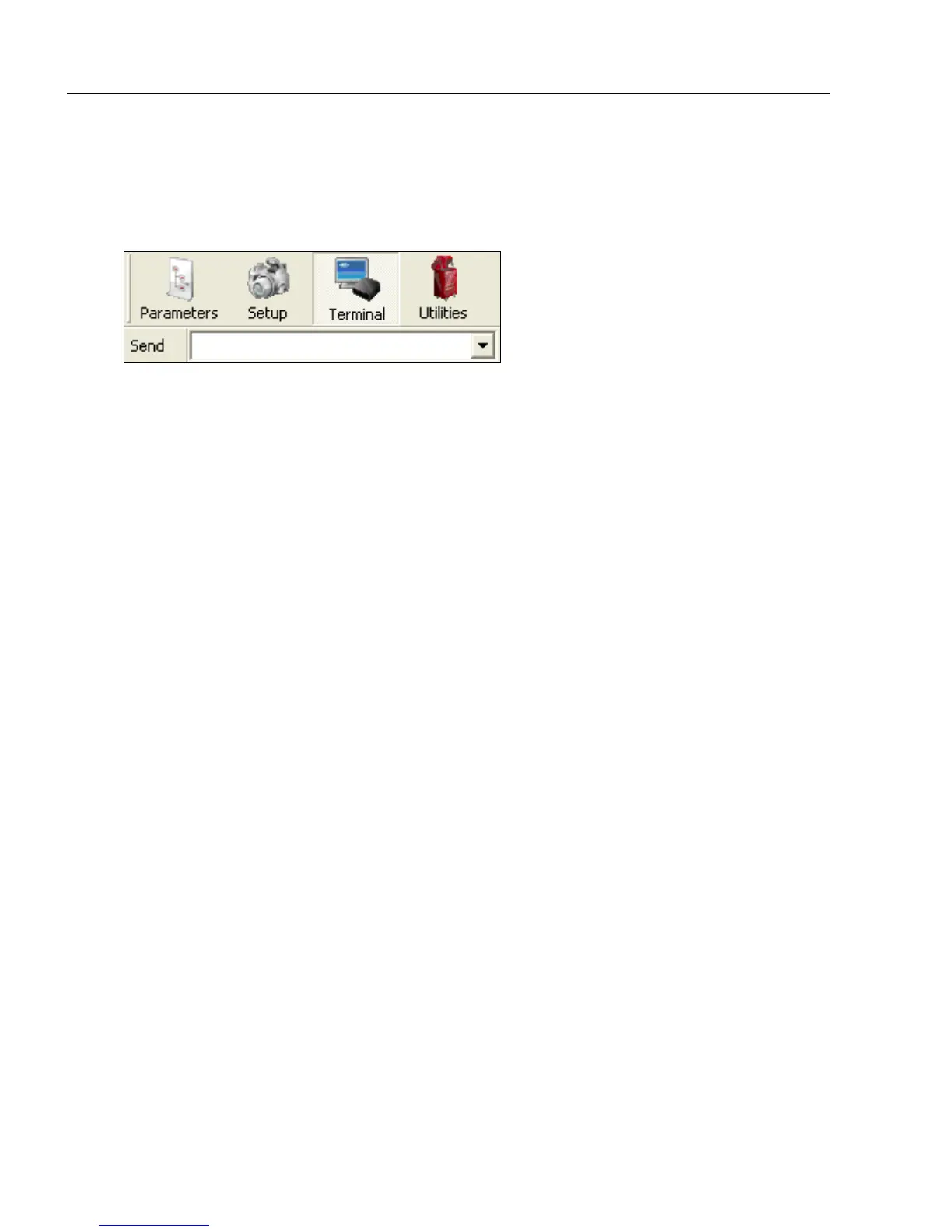

The Send function allows you to enter serial commands and then send them to the imager.

1. Type the command into the Send box.

2. Press Enter.

3. Click the Send button to the left of the text field to send .
