MINI Hawk High Performance Imager User’s Manual 1-7

Quick Start

Step 6 — Select Protocol and Connect

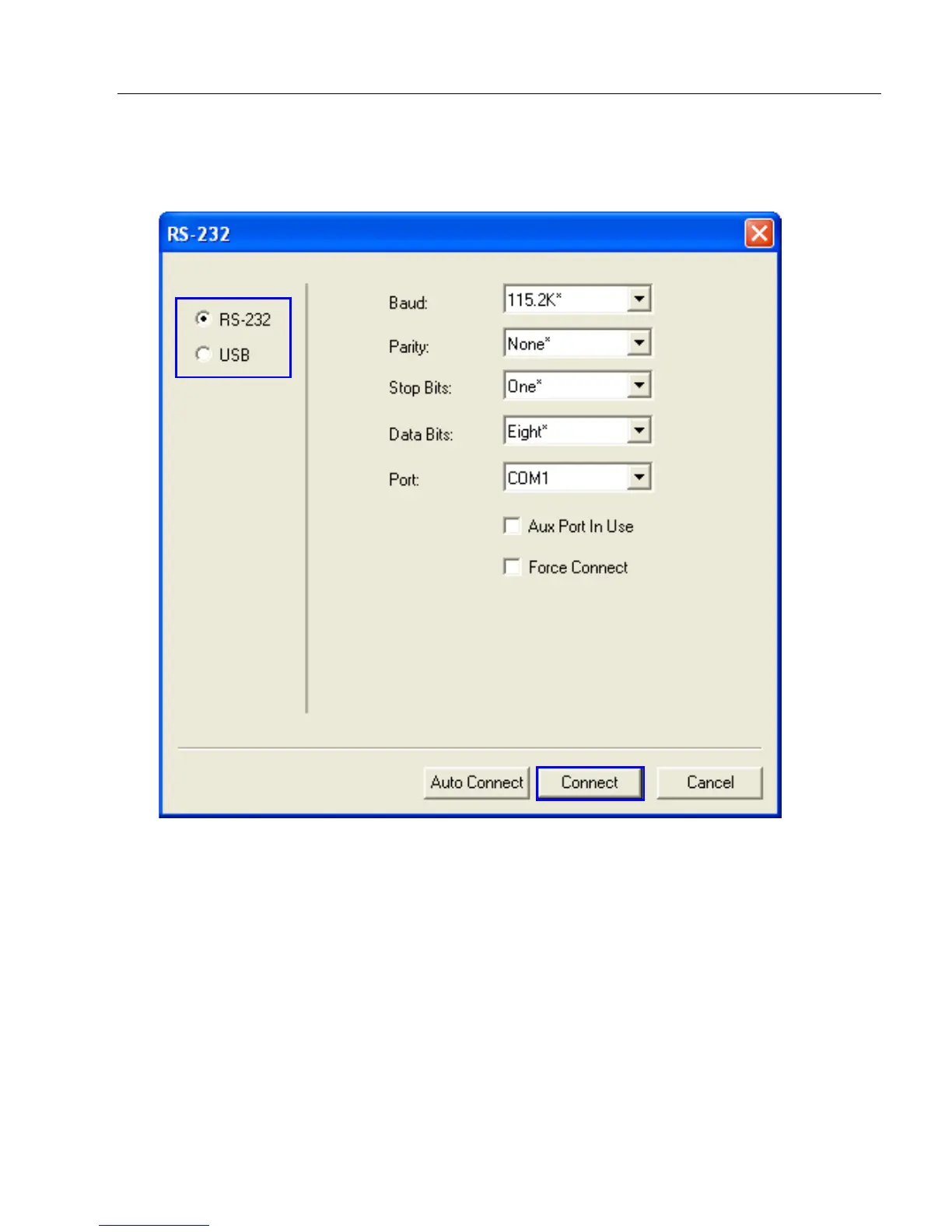

• Choose the connection protocol you are using and click Connect.

• Once you select your communications mode, follow the simple prompts to

establish your connection.
