MINI Hawk High Performance Imager User’s Manual 1-9
Quick Start
Step 7 —
Locate the Symbol in the Field of View
Locate by ESP

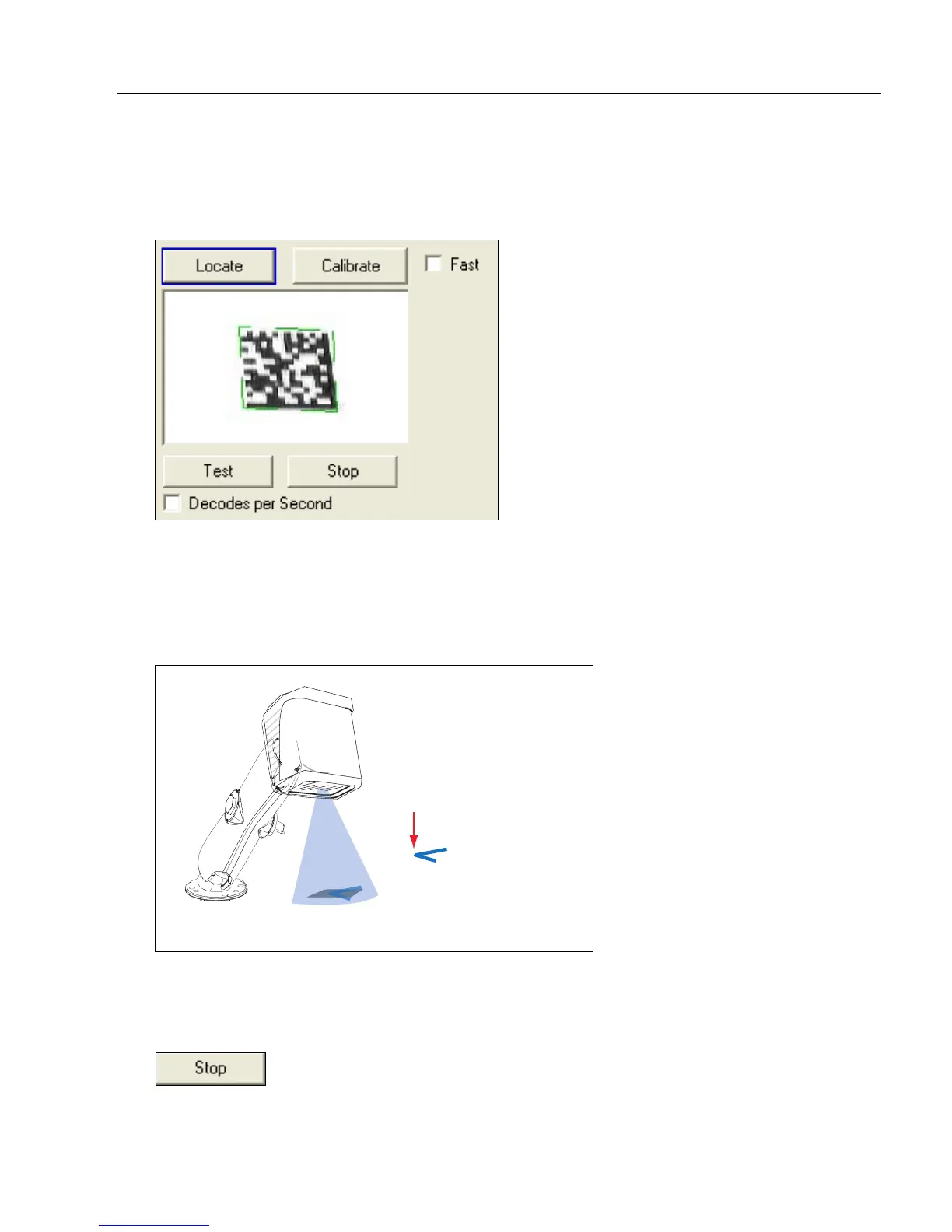

•In ESP’s EZ Mode, click the Locate button to enable the blue target pattern.
The symbol in the field of view will appear in the video view beneath the Locate and
Calibrate buttons, and you will see the blue target pattern projected from the front of the
imager.
• Center the target pattern on the symbol.
At 2 to 3 inches, the pattern resembles an X. At 3 to 6 inches, the pattern resembles a V.
Important: The entire symbol should fall within the field of view (FOV) of the imager. The
field of view is what appears in ESP’s Locate/Calibrate window in EZ Mode.
• Click the Stop button to end the Locate function.
Center on object
in field of view.
Target pattern shown as it would appear between 3 and 6 inches.
