A-2 MINI Hawk High Performance Imager User’s Manual
General Specifications
Appendix A — General Specifications

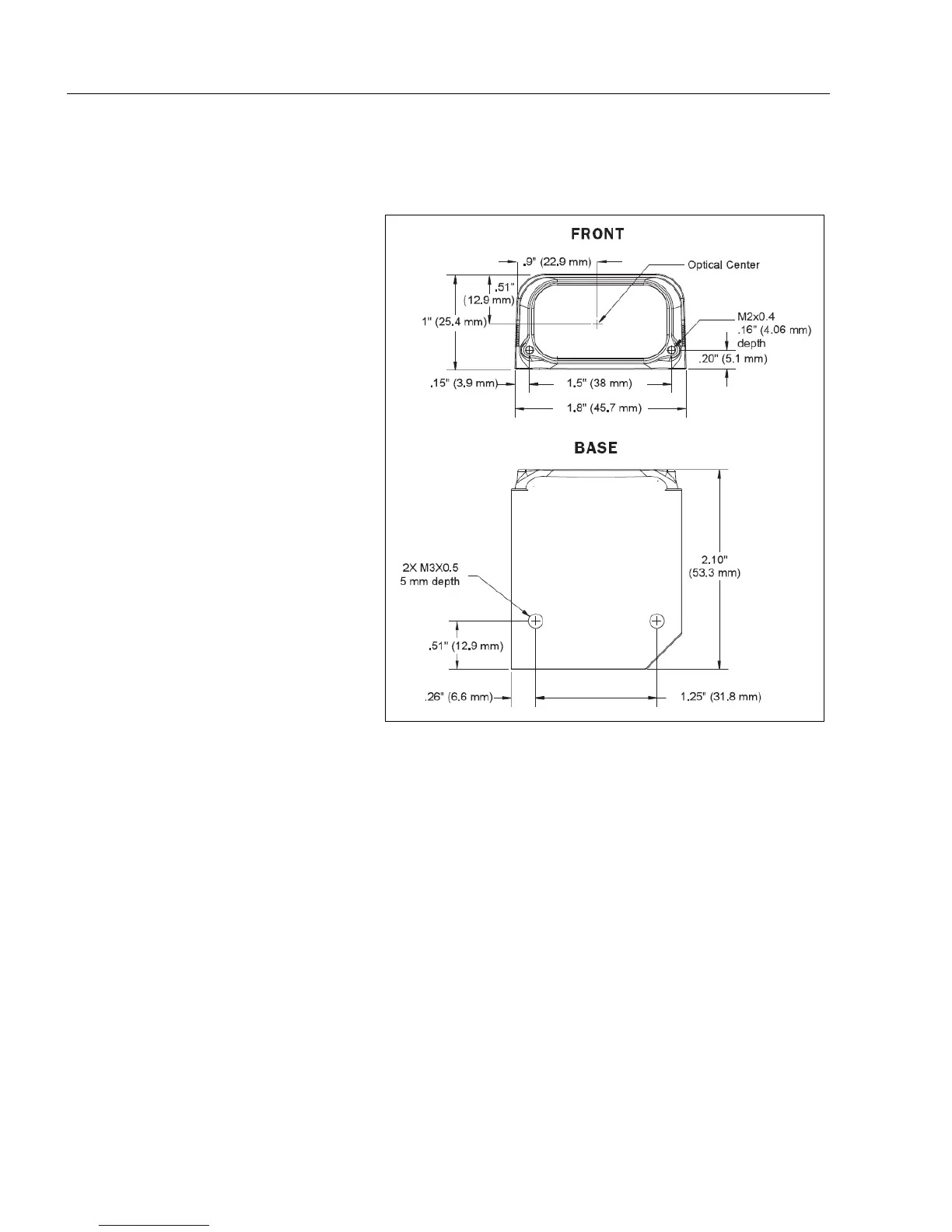

Mechanical
Height: 1" (25.4 mm)
Width: 1.8" (45.7 mm)
Depth: 2.10" (53.3 mm)
Weight: 2 oz. (57 g)
Environmental
Enclosure: IP54, category 2
Operating Tempurature: 0° to 40°C
(32° to 104°F)
Storage Tempurature: -50° to 75° C (-58
to 167°F)
Humidity:
up to 90% (non-condensing)
CE Mark
General Immunity for Light Industry:
EN
55024:1998+A1:2001+A2:2003
Radiated and Conducted Emissions
of
ITE Equipment:
EN 55022:1998+A1:2000+A2:2003 for
Class A products
Light Source
Type: High-output LEDs
Light Collection Options
Progressive scan, square pixel; Software
adjustable shutter speed, electronic shutter
MINI Hawk HR:
1280 x 1024 pixels (
SXGA)
MINI Hawk HS: 752 x 480 pixels (WVGA)
Connector
Type: 3 ft. cable terminated with High
Density 15-pin D-Sub socket connector
or
USB Type A connector
Indicators
LEDS: Read Performance, Power, Read
Status
Green Flash: Good Read
Blue Target Pattern: Symbol locator
Beeper:
Good Read, match/mismatch, No Read, serial command confirmation, on/off
Discrete I/O
Trigger Input: 5 to 28VDC rated (.16 mA)
New Master: 5 to 28VDC rated (.16 mA)
Default: 3.3V rated (0mA @ 3.3V)
Outputs (1, 2, 3): 5V TTL compatible; can sink 10 mA and source 10mA
Optional I/O: Optoisolated (with IC-332 accessory)
Communication Protocols
Standard Interfaces: RS-232, RS-422, USB
Symbologies
2D Symbologies: Data Matrix (ECC 0-200), Aztec Code, QR Code, Micro QR Code
Stacked Symbologies: PDF417, MicroPDF417, GS1 DataBar (RSS) (Composite and Stacked)
Linear Symbologies:
Code 39, Code 128, BC412, Interleaved 2 of 5, Pharmacode, UPC/EAN, Codabar, Code 93, Postal
Read Parameters
Pitch: ±30° Skew: ±30° Tilt: 360°
Decode Rate: Up to 10 decodes per second
Focal Range: 2 to 6” (50.8 to 152.4 mm) (autofocus)
