11-12 MINI Hawk High Performance Imager User’s Manual
Database Mode
Image Dimensions
Window of Interest (WOI) by ESP
When Image Dimensions is set to Window of Interest, the database image dimension
parameters are camera settings, and they determine the size of the image to be captured.
Definition: Determines how the image dimension parameters will be implemented.
Serial Cmd:
<
K256,
switch mode,frame count/time,image process looping,
image dimensions
>
Default: 0
Options: 0 = Window of Interest 1 = Region of Interest

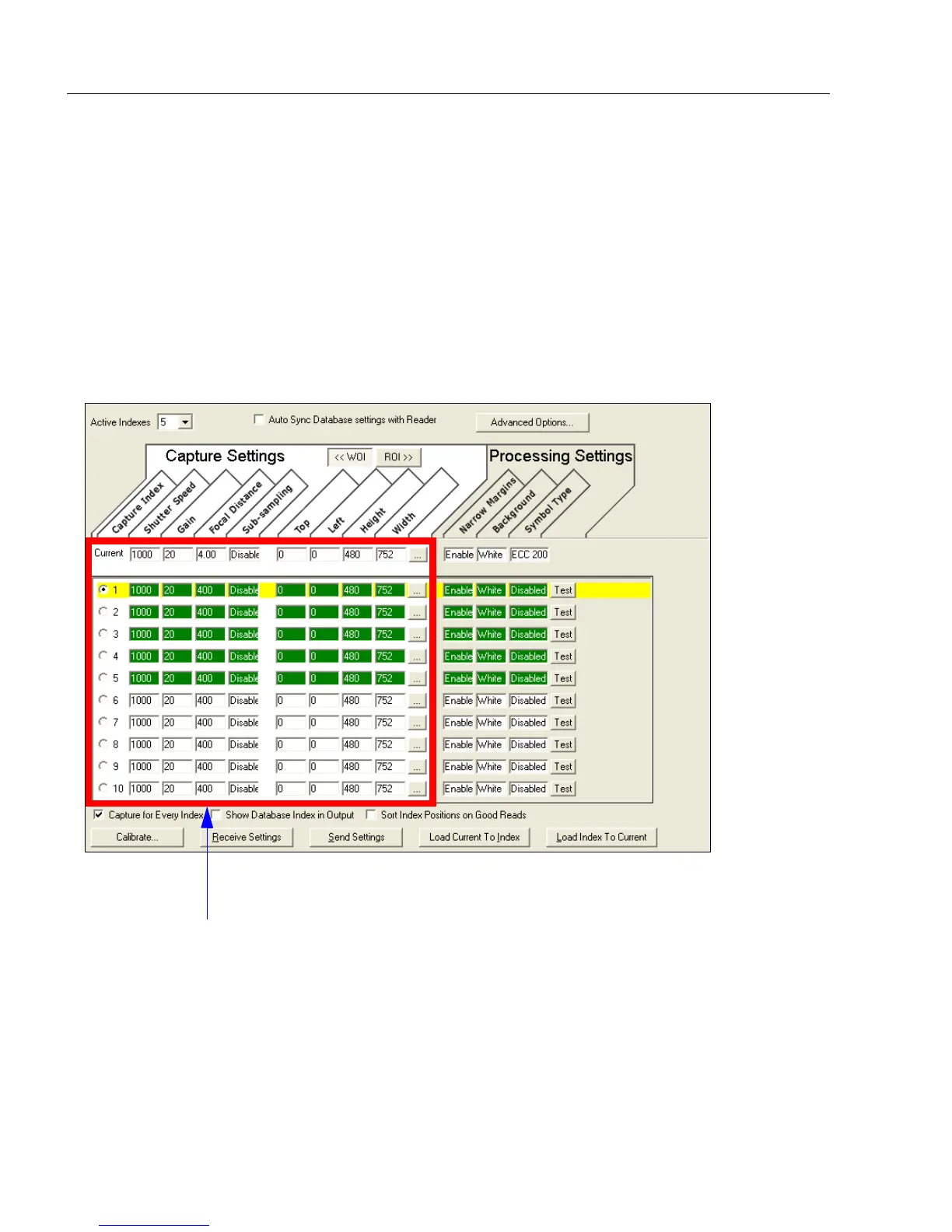

Camera settings (Capture Index, Shutter Speed, Gain, Focal Distance,
Sub-Sampling) located in the left half of the highlighted area.
Image capture dimensions (Top, Left, Height, Width) located in the right
half of the highlighted area.
