Monitoring Carbon Dioxide
13-2
13.2 Identifying CO
2
Modules

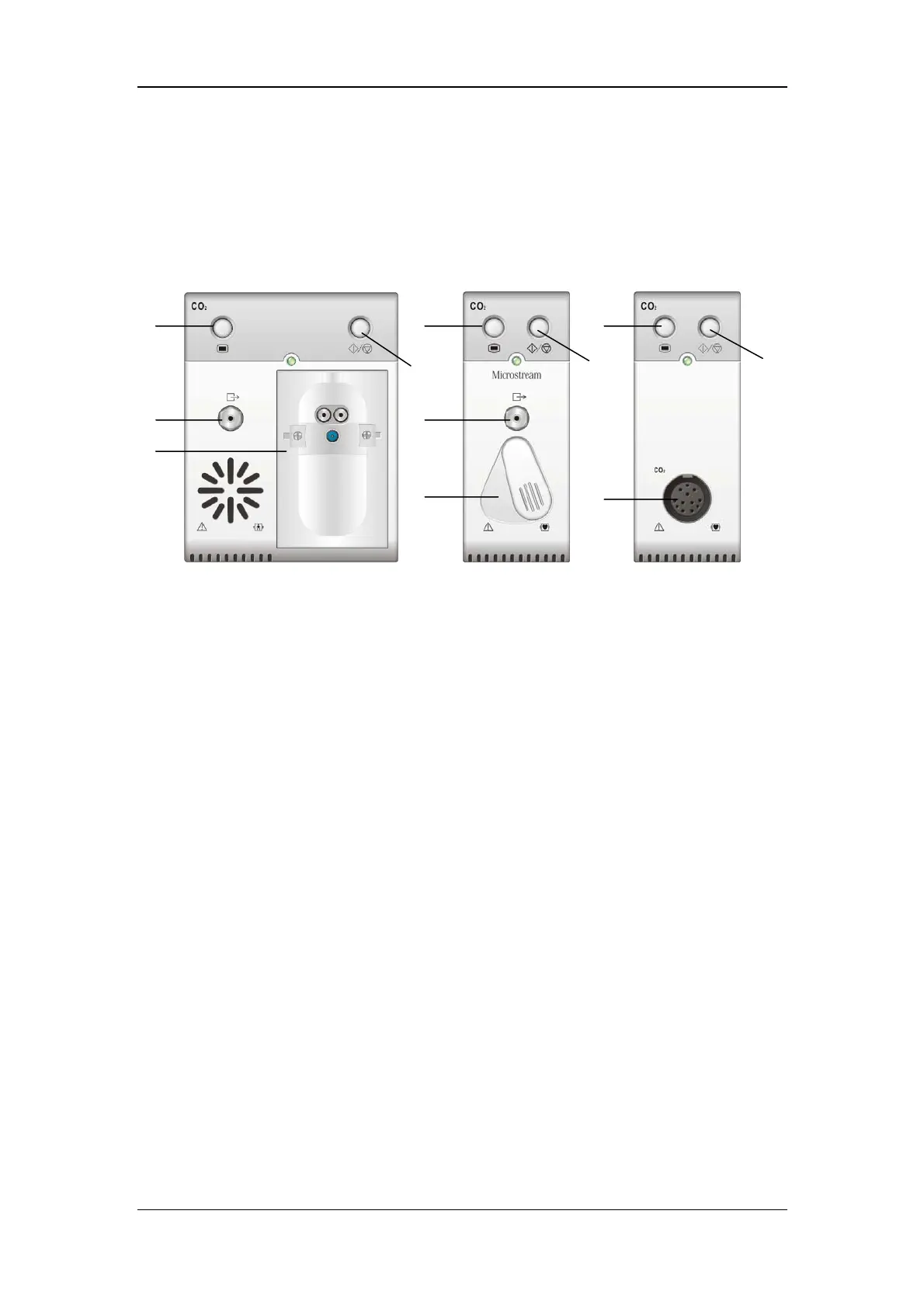

From left to right are sidestream CO
2
module, microstream CO
2
module and mainstream CO
2.
1. Setup key to enter the CO
2
setup menu
2. Measure/standby
3. Gas outlet
4. Slot for CO
2
watertrap
5. Connector for sampling line
6. Connector for CO
2
transducer
If you measure CO
2
using the AG module, see the section Monitoring AG.
