The Basics
2-7
2.3 Satellite Module Rack
The Satellite Module Rack (SMR) provides 8 slots for mounting parameter modules. The
number of modules mounted in the SMR depends, as different modules may need different
slots.

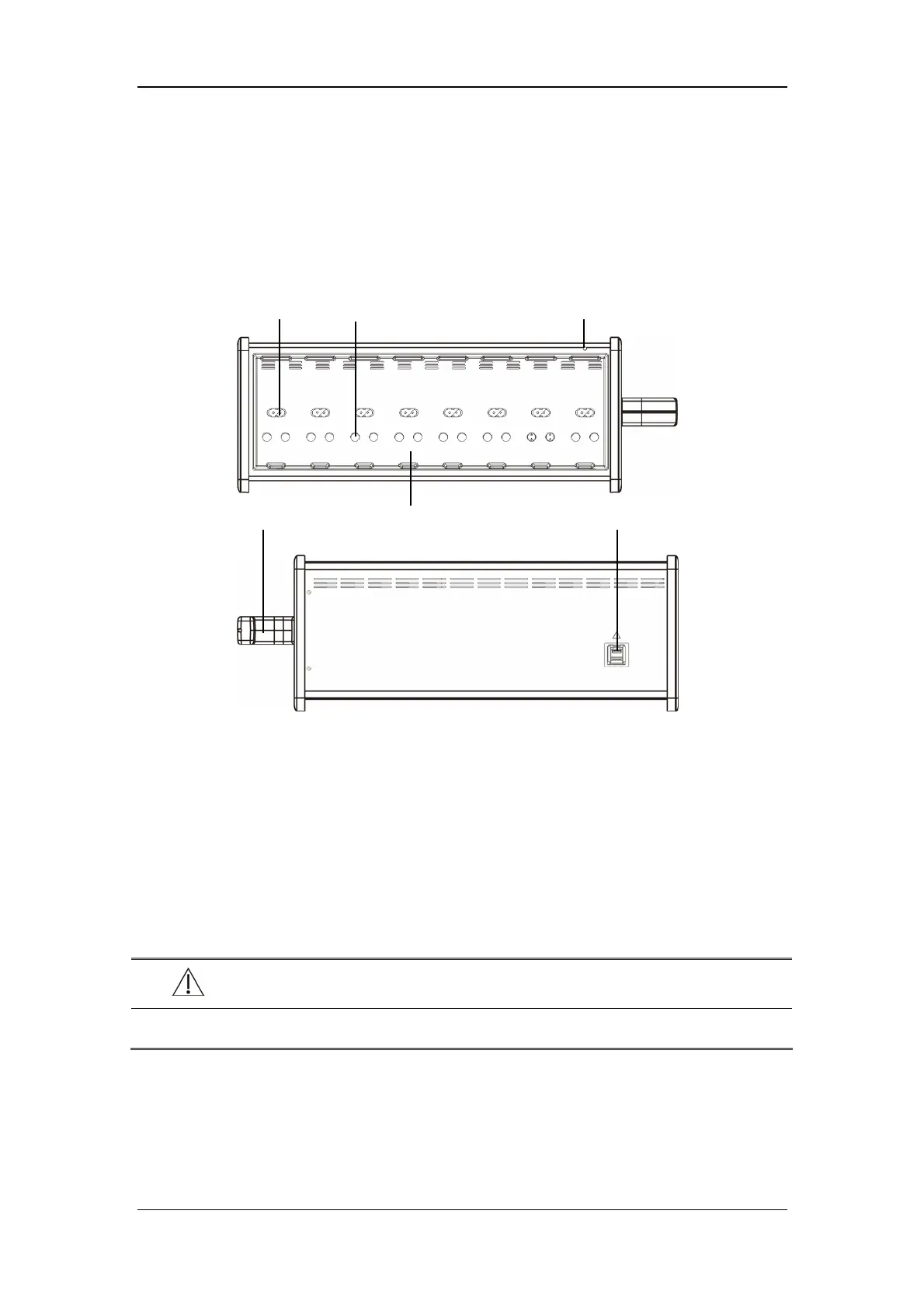

As shown in the figure above, there is an indicator telling the status of the SMR:
îš„ On: when the SMR works normally.
îš„ Off: when the SMR disconnects from the patient monitor, there is a problem with the
power, or the patient monitor shuts down.
The SMR can be connected to the patient monitor through their SMR connectors via a SMR
cable.
WARNING
z Do not touch the filters and contacts when the patient monitor is on.
Slot Handle SMR connector
Indicator
Filter Contact
