Monitoring ECG/Resp
7-21
area and the ventricles of the heart in the line between the respiratory electrodes.
This is particularly important for neonates.

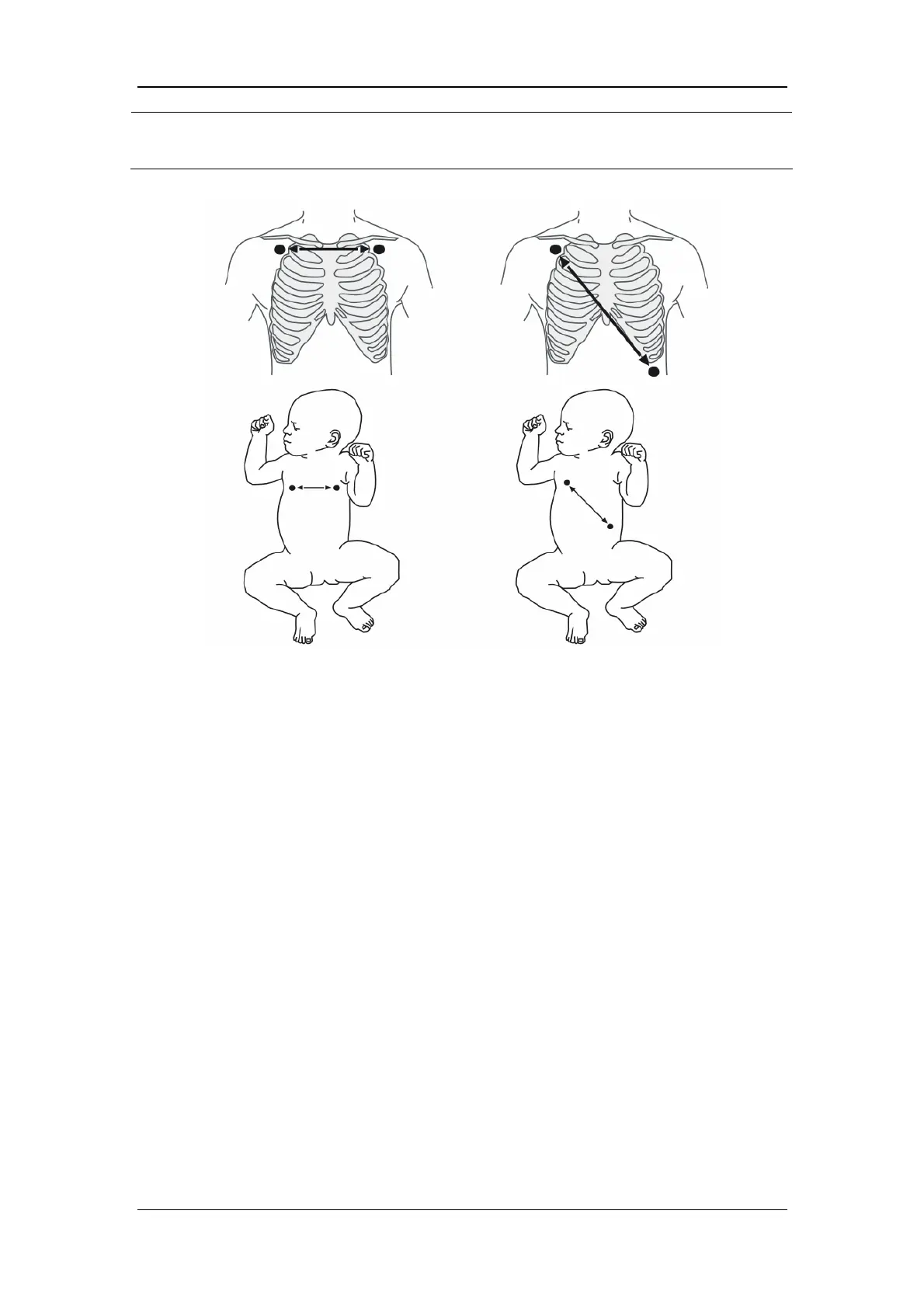

Lead I Lead II
7.9.3 Choosing the Respiration Lead
In the [Resp Waveform] menu, select [Lead] and toggle between [I] and [II].
7.9.4 Changing the Apnea Alarm Delay
The apnea alarm is a high-level alarm used to detect apneas. You can set the apnea alarm
delay time after which the patient monitor alarms if the patient stops breathing. In the [Resp
Setup] menu, select [Apnea Time] and then select the appropriate setting.
7.9.5 Changing Resp Detection Mode
In either [Resp Setup] or [Resp Waveform] menu, select [Detection Mode] and toggle
between [Auto] and [Manual].
