7.4 Understanding the ECG Display

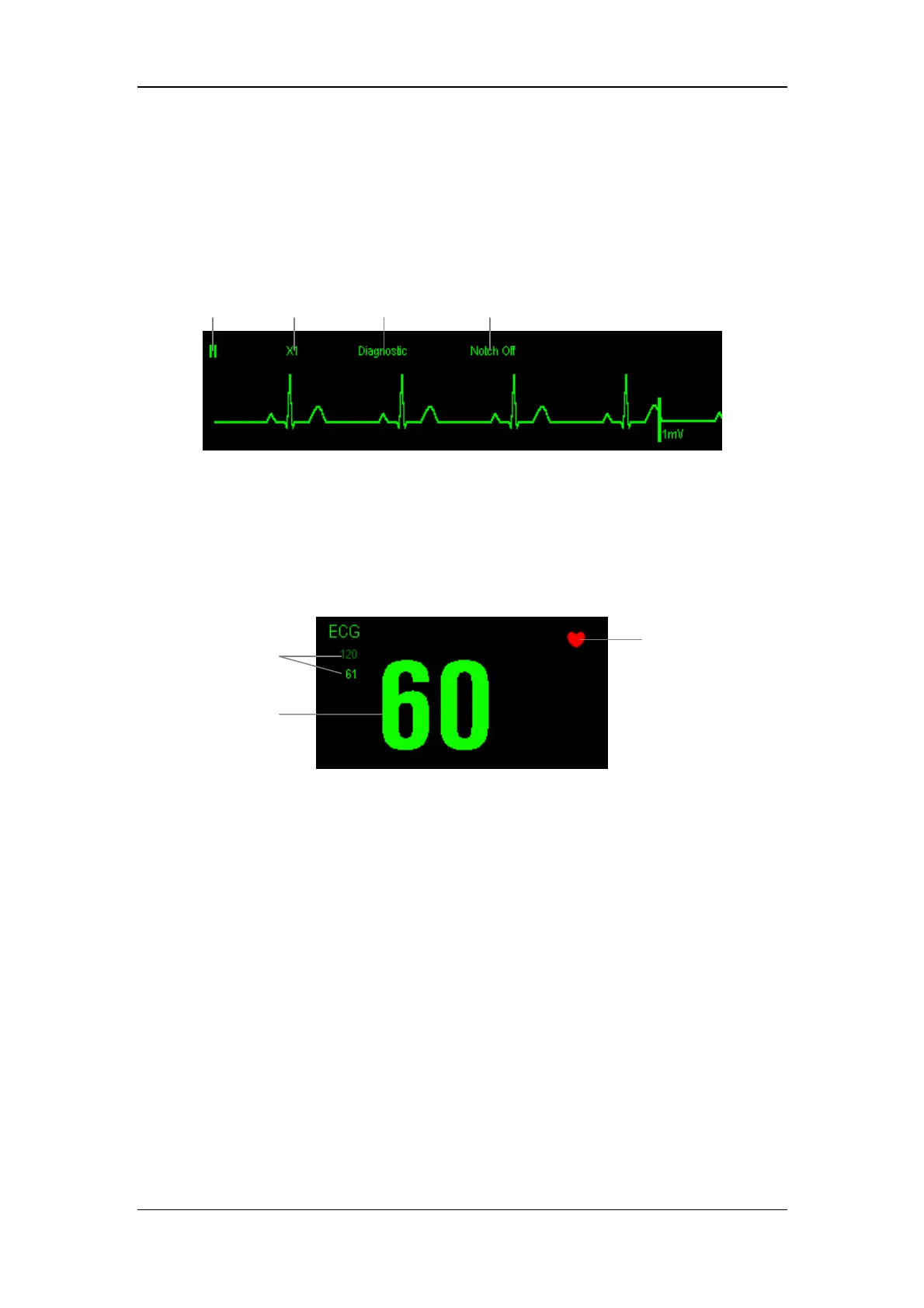

Below is a 5-lead ECG display screen. Your display may be configured to look slightly
different.
1. Lead label of the displayed wave
2. ECG gain
3. ECG filter label
4. Notch filter status
1. Current heart rate alarm limits
2. Current heart rate
3. Heart beat symbol
For 12-lead ECG display screen, refer to the section
7.8 12-Lead ECG Monitoring.
