2.4.2 Multi-Parameter Module

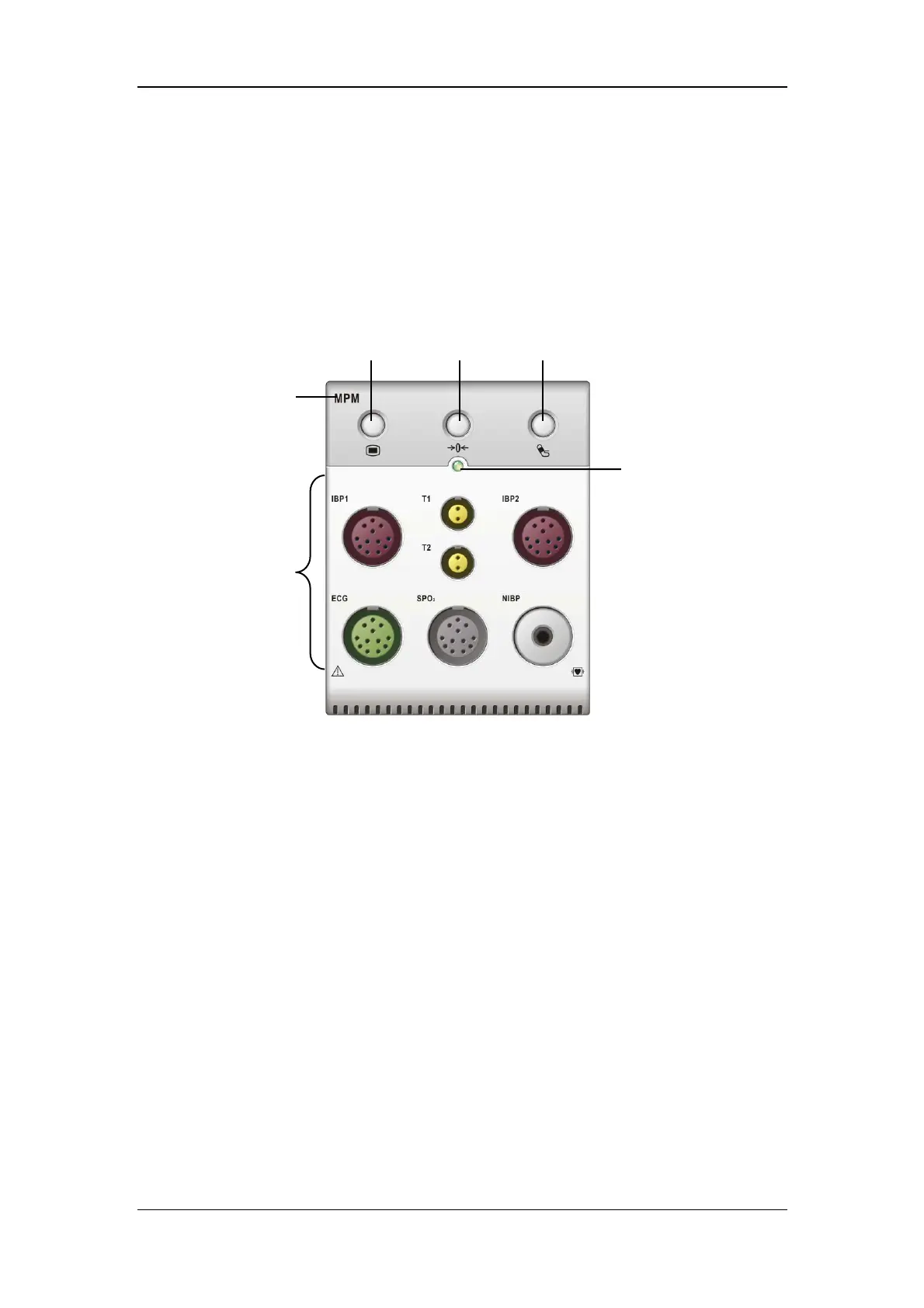

The multi-parameter module (MPM) incorporates multiple measurement modules. As
shown below, the module name is located at the upper left corner, all hardkeys on the upper
part, and all measurement connectors on the lower part. Other measurement modules look
similar to the MPM.
1. Module name
2. Setup key: press to enter the [MPM Setup] menu.
3. Zero key: press to enter the [Zero IBP] menu.
4. NIBP start/stop key: press to start or stop NIBP measurements.
5. Indicator
îš‹ On: when the patient monitor works correctly.
îš‹ Flash: when the module is plugged into the patient monitor.
îš‹ Off: when the module is either not in place or broken.
6. Measurement connectors
1
34
6
5
2
To Next Page
