10. Safety-related functions and interfaces
MiR600 User Guide (en) 08/2021 - v.1.0 ©Copyright 2021: Mobile Industrial Robots A/S. 111
Emergency stop button released Emergency stop button pushed
Emergency stop circuit faulty

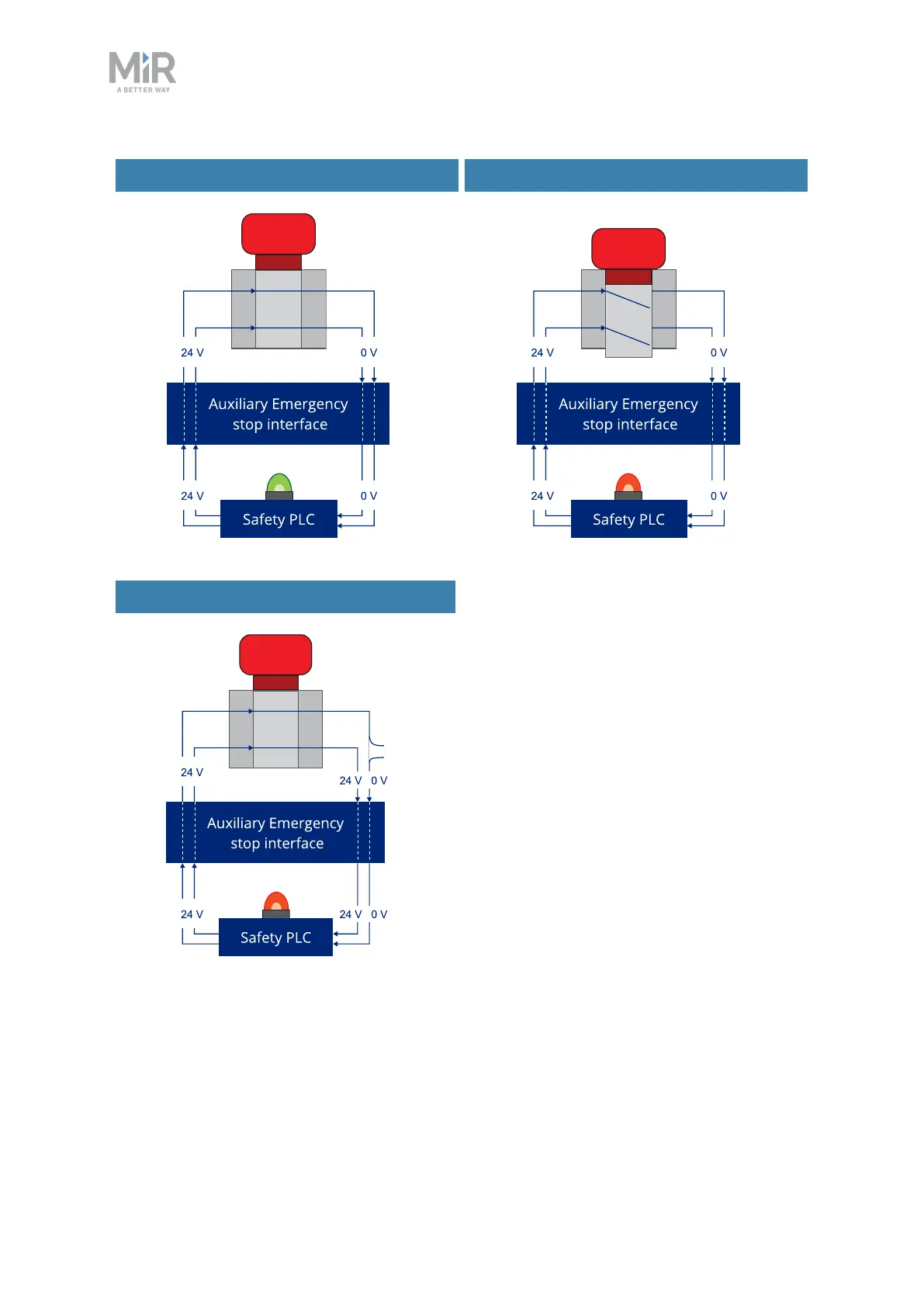

Figure 10.8. If the input pins deliver 24 V to the robot, it can operate. When you push a connected Emergency
stop button, both pins deliver 0 V, and the robot enters Emergency stop. If the pins do not deliver the same
input, the robot enters Protective stop until the circuits are fixed.
