Installation

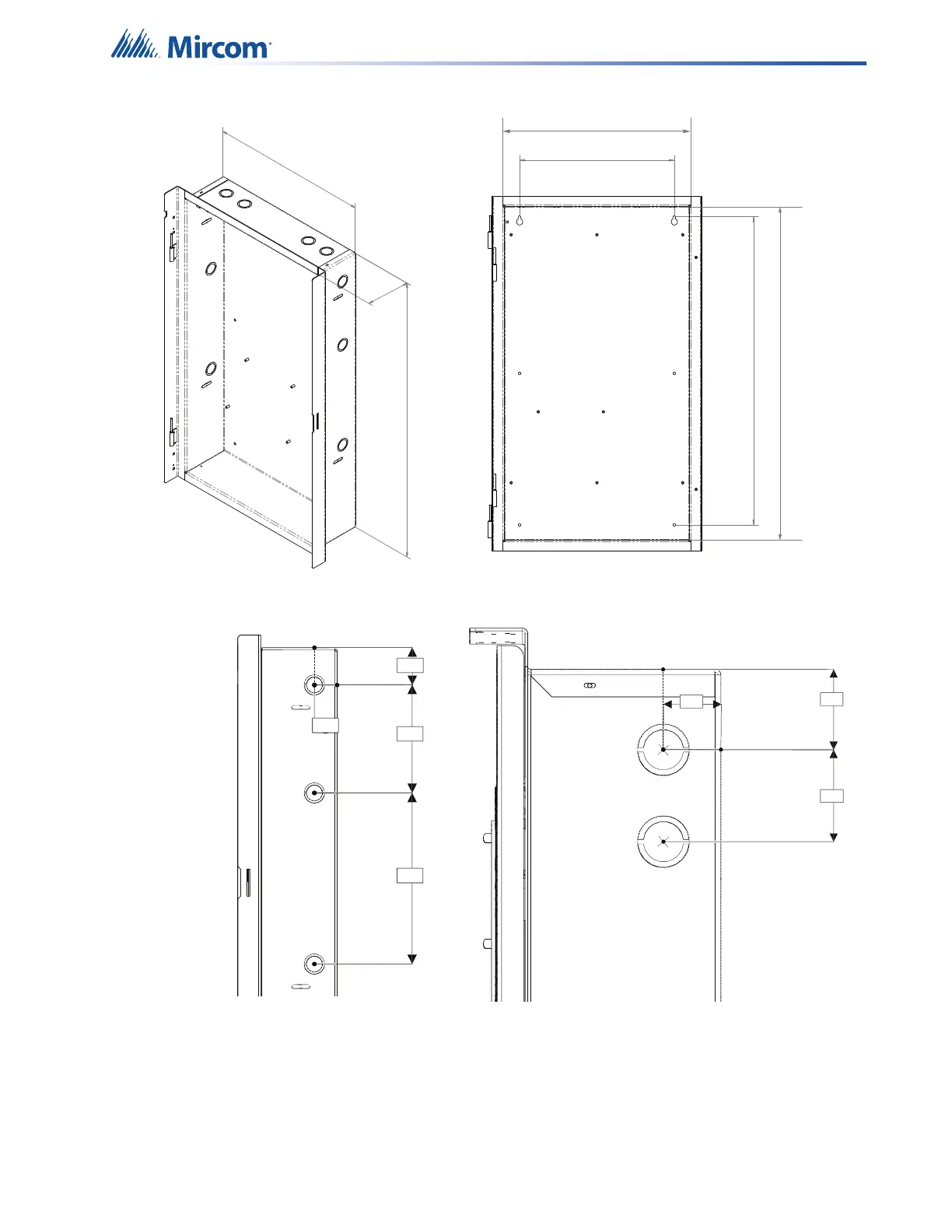

Figure 1 QX-mini backbox installation dimensions
Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.2” x 26”
Distance between horizontal mounting screws 12”
Distance between vertical mounting screws 23.5”
Complete Dimensions of Enclosure 16.3” x 5.5” x 27.5”
2.1 "
1.3 "
6.0 "
9.5 "
Side View
1.3 "
1.7 "
2.0 "
Top View
14.50
26.00
4.20
12.00
23.90
14.50
26.00
