Indicators & Controls
Page Inhibited

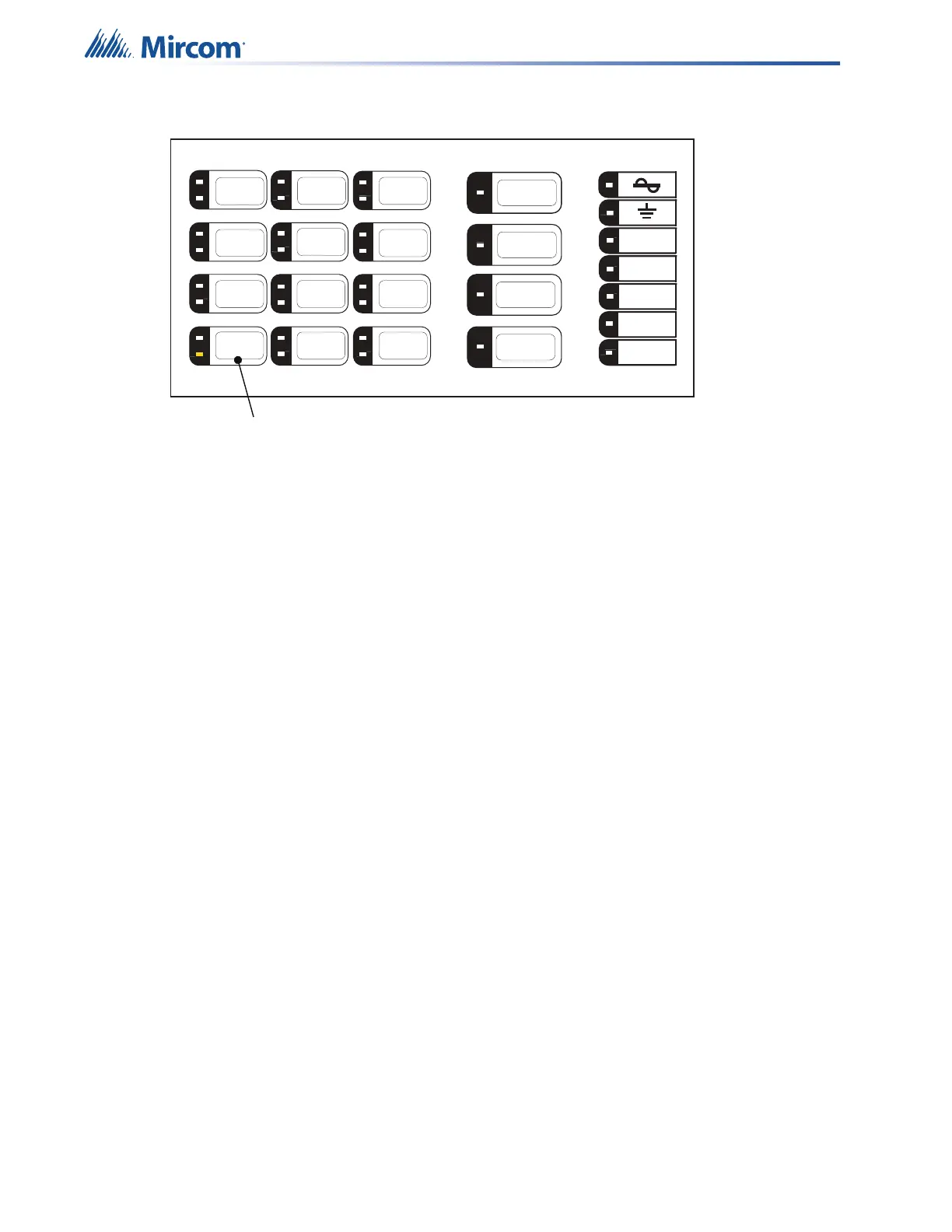

An FACP activated audio control feature of the QX-mini which, during a First Alarm, prevents
voice paging for a user-set period of time.
In the configurator software, this feature may be enabled or disabled. If enabled, any button
may be assigned for Page Inhibited for the QX-mini and QX-mini-LOC. Any button‘s LED may
be set to flash yellow at the trouble rate during the Page Inhibited time period. In the above
example, the Zone 4 button is configured and labelled for the Page Inhibited function. The QX-
mini-RM System In Use LED will flash trouble yellow to indicate that a Page Inhibited is in
effect.
5.3 Main Board LED Indicators
There are LED indicators on the main board to help in troubleshooting. The LEDs indicate
Troubles, Alarms, Activity, and Status for components on the main board.
See Figure 57 on page 89 for the locations of the LEDs on the main board. See Table 15 on
page 89 for a description of what the LED colors indicate.
CPU
MESSAGE
ACTIVE
ALARM
ACTIVE
PRE-TONE
ACTIVE
READY
TO PAGE
ALL
CALL
VISUAL
INDICATOR
TEST
BELL
CONTINUOUS
SLOW WHOOP
CONTINUOUS
TEMPORAL
TONE (CODE3)
ALERT
EVACUATION
FALSE
ALARM
ALARM
CLEARED
ZONE 1
ZONE 2
ZONE 3
Page
Inhibited
Flashes
Yellow
CLEAR
SELECTION
Trouble /
Trouble Silence
