32
Installat
ion
8.
Remove necessary knockouts an
d attach conduit. Keep the
lower left knoc
kout for
the
dedicated AC power in.

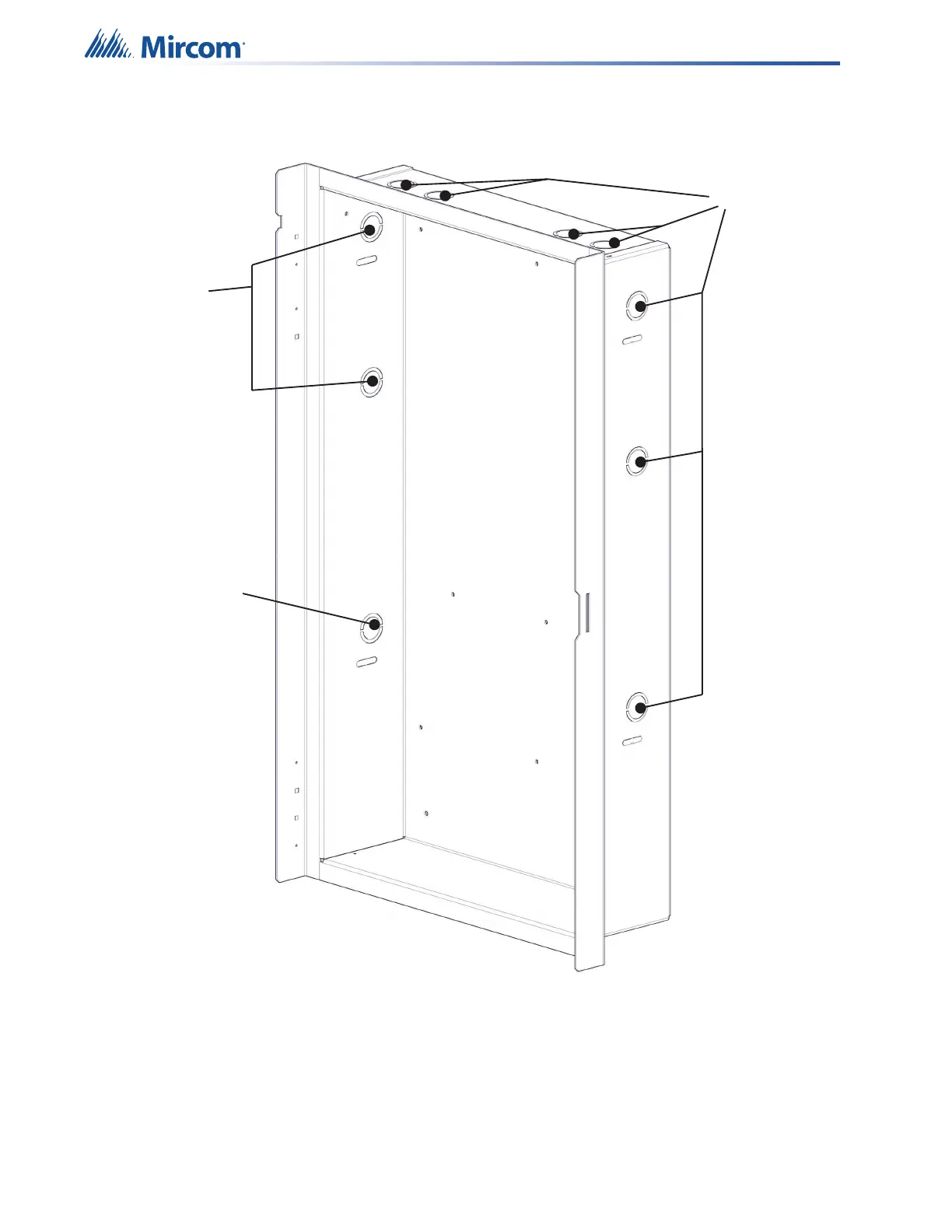

Figure 5
Conduit knockou
ts
9.
Attach the doors t
o the cha
ssis and then secure the ground
straps to the doors using the
wingnuts removed in step 3.
Knockouts
Dedicated
AC P
ower
Knockout
and
Conduit
Knockouts
31
