39
Installati
on
3.2.5
Surface Mounting the QX-mini-RM
T
o Surface Mount the Enclosure
1.
Open the QX-mini-RM.
2.
Unscrew the two hex nuts that are securing
the CH-1
124A PCB br
acket t
o the backbox
and then remove the br
acket from the enc
losure. Secure hex nuts for future use.

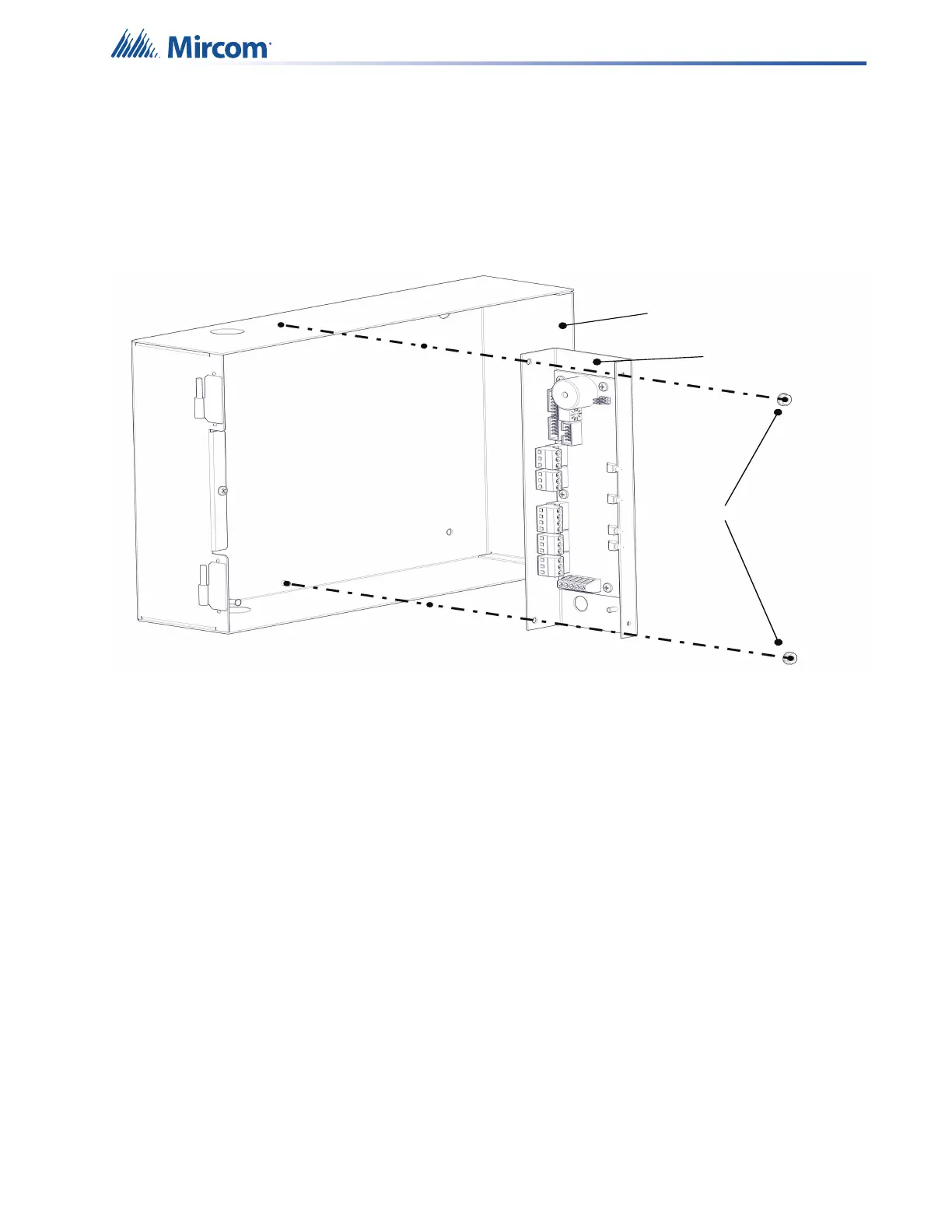

Figure 1
1
Hex nut r
emoval
3.
Unscrew th
e wingnuts securing the ground str
aps to the doors and then remo
ve the door
from the chassis. Secure wingnuts for future use.
Hexnuts
CH-1124A PCB
Backbox
38
40
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
9
The QX-Mini Emergency and Fire Alarm Audio System
10
Table 1 QX-Mini Models, Components, and Accessories
10
Table 2 Compatible Fire Alarm Control Panels
11
2 QX-Mini Overview
13
QX-Mini Components
14
Table 3 QX-Mini Components
14
QX-Mini Accessories
18
Table 4 QX-Mini Accessories
18
3 Installation
25
QX-Mini Mechanical Installation Dimensions
26
Figure 1 QX-Mini Backbox Installation Dimensions
27
Installing the QX-Mini Enclosure
28
Figure 2 Hex Nut Removal
29
Figure 3 Anchor Hole Marking
30
Figure 4 Mounting Screw Positions
31
Figure 5 Conduit Knockouts
32
Figure 6 Backplate Removal
34
Figure 7 QX-Mini Flush Mount
35
Figure 8 Flush Mount Conduit
36
Figure 9 BC-160 Cabinet
37
Figure 10 BC-160 Conduit
38
Figure 11 Hex Nut Removal
39
Figure 12 QX-Mini-RM Mounting Holes and Knockouts
40
Figure 13 Screw Removal
41
Figure 14 QX-Mini-LOC Mounting Holes
42
Figure 15 QX-Mini-LOC Knockouts and Board Anchors
43
Figure 16 QX-Mini-LOC Knockout and Board Anchors Detail
44
Figure 17 QX-Mini-LOC Mounting Holes
45
Main Board Connections
46
Figure 18 QX-Mini Main Board Terminals and Jumpers
46
Table 5 QX-Mini Main Board Terminals and Jumpers
46
Operating Power
48
Figure 19 AC Power Wiring
48
Figure 20 QX-Mini or QX-Mini-BP Battery Wiring
49
Figure 21 BC-160 and QX-Mini Full Wiring Setup
50
Figure 22 BC-160 Internal Wiring
51
Amplifier Module Connections
52
Figure 23 QAD-30 30W Amplifier Module Connections
52
Table 6 QAD-30 Amplifier Module Terminals
52
Figure 24 QAD-30 DIP Switch Positions
53
Table 7 QAD-30 DIP Switch Settings
53
Figure 25 Installing the Amplifier Module
54
QAS-2X8 Audio Zone Splitter Module Installation
55
Figure 26 QAS-2X8 Audio Zone Splitter Module Connections
55
Table 8 QAS-2X8 Audio Zone Splitter Module Terminals
55
Figure 27 Installing the Audio Zone Splitter Module
56
Remote Microphone Connections
57
Figure 28 QX-Mini-RM Terminals and Jumper Locations
57
Table 9 QX-Mini-RM Terminals and Jumper
57
Local Operating Console Connections
58
Figure 29 Exploded View of QX-Mini-LOC Showing Mounting of RAX-LCD
59
Figure 30 Exploded View of QX-Mini-LOC Showing Mounting of RAX-LCD-LITE
60
4 Wiring
61
Wiring Tables
62
Table 10 Wiring Table for Input Circuits (Relay Inputs and Synch Inputs)
62
Table 11 Wiring Table for NAC Circuits
62
Table 12 Wiring Table for 70V Speakers
63
Table 13 Wiring Table for 25V Speakers
63
Main Board Terminal Connections
64
Figure 31 Main Board Terminal Blocks
64
Figure 32 SLC Loop Wiring - Class B
64
Figure 33 SLC Loop Wiring - Class a
65
Figure 34 Synchronized Input from FACP Wiring - Class B
65
Figure 35 Synchronized Input from FACP Wiring - Class a
66
Figure 36 FACP Relay Activation - Single Stage
66
Figure 37 FACP Relay Activation - Two Stage
67
Figure 38 Synchronized Input from QX-Mini Wiring - Class B Single Slave
67
Figure 39 Synchronized Input from QX-Mini Wiring - Class B Multiple Slaves
68
Figure 40 Synchronized Input from QX-Mini Wiring - Class B Multiple Slaves
69
Figure 41 Wiring for Alarm, AC Trouble, and Common Trouble Relays
70
Figure 42 NAC Circuit Wiring - Class B
70
Figure 43 NAC Circuit Wiring - Class a
71
Figure 44 DCLC, Style 7 Wiring the QX-Mini to Multiple QX-Mini-BP Panels
71
Figure 45 DCLA, Style 4 Wiring the QX-Mini to Multiple QX-Mini-BP Panels
72
Figure 46 Wiring the QX-Mini to Multiple QX-Mini-RM Remote Microphones
73
Amplifier Connections
74
Figure 47 Class a and Class B Wiring Examples
75
Figure 48 Amplifier Connectors and DIP Switch
76
QAS-2X8 Audio Zone Splitter Connections
77
Figure 49 Audio Zone Splitter Wiring to Speakers
77
Figure 50 Wiring 1 Amplifier to the Audio Zone Splitter
78
Figure 51 Wiring 2 Amplifiers to the Audio Zone Splitter
78
Backup Amplifier
79
Figure 52 Wiring 2 Amplifiers to the Audio Zone Splitter
79
Figure 53 Backup Amplifier Wiring
79
Power Supply Connections
80
Figure 54 Power Supply Connections
80
Table 14 Power Supply Electrical Ratings
80
UL Power-Limited Wiring Requirements
81
Figure 55 UL Power-Limited Circuits
81
5 Indicators & Controls
82
Indicators and Controls
83
Main Display Leds and Controls
83
Figure 56 the QX-Mini Main Display Panel
83
Main Board LED Indicators
88
Figure 57 Locations of the QX-Mini Main Board Leds and Buzzer
89
Table 15 Descriptions of QX-Mini Main Board Leds
89
Amplifier Module LED Indicators
91
Figure 58 Locations of the QAD-30 Amplifier Module Leds
91
Remote Microphone Indicators
92
Figure 59 the QX-Mini-RM Display Panel Leds
92
Table 16 Descriptions of QAD-30 Amplifier Module Leds
92
Figure 60 QX-Mini-RM Leds
95
Table 17 QX-Mini-RM Board LED
95
Local Operating Console Indicators and Controls
96
Figure 61 LOC - Local Operating Console
96
6 Operation
97
Circuit Types
98
Initiating Device Circuit
98
NAC (Output) Circuits Types
99
NAC Sync Modes
99
NAC Evacuation Codes
101
Figure 62 Evacuation Codes
101
Audio Message Playback
102
Paging
102
Audio Priorities
104
7 Testing
105
Testing for QX-Mini or QX-Mini-LOC
106
Testing for QX-Mini-RM
106
8 Sample Implementations
107
Sample Uses of the QX-Mini System
108
Figure 63 Public Annunciation System for Multi-Floor Building
109
Figure 64 Public Annunciating System for a Single Floor Multi-Use Building
110
Figure 65 Conventional Fire Alarm
111
Figure 66 Fire Alarm Panel Linked Via SLC to Master Panel
113
Figure 67 Fire Alarm Control Panel with Distributed QX-Mini System
114
9 Configuration
115
QX-Mini Main or Booster Board Switch Locations
116
Figure 68 QX-Mini DIP Switch Location
116
Figure 69 DIP Switch Positions
117
Table 18 Panel Address DIP Switch Bits
117
DIP Switch Configuration
118
Remote MIC or LOC Switch Locations and Configuration
118
Figure 70 QX-Mini-RM and QX-Mini-LOC Board
118
Figure 71 QX-Mini-RM and QX-Mini-LOC Rotary Switch Close up
119
10 System Checkout
120
System Checkout
121
10.2 Troubleshooting
121
Figure 72 QX-Mini Board Leds
122
11 Appendix A: Specifications and Features
124
Table 19 QX-Mini and QX-Mini-BP Specifications and Features
124
12 Appendix B: Power Supply & Battery Calculations
126
12.0 Appendix Appendix C: ULI Compatible Devices
128
13.1 Synchronized Strobes
128
Table 20 ULI Compatible Synchronized Strobes
128
14 Appendix D: ULC Compatible Speakers
129
Table 21Table of ULC Compatible Speakers
129
15 Appendix E: UL Compatible Speakers with Mircom QAD-30 QX-Mini Amplifier and Temporal 520Hz Square Wave Low Frequency Signal
130
15.0 Appendix E: UL Compatible Speakers with Mircom
130
Mircom Amplifier
130
15.2 Mircom Temporal 520Hz Square Wave Low Frequency Signal
130
15.3 System Sensor Speakers
131
15.4 Gentex Speakers
132
15.5 Wheelock Speakers
133
16 Appendix F: Digital Voice Messages
134
17 Warranty and Warning Information
135
