Mircom QX-mini User Manual

72
Wiring

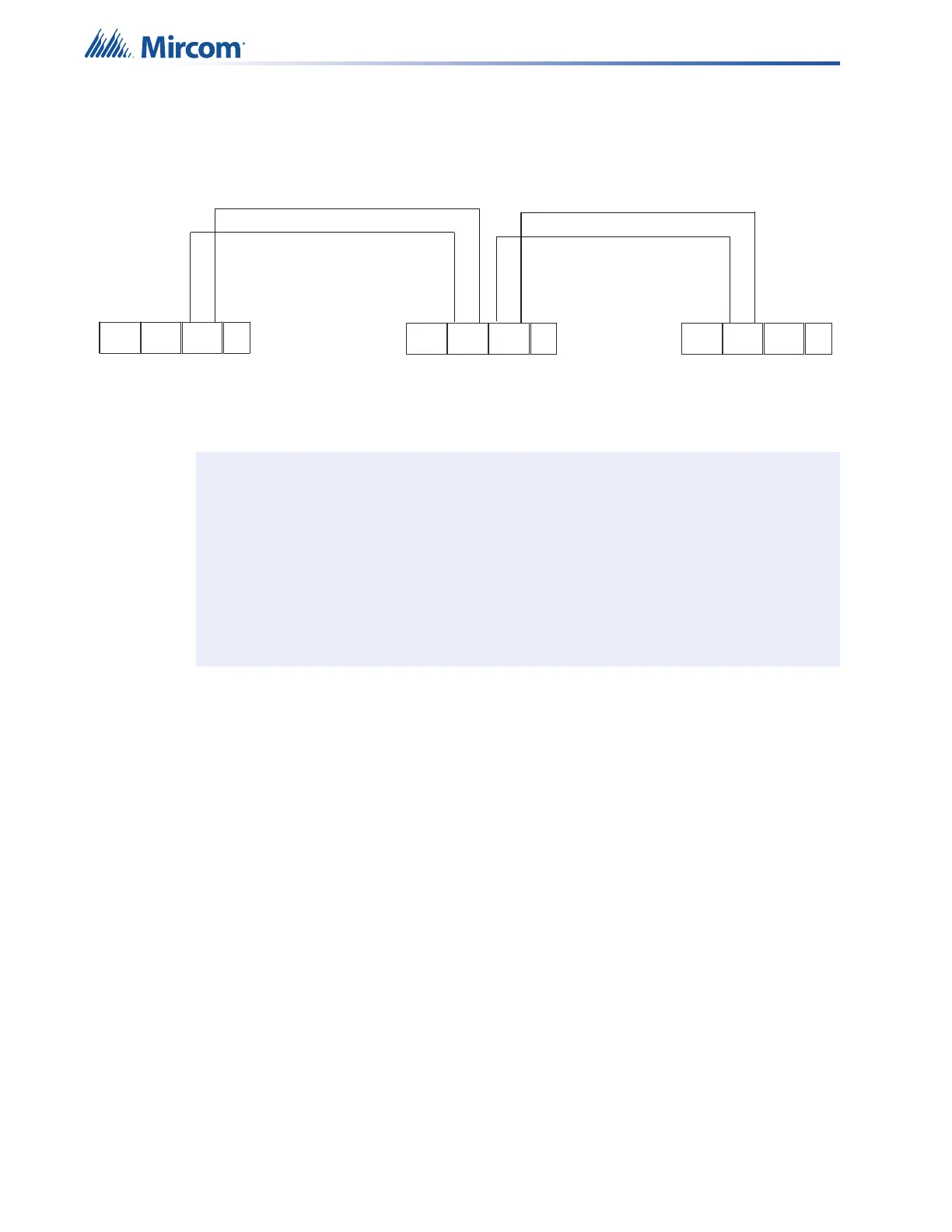

Figure 45 DCLA, Style 4 wiring the QX-mini to multiple QX-mini-BP panels
Notes: The maximum RS-485 wiring run between each node is 1000 feet or 305 metres.
A maximum of five QX-mini-BP booster panels for each QX-mini main panel is
supported.
Use 18-22 AWG twisted unshielded pair.
Maximum capacitance conductor to conductor is 13 pF/foot.
Recommended cable: Belden 5320UJ002 (unshielded)
TS17
TS6
TS1TS14
RMIC
RS-485
RS-485 RS-485
INOUT
AUX
24V
+S
-
+S
-
+S
-
+
-
TS17
TS6
TS1
RMIC
RS-485
RS-485 RS-485
OUT
+S
-
+S
-
+S
-
TS17
TS6
TS1TS14
RMIC
RS-485
RS-485 RS-485
INOUT
AUX
24V
+S
-
+S
-
+S
-
+
-
QX-mini-BP Booster Panel
QX-mini-BP Booster Panel
QX-mini Master Panel
IN
TS14
AUX
24V
+
-
-
+
-
+
-
+
-
+
DCLA, Style 4 Wiring
