38
Installat
ion

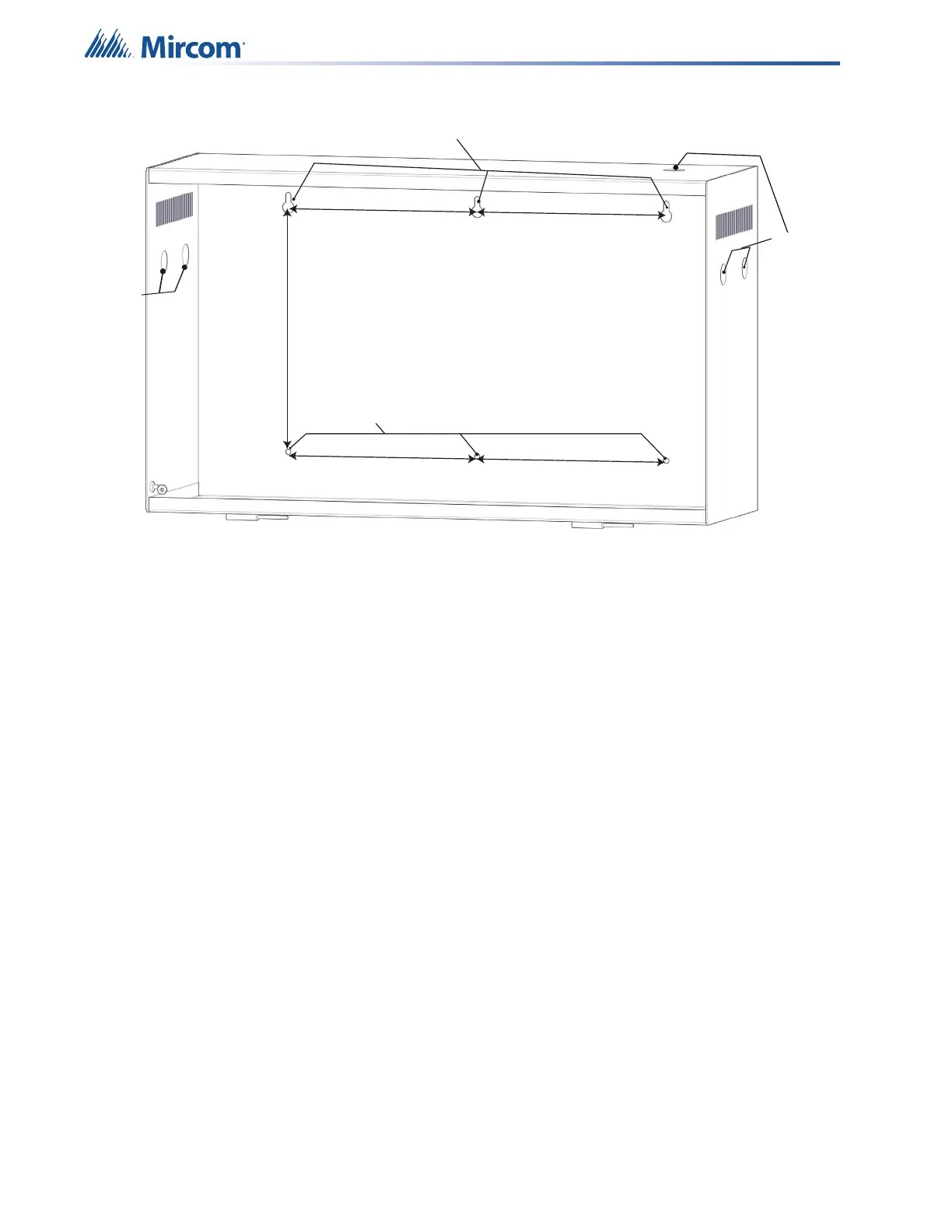

Figure 10
BC-160 conduit
5.
Mount the backbox
into the wall using si
x mounting bolts.
6.
Connect the BC-160 Cabinet to the Control
Panel cabinet with conduit
between the
adjacent knock-outs.
Screw Holes
Knockouts
Knockouts
Screw Holes
8.0”
8.0”
8.0”
8.0”
10.5”
37
39
