Installation
3.6.1 Installing the Audio Zone Splitter Module
To Connect the Audio Zone Splitter Module to a QX-mini or QX-mini-BP Board
1. Replace one standoff for each screw on the right side of the QX-mini main board as
shown in Figure 27.
2. Attach ribbon cable between P7 on the QX-mini or QX-mini-BP board to P1 on QAS-2X8
audio zone splitter board.
3. Place QAS-2X8 board so its screw holes align with the standoffs.
4. Secure QAS-2X8 using four screws.

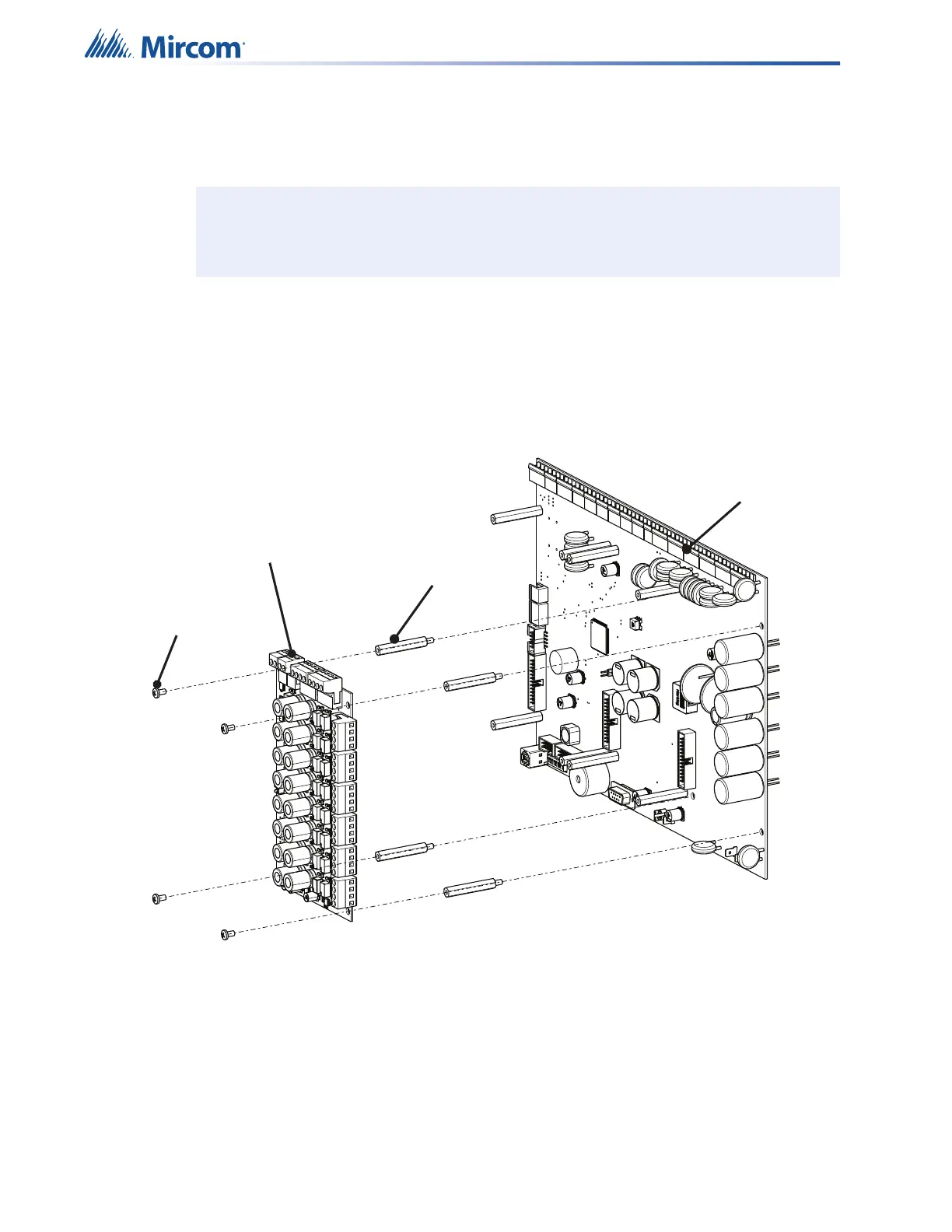

Figure 27 Installing the audio zone splitter module
Note: Ensure ALL AC and battery connections are disconnected before attempting to
install or remove any component. Otherwise, board damage may occur.
i
QX-mini Board
Stando
Audio zone
splitter
Screw
