Mitsubishi Electric MELSEC iQ-F Series - Communication Example: CC-Link IE TSN Class A Remote Stations

168
9 PROGRAMMING
9.2 Communication Example Between the Master Station and Local Station

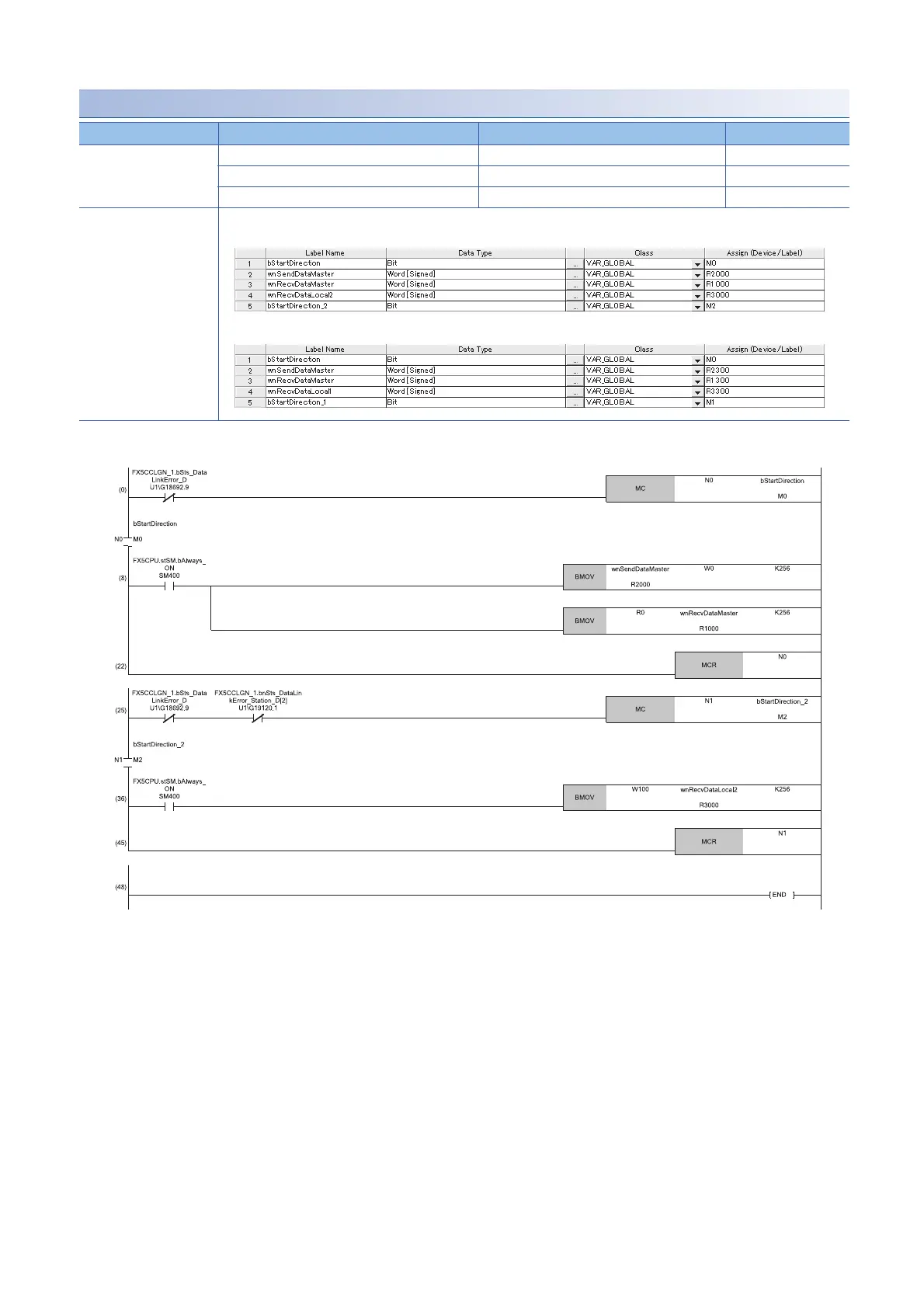

Local station (station No.1, station No.2)
Local station (station No.1)
Classification Label name Description Device
Module label FX5CCLGN_1.bSts_DataLinkError_D Data link error status of own station SB0049
FX5CCLGN_1.bnSts_DataLinkError_Station_D[1] Data link status of each station (station No.1) SW00B0.0
FX5CCLGN_1.bnSts_DataLinkError_Station_D[2] Data link status of each station (station No.2) SW00B0.1
Label to be defined Define global labels as shown below:
• Local station (station No.1)
• Local station (station No.2)
(8) Communication program with the master station (station No.0)
(36)Communication program with the local station (station No.2)
