Appendix 8 Connection Method for MR-J5(W)-G
Appendix 8 Connection Method for MR-J5(W)-G
This section describes how to configure the settings for connection with the MR-J5(W)-G and how to use various functions.
For details on the wiring and parameters of the MR-J5(W)-G, refer to the manual for the MR-J5(W)-G.
For the network settings of the FX5-CCLGN-MS, refer to the following.
Page 129 PARAMETER SETTINGS
The available MR-J5(W)-G firmware versions are as follows:
Setting method
The following shows an example of how to use the MR-J5(W)-G.
Setting GX Works3

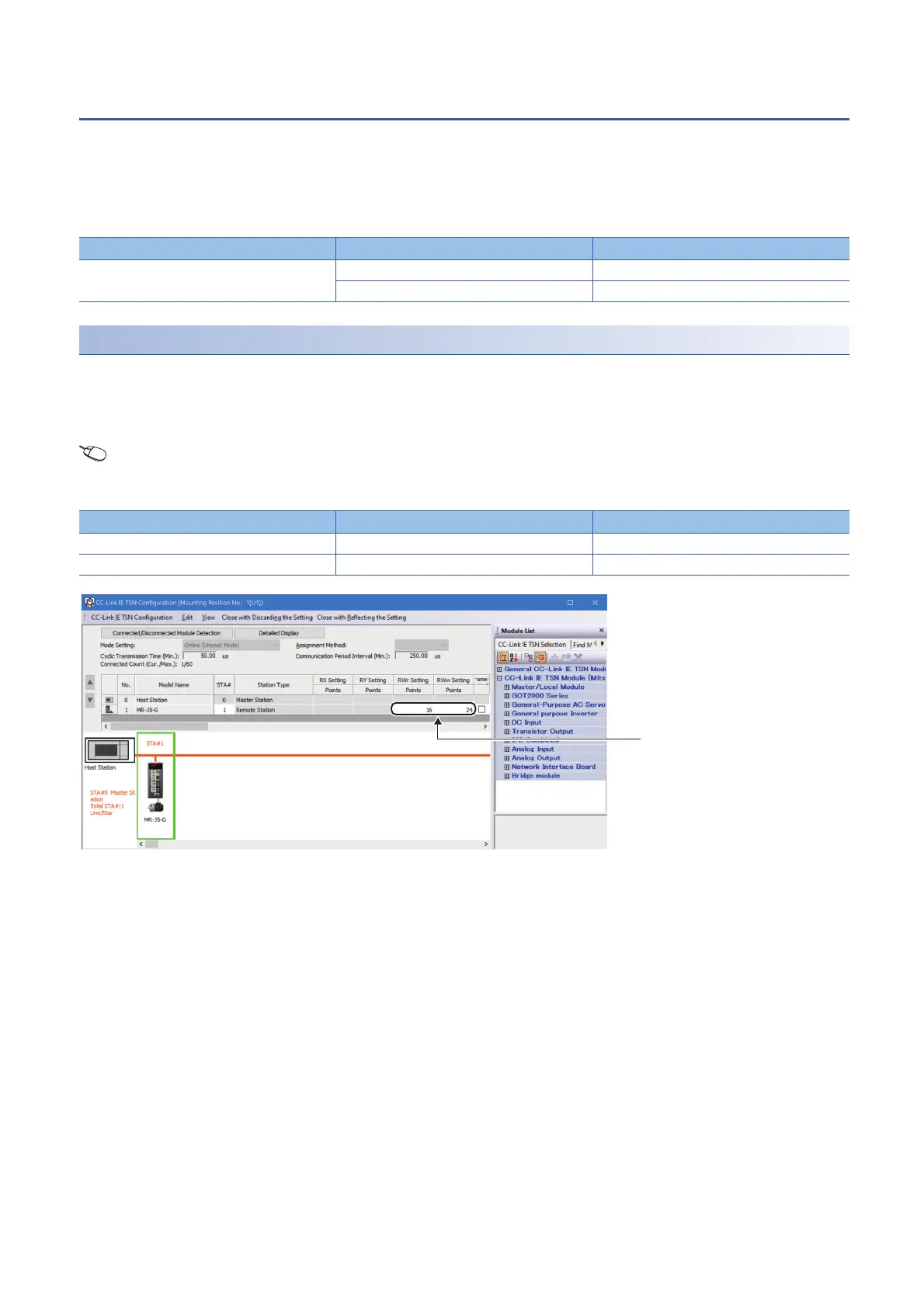

1. Configure "RWr Setting" and "RWw Setting".
[Navigation window] [Parameter] [Module Information] Target module [Module Parameter (Network)] [Basic
Settings] [Network Configuration Settings]
The numbers of points in RWr and RWw required for each mode are listed below.
Device name Mode Version
MR-J5(W)-G Profile mode A4 or later
Point table mode B8 or later
Mode RWr RWw
Profile mode 14 points or more 21 points or more
Point table mode 18 points or more 13 points or more
(1) Set the numbers of points in RWr and RWw required for each mode.
