9.4 Communication Example Between the Master Station and Servo Amplifier
Checking the network status
After starting up the system, check whether data link can be normally performed. For the check, use the CC-Link IE TSN/CC-
Link IE Field diagnostics of the engineering tool.
1. Connect the engineering tool to the FX5 CPU module on the master station.
2. Start the CC-Link IE TSN/CC-Link IE Field diagnostics.
[Diagnostics]  [CC-Link IE TSN/CC-Link IE Field Diagnostics]

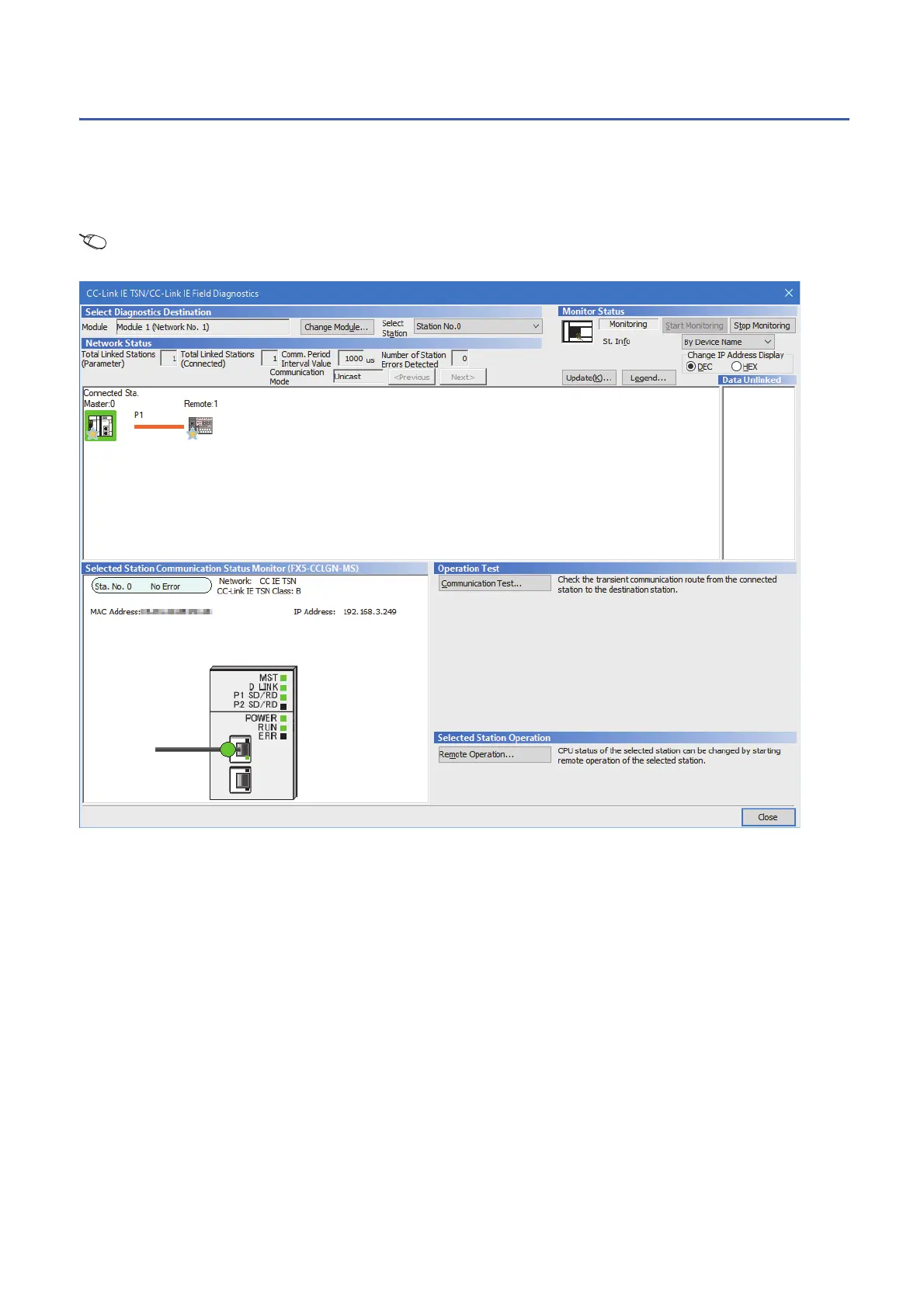

If the following display appears, a data link is normal.
If an error icon appears in "Network Status" area, use the CC-Link IE TSN/CC-Link IE Field diagnostics to identify the cause of
the error and take corrective actions. ( Page 201 Checking the Network Status)
