10 TROUBLESHOOTING
10.2 Checking the Module Status
199
10
Module Information List

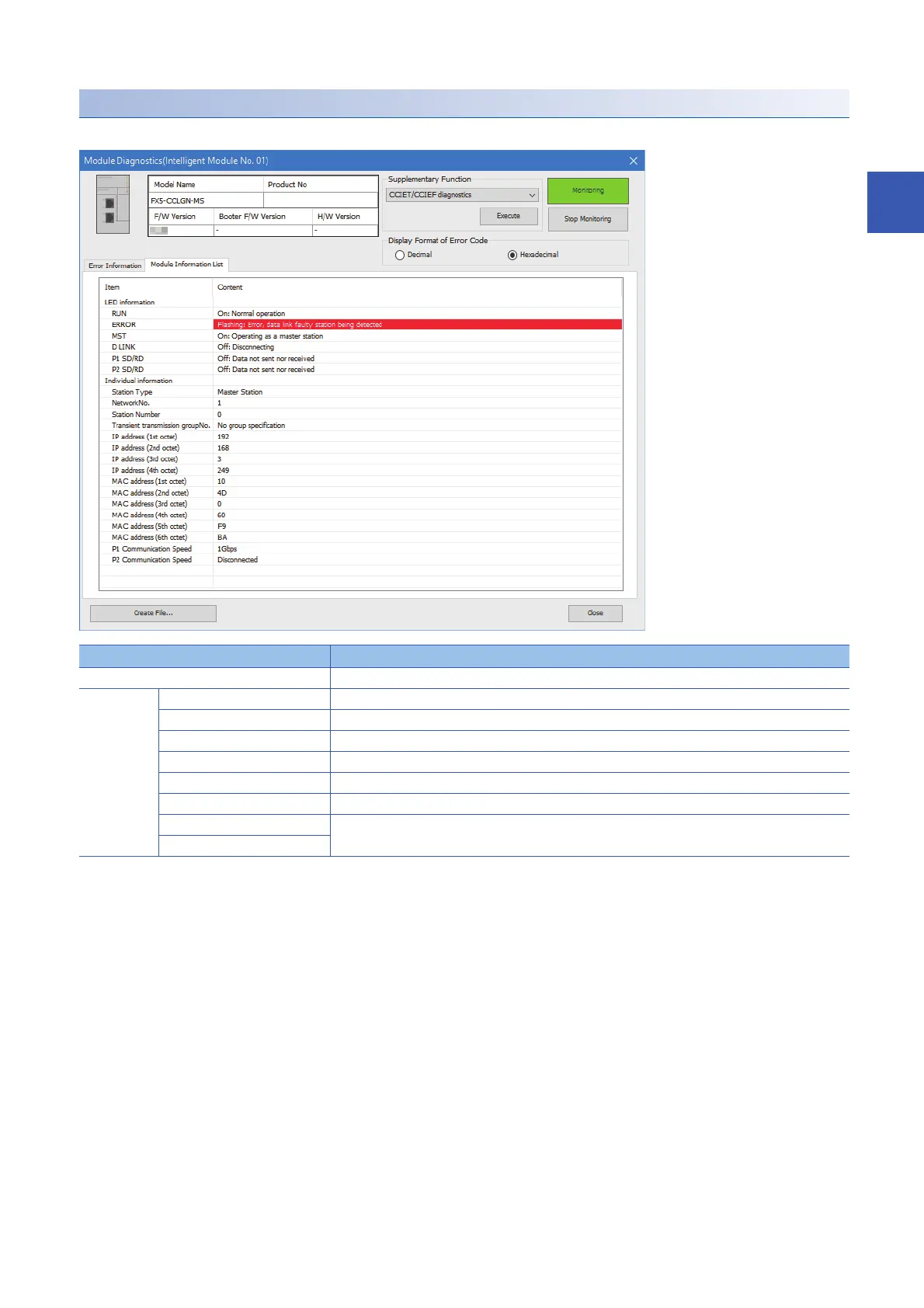

The LED information and individual information of the FX5-CCLGN-MS are displayed in the [Module Information List] tab.
Item Description
LED information Displays the LED status of the FX5-CCLGN-MS.
Individual
information
Station Type Displays the station type set for the selected module.
Network No. Displays the network number set for the selected module.
Station Number Displays the station number set for the selected module.
Transient transmission group No. Displays the transient transmission group number set for the selected module.
IP address Displays the IP address set for the selected module.
MAC address Displays the MAC address of the selected module.
P1 Communication Speed Displays the communication speed set using the auto-negotiation function.
P2 Communication Speed
