V5A51 -
Transmission
23E-5-30
Caution
D
Take care not to mistake the thrust bearing No.2
mounting direction.

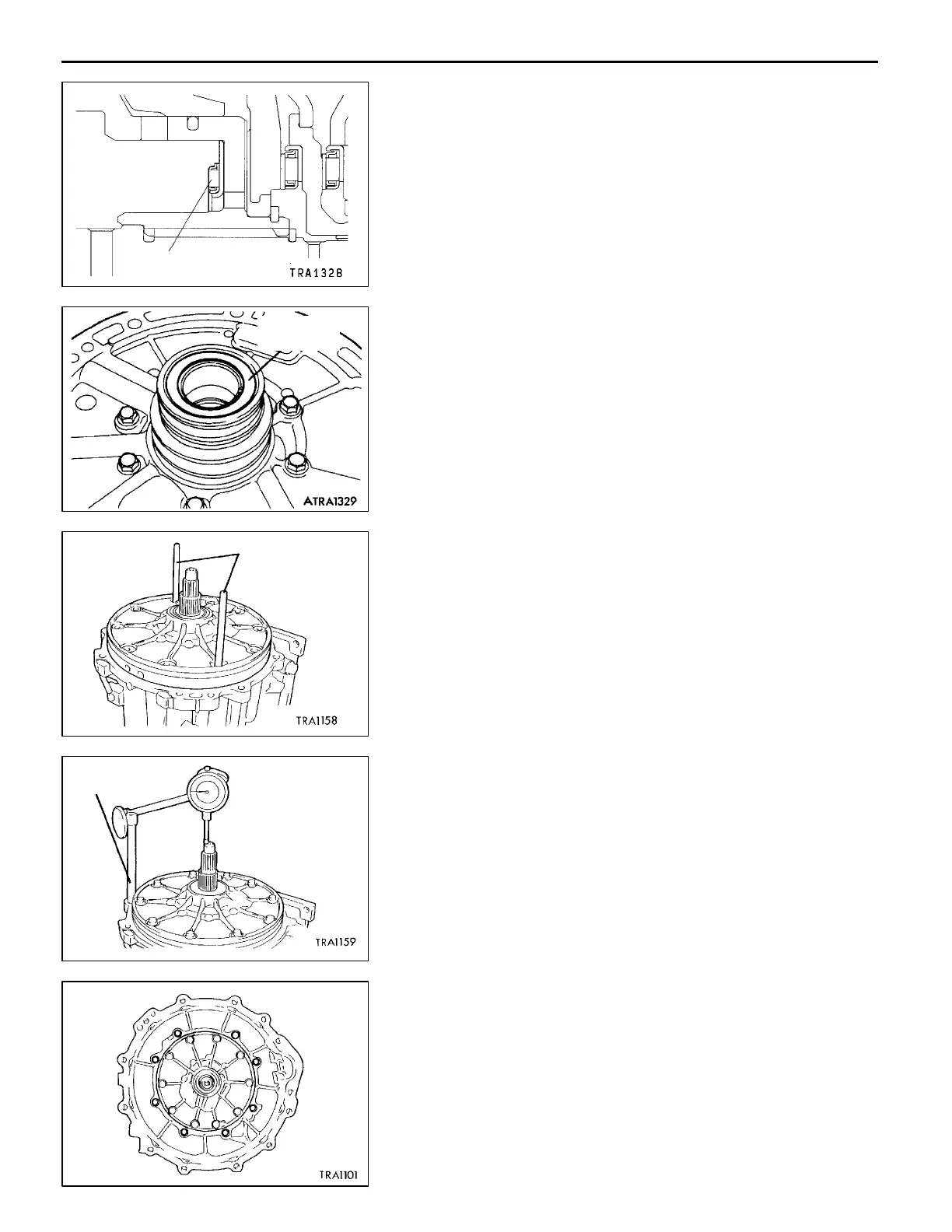

41. Apply Vaseline or petrolatum jelly on the thrust race No.1,
and then install on the oil pump.
42. Install the special tool at the position shown in the
illustration, and using this as a guide, install the oil pump
and gasket.
Caution
D
Never reuse the gasket.
43. Tighten the ten oil pump mounting bolts to the specified
torque.
44. Using the special tool, set a dial gauge as shown in the
illustration. Measure the end play of the input shaft, and
replace the thrust race installed in step 41 with a suitable
one so that the e n d play may meet the standard value.
Then, reassemble.
Standard value: 0.25 - 0.81 mm
45. Measure the end play again, an d confirm that it is within
the standard value.
46. Install the converter housing.
47. Tighten the eight converter housing mounting bolts to
the specified torque.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Thrust bearing No.2
Thrust race
No.1
MD998412
MD998316
