Appendix
10/05 AWB8230-1541GB
196

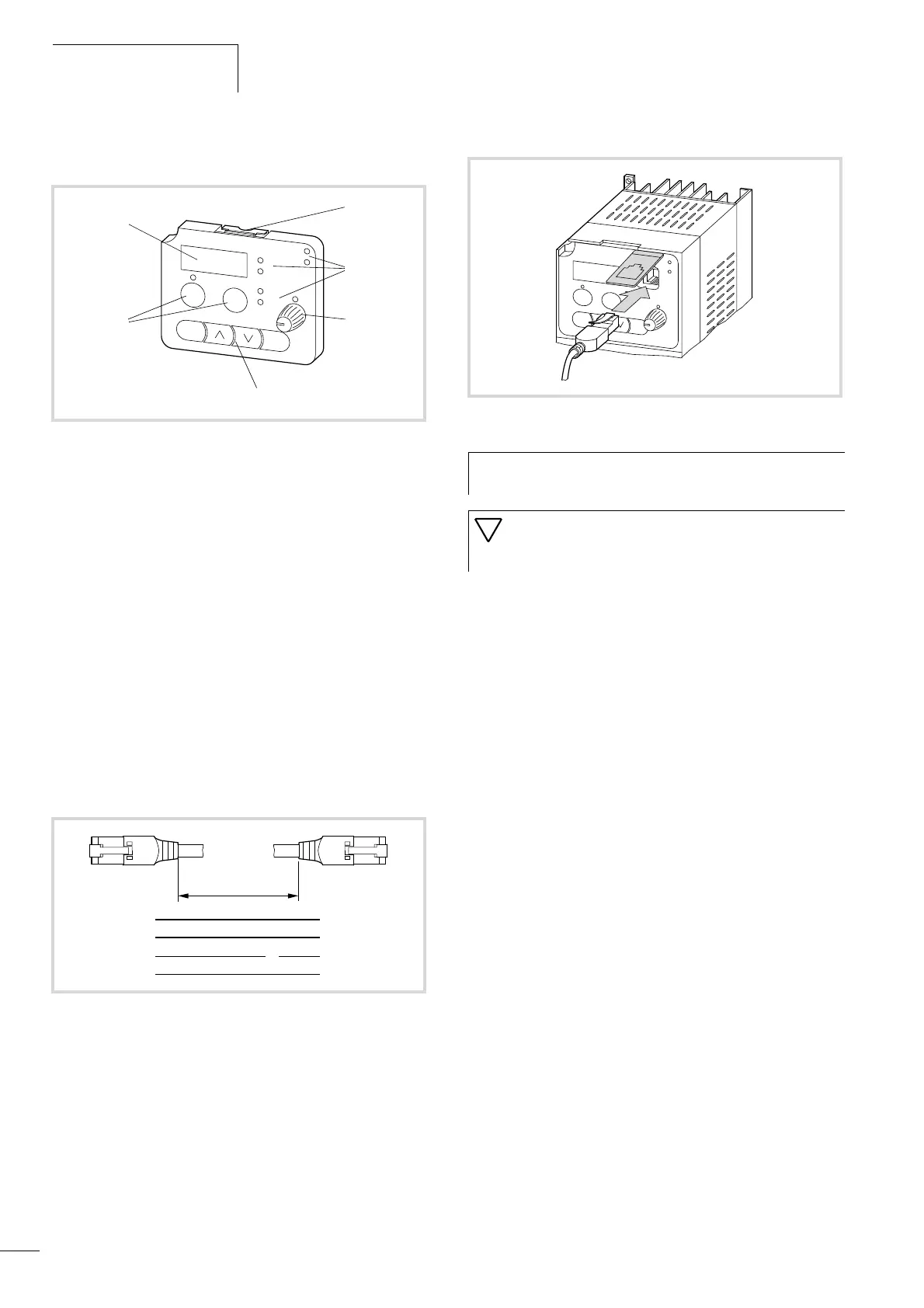

Layout of the DEX-KEY-6…
Connecting LCD keypad to DF51
The keypad allows a remote parameter programming and
operation of the DF51 frequency inverters.
To connect frequency inverter DF51 and keypad, use a
prefabricated connection cable (DEX-CBL-…).
Figure 163:Layout of the DEX-KEY-6…
a Four-digit digital display
b Fixing clip (only for use when mounting in DV51)
c LED status display
d Reference value potentiometer (only with DEX-KEY-6)
e Keyboard for altering parameters
f Pushbuttons (Start, Stop)
CON-RJ45 = RJ 45 modular interconnect/communications
connector
Figure 164:DEX-CBL-...-ICS connection cables
Hz
A
RUN
POWER
ALARM
PRG
I
O
PRG
ENTER
a
b
c
d
e
f
l
l
DEX-CBL-1M0-ICS 1 m
DEX-CBL-3M0-ICS 3 m
Figure 165:Connecting keypad DEX-KEY-6… with DF51
h
You do not need any tools to connect the optional
keypad.
Caution!
Connect the keypad and the connection cable only in a
voltage-free state and do not use force.
A
RUN
PRG
Hz
PRG
EN
TER
I
O
POW
ER
ALARM
