Moeller DF51 - Motor Reactors

10/05 AWB8230-1541GB
Motor reactors
213
Motor reactors

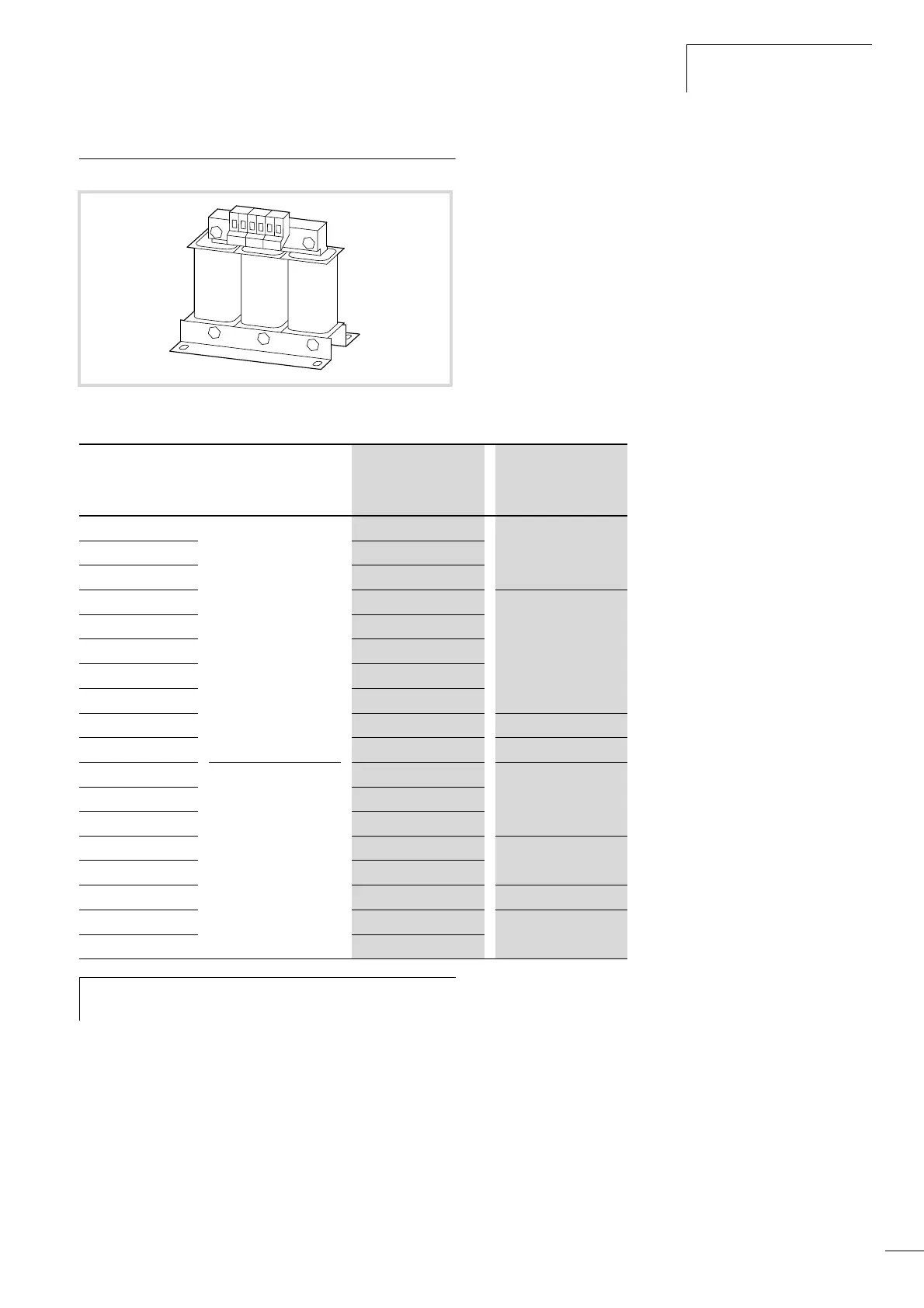

Figure 187:Motor reactor DEX-LM…
DF51- Maximum output
voltage
Rated operational
current (motor
current) I
e
[A]
Assigned motor
reactor
320-4K0 3 ~ 240 V + 10 % 17.5 DEX-LM3-035
320-5K5 24
320-7K5 32
322-025 1.6 DEX-LM3-005
322-037 2.6
322-055 3
322-075 4
322-1K1
5
322-1K5 8 DEX-LM3-008
322-2K2 11 DEX-LM3-011
340-037 3 ~ 480 V + 10 % 1.5 DEX-LM3-005
340-075
2.5
340-1K5 3.5
340-2K2 5.5 DEX-LM3-008
340-3K0 7.8
340-4K0
8.6 DEX-LM3-011
340-5K5 13 DEX-LM3-016
340-7K5 16
h
For technical data for the DEX-LN series mains reactors,
see installation instructions AWA8240-1711
