ioLogik E2210 User’s Manual Click&Go Logic
5-10

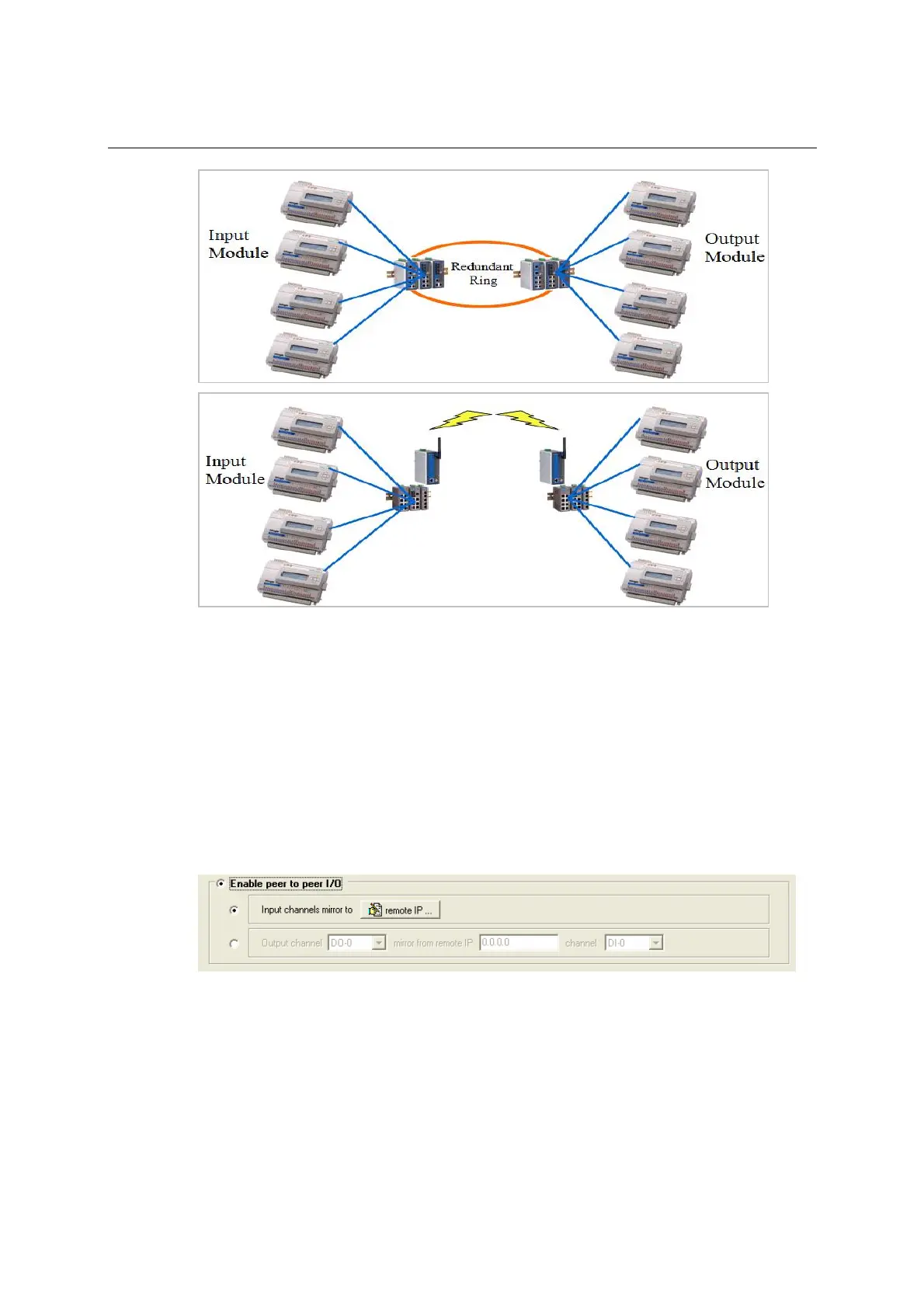

Peer-to-peer I/O is configured in two steps. On the input module, a rule is defined to send I/O data to one
or more destination IP addresses. On the output module, a rule is defined for a specific output channel to
mirror a specific channel on the input module.
Configuring Input for Peer-to-Peer I/O
Configuring the peer-to-peer I/O input module will use up one Click&Go rule on the ioLogik E2210
providing the input channels. In the Click&Go tab, open a new rule’s configuration window and enable
peer-to-peer I/O. Select “Input channels mirror to”, then click “remote IP…” and enter up to five IP
addresses as destinations. Each IP address should belong to an ioLogik E2210 server that will provide
output channels for the peer-to-peer I/O. You may repeat this process with additional peer-to-peer I/O
rules if you wish to mirror input channels to more than five destinations. If all 16 rules are used for
peer-to-peer I/O, a total of 80 destination IP addresses can be entered.
Make sure that the specific input channels that will be mirrored are set to DI mode, not Event Counter
mode.
