ioLogik E2210 User’s Manual Introduction
1-7

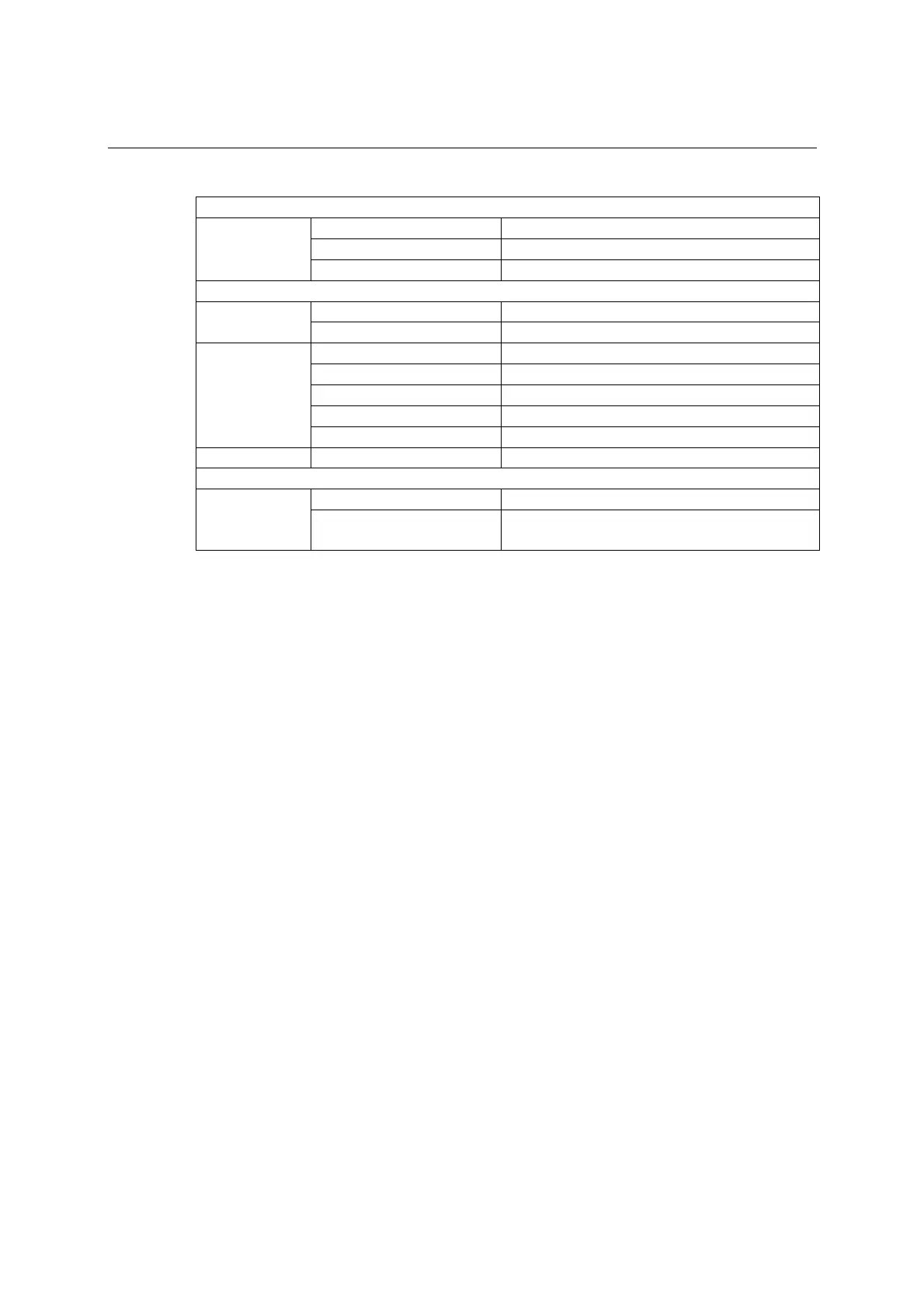

LED Indicators
Ethernet
orange Connected to a 10 Mbps Ethernet connection.
green Connected to a 100 Mbps Ethernet connection.
Ethernet
(flashing) Transmitting or receiving data
System
red Power is on
PWR
off Power is off
red System error
green (steady) ioLogik E2210 is functioning normally
green (flashing) Click&Go ruleset is active
green & red (flashing) ioLogik E2210 is in Safe Status
RDY
off Power is off or there is a power problem.
Serial (flashing) Serial port is receiving/transmitting data
I/O
green ON status DI x12 pins
DO x8 pins
Field PWR
off OFF status
