ioLogik E2210 Series User’s Manual Pinouts and Cable Wiring
F-2

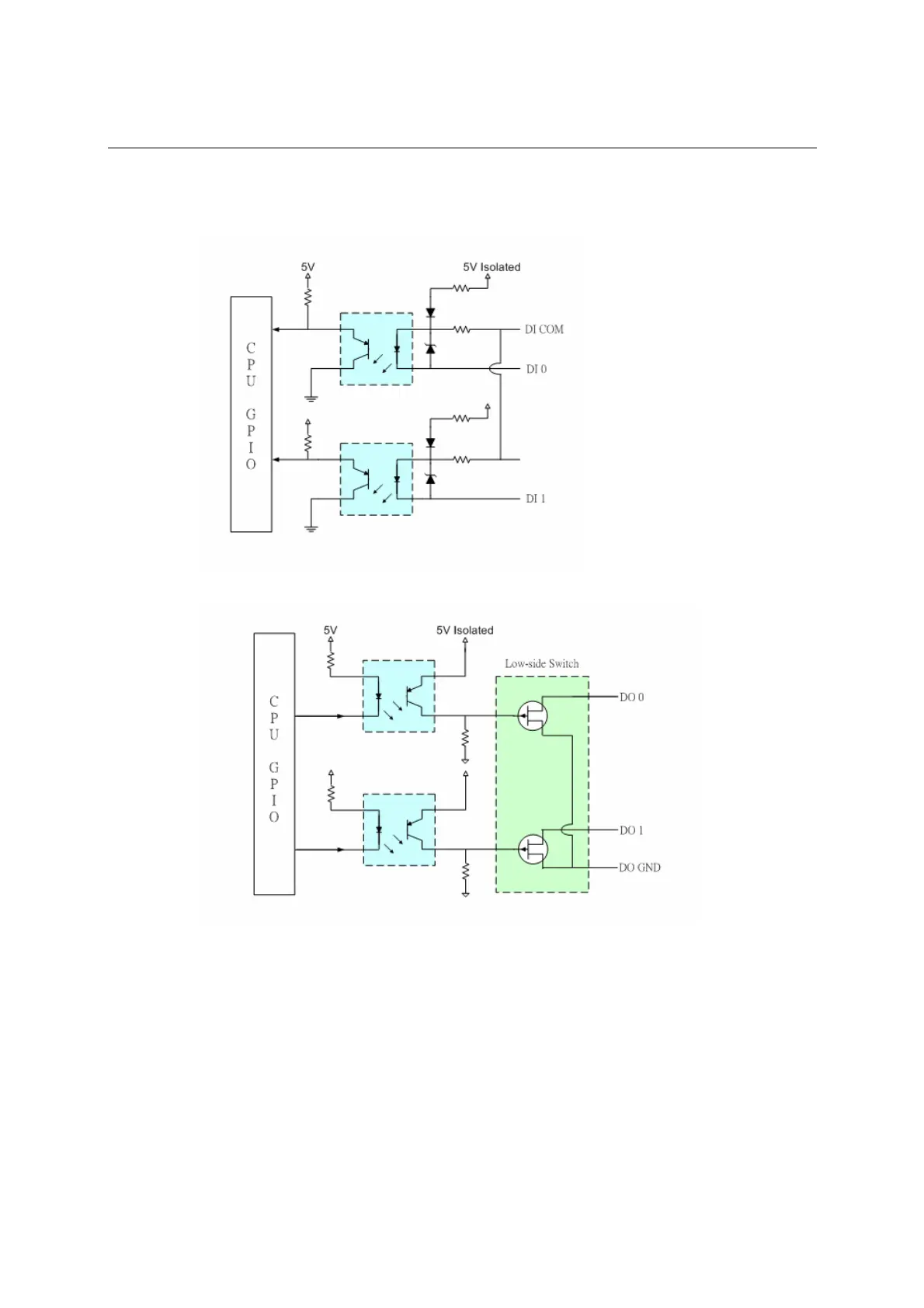

Digital I/O Structure
Digital Input Structure
Digital Output Structure
