For Event Counter mode, you may configure the low width and high width in multiples of 0.5 ms. The
counter should be set to either start, or stop. If it is in stop mode, the counter can be activated by the
Modbus command. Make sure that the Counter Filter is not set to 0, otherwise the counter will never be
activated.
You may use the Power On Setting field to specify the channel’s setting when the ioLogik E2210 is
powered on, and the Safe Status Setting field to specify channel’s setting when the ioLogik E2210 enters
Safe Status. Note that Safe Status is controlled by the Host Connection Watchdog, which is disabled by
default. If the Host Connection Watchdog is disabled, the ioLogik E2210 will never enter Safe Status and
your Safe Status settings will have no effect.
DO Channels

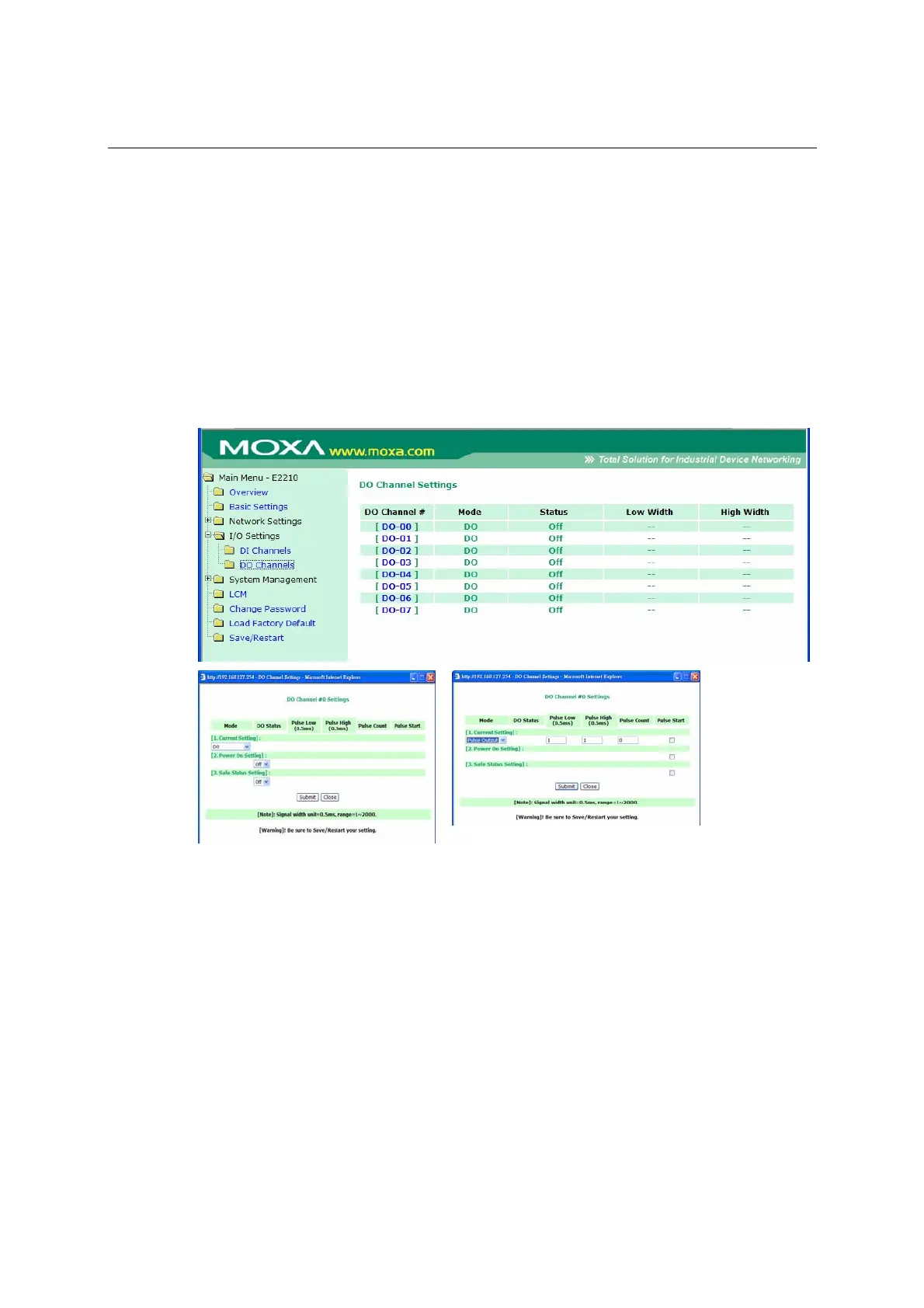

On the DO Channels page, you may configure each DO (digital output) channel by clicking on the
channel. DO Channels can operate in DO mode or Pulse Output mode. In DO mode, output is either on or
off. In Pulse Output mode, a configurable square wave is generated.
You may use the Power On Setting field to specify the channel’s setting when the ioLogik E2210 is
powered on, and the Safe Status Setting field to specify channel’s setting when the ioLogik E2210 enters
Safe Status. Note that Safe Status is controlled by the Host Connection Watchdog, which is disabled by
default. If the Host Connection Watchdog is disabled, the ioLogik E2210 will never enter Safe Status and
your Safe Status settings will have no effect.
