ioThinx 4510 Series Software Tools
4-24

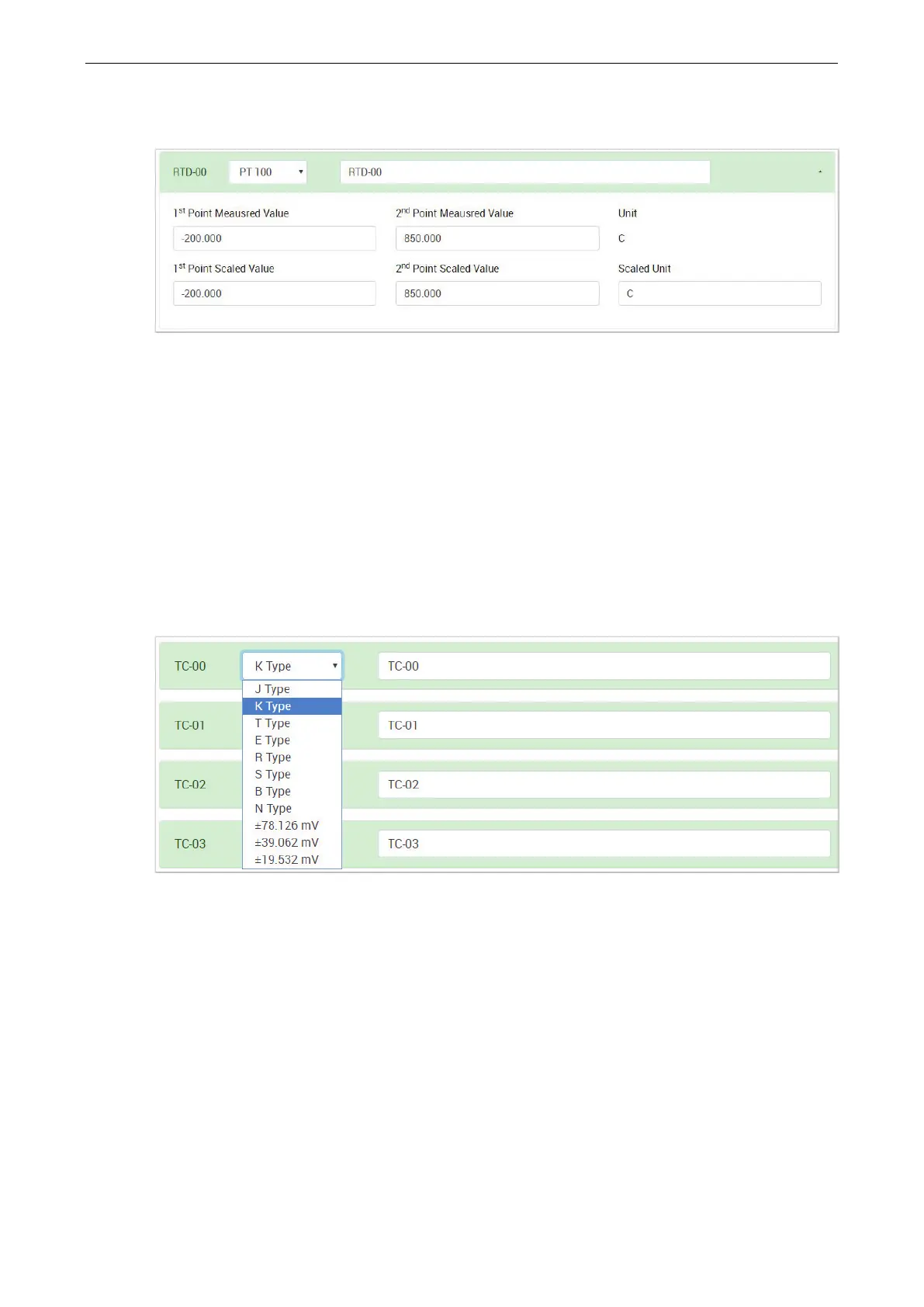

Channel Name: The channel name is used for representing this channel (max. length = 16, “.” character is
not allowed).
1
st
Point Measured Value: The 1
st
point value in the range of channel mode to be scaled to the 1st Point
Scaled Value (acceptable input value depends on the type of sensor).
2
nd
Point Measured Value: The 2
nd
point value in the range of channel mode to be scaled to the 2nd
Point Scaled Value (acceptable input value depends on the type of sensor).
Unit: The unit of the measured value.
1
st
Point Scaled Value: The scaled value of the 1
st
point (-4294967295 to 4294967295).
2
nd
Point Scaled Value: The scaled value of the 2
nd
point (-4294967295 to 4294967295).
Scaled Unit: The unit of the scaled value (max. length = 8, “.” character is not allowed).
TC Channel Settings
Sensor Type Drop-Down List: It lists all of the sensor types, which can be connected to this channel.
Select the sensor type for each channel (option: J Type, K Type , T Type , E Type , R Type , S Type , B
Type , N Type , ±19.532 mV, ±39.062 mV, ±78.126 mV, or Disable).
