NPort W2150/2250 Plus Series User’s Manual Web Console: System Management
8-17
System Management> Maintenance> Configuration
Export
T

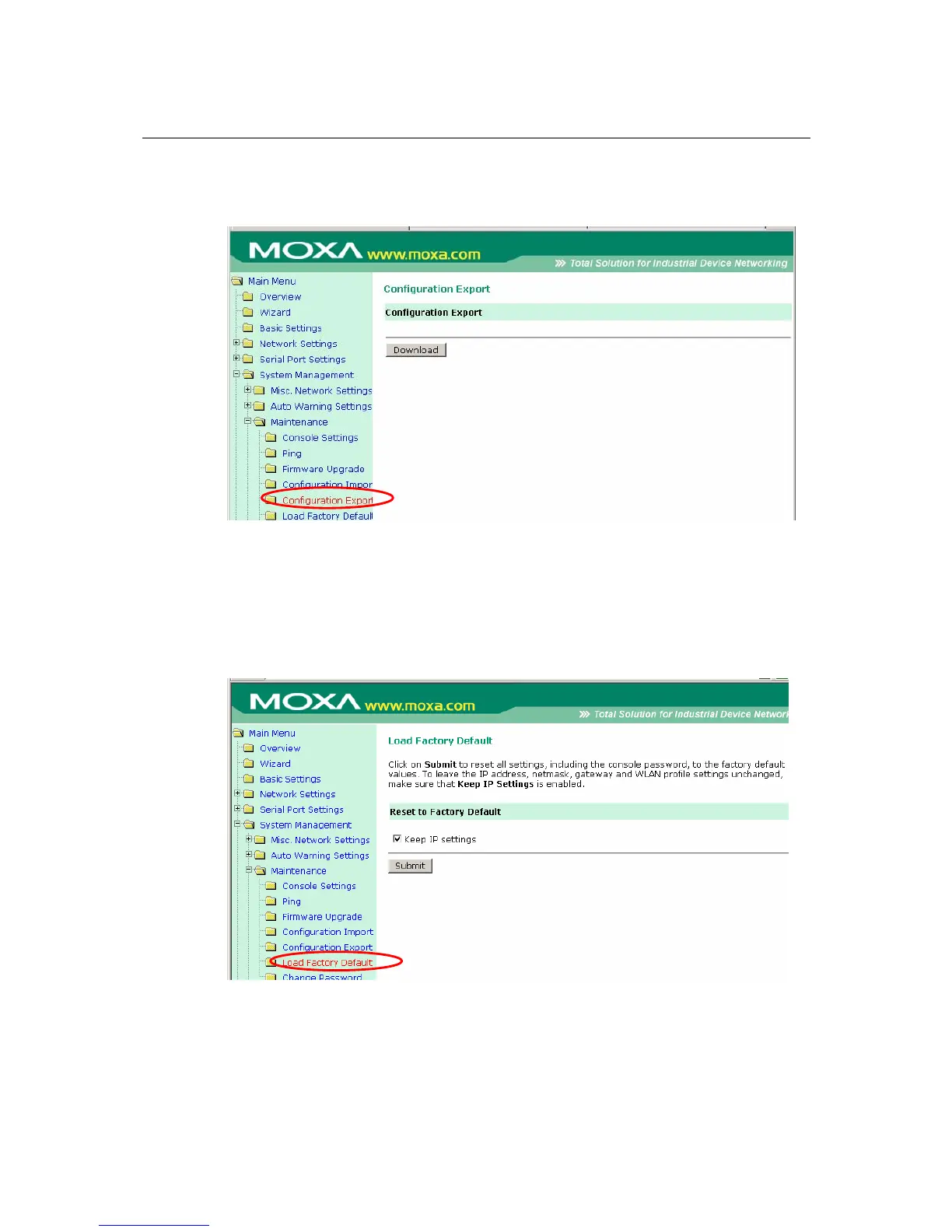

The Configuration Export page is located under Maintenance in the System Management
folder. This is where you can save the NPort’s current configuration to a file on the local host.
Click [Download] to begin the process. A window should appear asking you to open or save the
configuration text file.
System Management> Maintenance> Load Factory
Default
The Load Factory Default page is located under Maintenance in the System Management
folder. Click [Submit] to reset all settings to the factory defaults. You can preserve the NPort’s
existing IP settings (i.e., IP address, netmask, gateway, WLAN profile, and all certificates) by
making sure Keep IP settings is checked before clicking [Submit].
