NPort W2150/2250 Plus Series User’s Manual Web Console: System Monitoring
9-2
Overview
This chapter explains how to use the System Monitoring functions on the NPort web console.
These functions allow you to monitor many different aspects of operation.

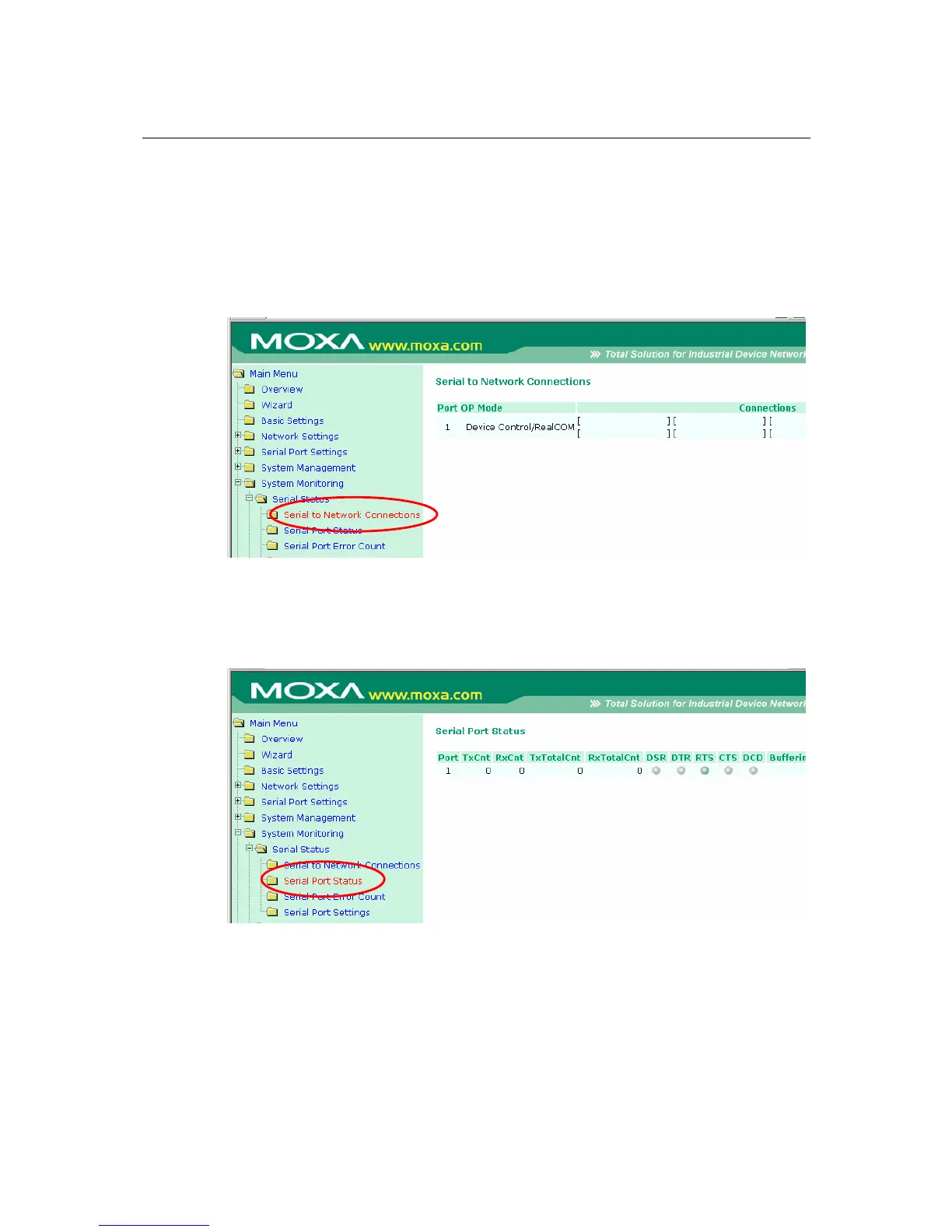

System Monitoring> Serial Status> Serial to Network
Connections
The Serial to Network Connections page is located under Serial Status in the System
Monitoring folder. On this page, you can monitor the current operation mode and host connection
status for each serial port.
System Monitoring> Serial Status> Serial Port Status
The Serial Port Status page is located under Serial Status in the System Monitoring folder. On
this page, you can monitor the signal and data transmission status for each serial port.
TxCnt: number of Tx packets (to device) for the current connection
RxCnt: number of Rx packets (from device) for the current connection
TxTotalCnt: number of Tx packets since the NPort was powered on
