NPort W2150/2250 Plus Series User’s Manual Web Console: Basic Settings
5-3
Navigating the Web Console
To open the web console, enter your device server’s IP address in the website address line. If you
are configuring the NPort for the first time over an Ethernet cable, you will use the default IP
address, 192.168.126.254.
If prompted, enter the console password. You will only be prompted for a password if you have
enabled password protection on the device server. The password will be transmitted with MD5
encryption over the Ethernet.
ATTENTION
If you have forgotten the password, you can use the reset button to load factory defaults, but this
will erase all previous configuration information.

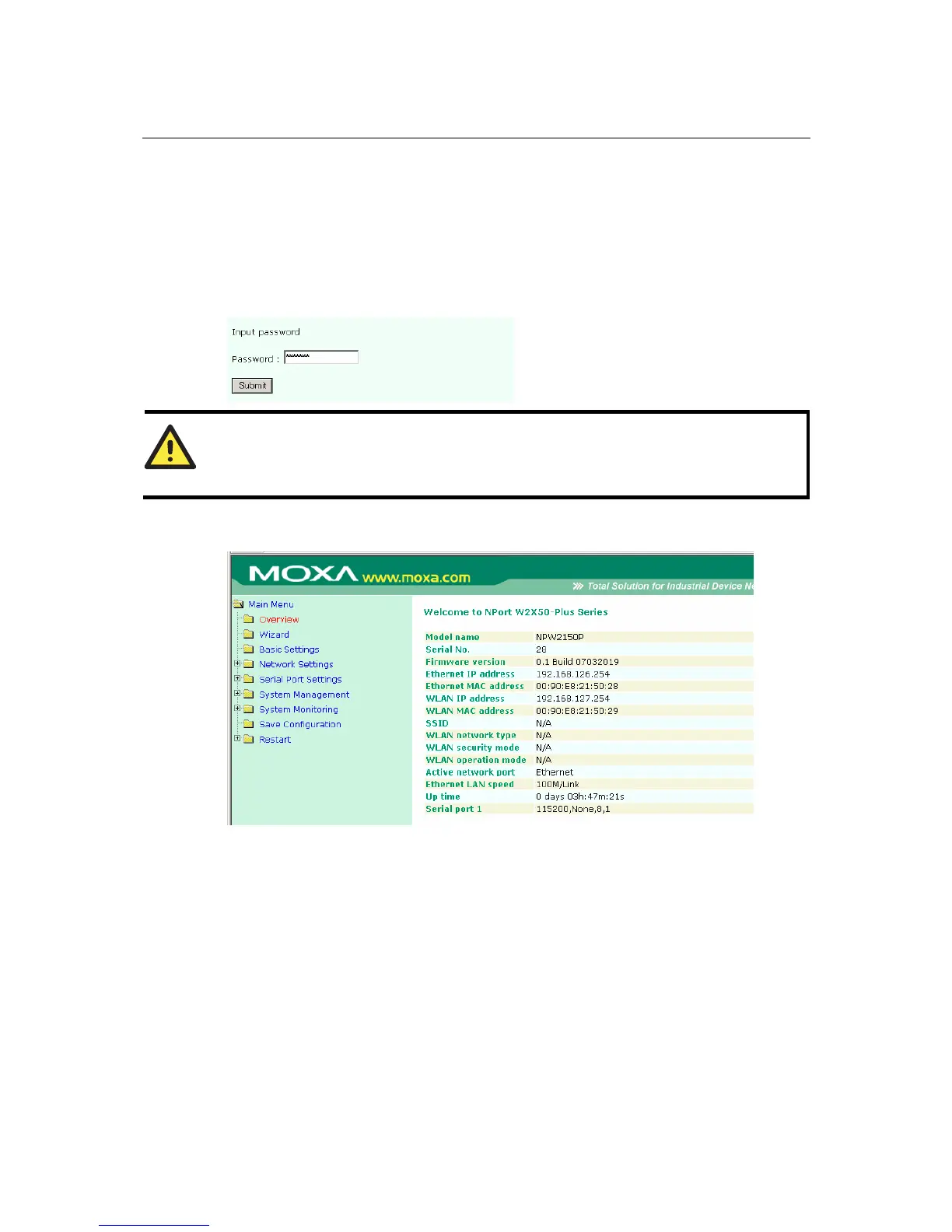

The web console will appear as shown below.
Settings are presented on pages that are organized by folder. Select the desired folder in the left
navigation panel to open that page. The page will be displayed in the main window on the right.
Certain folders can be expanded by clicking the adjacent “+” symbol.
For example, if you click Basic Settings in the navigation panel, the main window will show a
page of basic settings that you can configure.
After you have made changes on a page, you must click [Submit] in the main window before
jumping to another page. Your changes will be lost if you do not click [Submit].
After you have finished modifying the desired pages, you must save and restart the device server
for the new settings to take effect. You may complete this in one step by clicking [Save/Restart]
after you submit a change. Changes will not take effect until they are saved and the NPort is
restarted. If you restart the NPort without saving your configuration, all configuration changes will
be lost.
